Left Hand Camshaft Position(CMP) sensor

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.

Remove the oil filler cap and remove the engine appearance cover. Install the oil filler cap.

GFD135669

Courtesy of FORD MOTOR COMPANY

3.

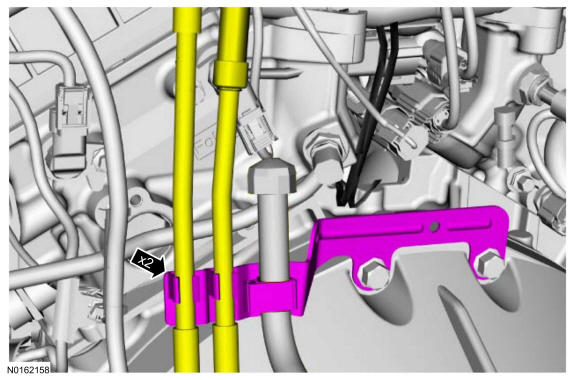

Separate fuel lines from the bracket on the upper bell housing.

GFD135854

Courtesy of FORD MOTOR COMPANY

4.

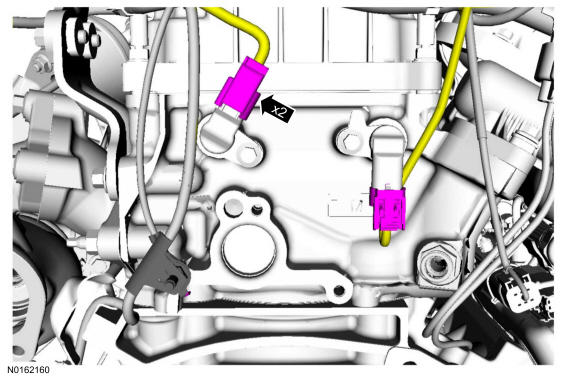

Disconnect the 2 LHCMP sensor electrical connectors.

GFD135855

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Lubricate the O-ring seal with clean engine oil.

Remove the bolts and the LHCMP sensors.
- Tighten to 10 Nm (89 lb-in).

GFD135066

Courtesy of FORD MOTOR COMPANY

Right Hand Camshaft Position(CMP) sensor

6.

Remove the oil filler cap and remove the engine appearance cover. Install the oil filler cap.

GFD135669

Courtesy of FORD MOTOR COMPANY

7.

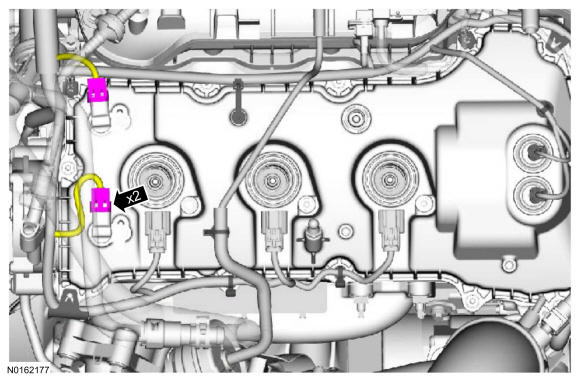

Disconnect the 2 RHCMP sensor electrical connectors.

GFD135856

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Lubricate the O-ring seal with clean engine oil.

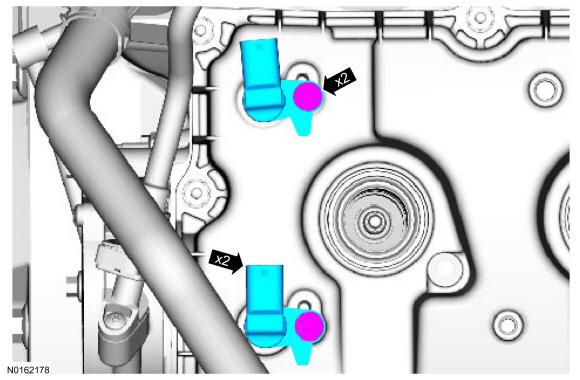

Remove the bolts and the RHCMP sensors.
- Tighten to 10 Nm (89 lb-in).

GFD135857

Courtesy of FORD MOTOR COMPANY

Installation

1.

To install, reverse the removal procedure.
