Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the steering column shrouds. Refer to Steering Column .

2.

If equipped, remove the steering column control switch. Refer to Steering Column Control Switch .

3.

Remove the steering column multifunction switch.
1. 1.

  Turn steering wheel 90 degrees left.
1. 2.

  Remove the screw(s).
1. 3.

  Remove the steering column multifunction switch.

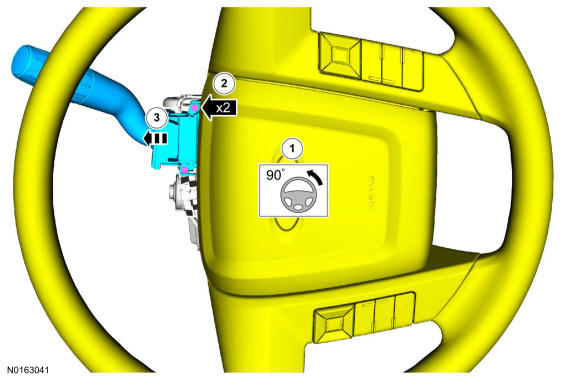

GFD134966

Courtesy of FORD MOTOR COMPANY

4.

To install, reverse the removal procedure.
