Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Expedition shown, Navigator similar.

1.

Remove the Degas bottle. Refer to Engine Cooling .

2.

Remove the hood latch. Refer to Hood Latch .

3.

Remove the hood latch release handle. Refer to Hood Latch Release Handle .

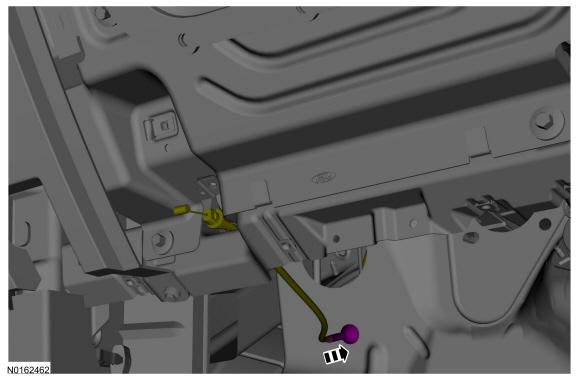

4.

Route the hood latch cable through the cowl.

GFD137832

Courtesy of FORD MOTOR COMPANY

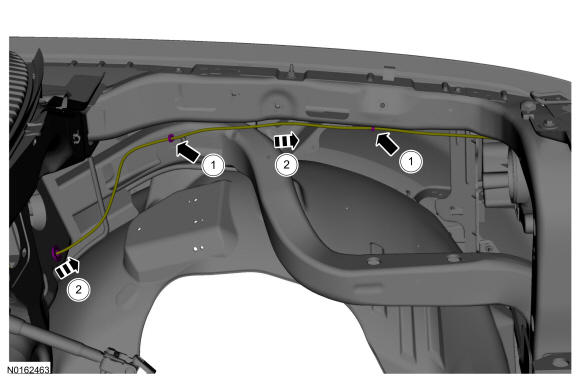

5.

Route the hood latch cable through the cowl and the engine compartment.
1. 1.

  Release the hood latch cable routing clips.
1. 2.

  Route the hood latch cable through the cowl and the engine compartment.

GFD137833

Courtesy of FORD MOTOR COMPANY

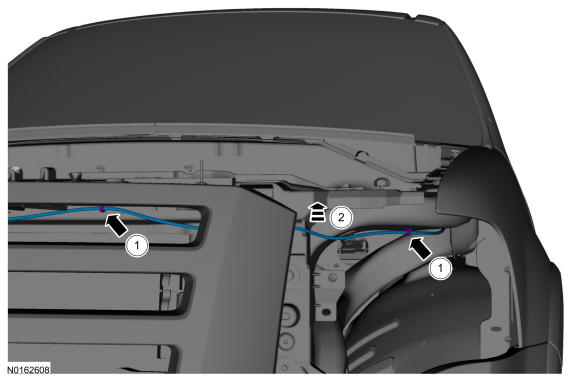

6.

Remove the hood latch cable.
1. 1.

  Release the hood latch cable routing clips.
1. 2.

  Remove the hood latch cable.

GFD137834

Courtesy of FORD MOTOR COMPANY

7.

To install, reverse the removal procedure.
