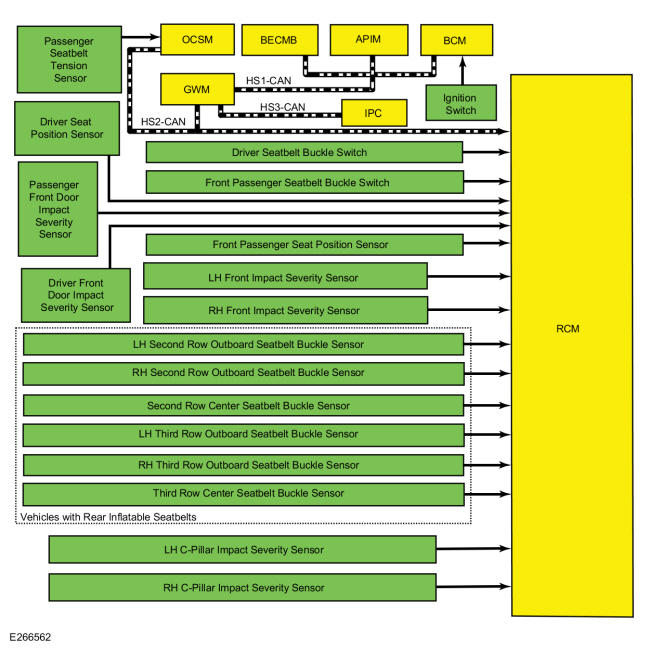

System Diagram - Supplemental Restraint System (SRS)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RCM |
| 2 |
HS2-CAN |
| 3 |
Front Passenger Seat Position Sensor |
| 4 |
HS1-CAN |
| 5 |
HS3-CAN |
| 6 |
Driver Front Door Impact Severity Sensor |
| 7 |
Driver Seatbelt Buckle Switch |
| 8 |
Front Passenger Seatbelt Buckle Switch |
| 9 |
RH Front Impact Severity Sensor |
| 10 |
RH C-Pillar Impact Severity Sensor |
| 11 |
Ignition Switch |
| 12 |
OCSM |
| 13 |
Driver Seat Position Sensor |
| 14 |
LH Front Impact Severity Sensor |
| 15 |
GWM |
| 16 |
LH Second Row Outboard Seatbelt Buckle Sensor |
| 17 |
RH Second Row Outboard Seatbelt Buckle Sensor |
| 18 |
Vehicles with Rear Inflatable Seatbelts |
| 19 |
APIM |
| 20 |
BECMB |
| 21 |
BCM |
| 22 |
IPC |
| 23 |
Passenger Seatbelt Tension Sensor |
| 24 |
Passenger Front Door Impact Severity Sensor |
| 25 |
Second Row Center Seatbelt Buckle Sensor |
| 26 |
LH Third Row Outboard Seatbelt Buckle Sensor |
| 27 |
RH Third Row Outboard Seatbelt Buckle Sensor |
| 28 |
Third Row Center Seatbelt Buckle Sensor |
| 29 |
LH C-Pillar Impact Severity Sensor |

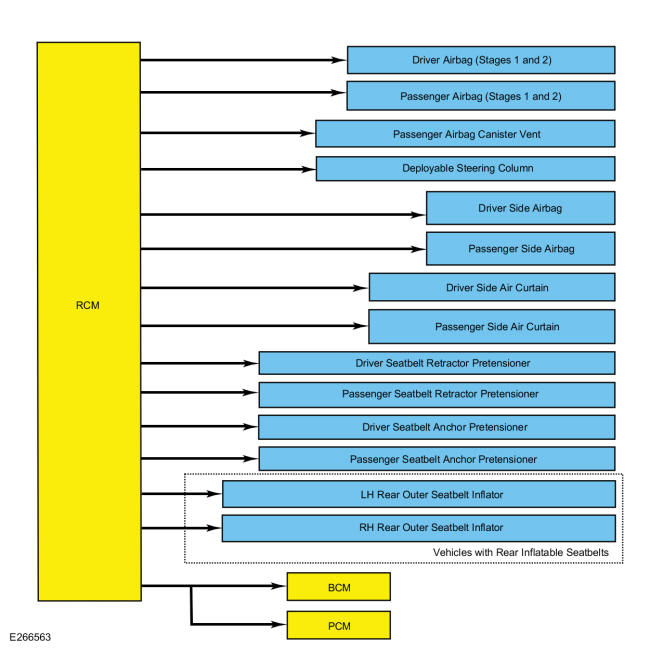

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Passenger Seatbelt Retractor Pretensioner |
| 2 |
BCM |
| 3 |
RH Rear Outer Seatbelt Inflator |
| 4 |
LH Rear Outer Seatbelt Inflator |
| 5 |
Passenger Seatbelt Anchor Pretensioner |
| 6 |
Driver Seatbelt Anchor Pretensioner |
| 7 |
Driver Seatbelt Retractor Pretensioner |
| 8 |
Passenger Side Air Curtain |
| 9 |
Driver Side Air Curtain |
| 10 |
Passenger Side Airbag |
| 11 |
Driver Side Airbag |
| 12 |
Deployable Steering Column |
| 13 |
Passenger Airbag Canister Vent |
| 14 |
Passenger Airbag (Stages 1 and 2) |
| 15 |
Driver Airbag (Stages 1 and 2) |
| 16 |
RCM |
| 17 |
Vehicles with Rear Inflatable Seatbelts |
| 18 |
PCM |
