Drive Pinion Seal: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive pinion flange. Refer to: Drive Pinion Flange .

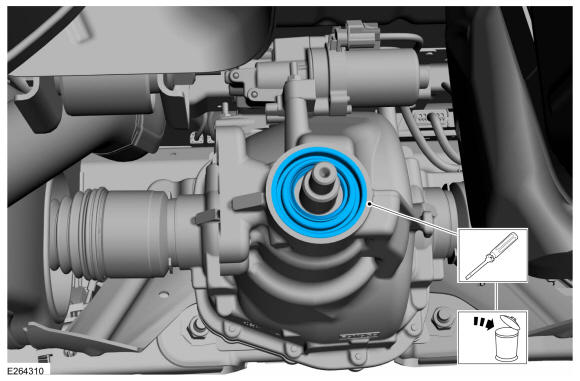

- Using a flat blade screwdriver, remove and discard the drive pinion seal. Use the General Equipment: Flat-Bladed Screwdriver.

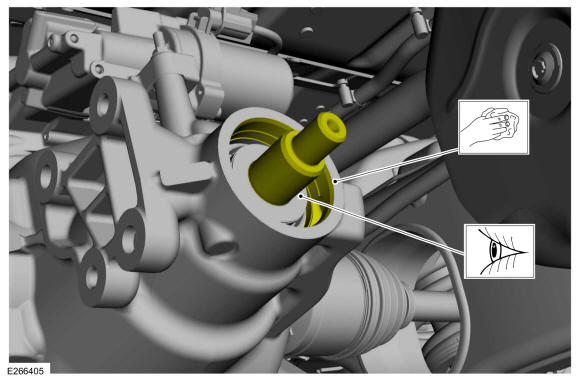

- lean and inspect the pinion flange mating surfaces and pinion seal surface.
