Drive Pinion Seal: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

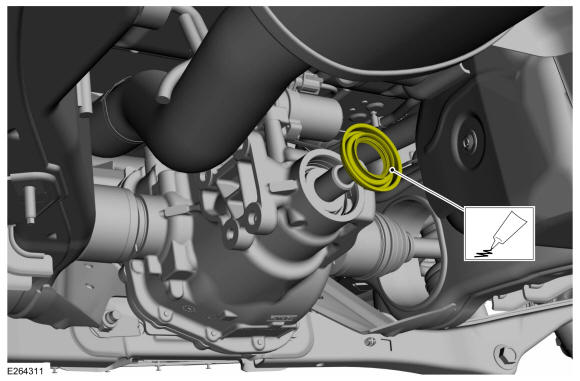

- Lubricate the new drive pinion seal lip with grease.
Material
: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

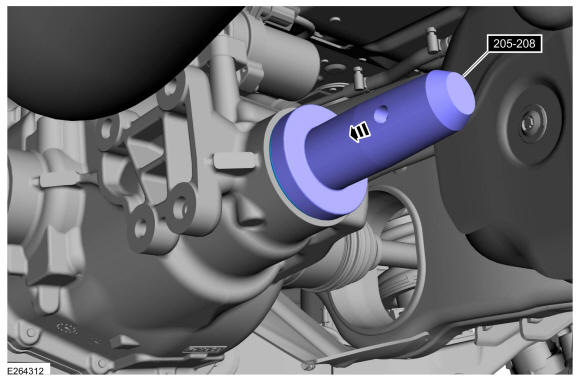

- Using the special tool, install the new drive pinion seal. Use Special Service Tool: 205-208 (T83T-4676-A) Installer, Drive Pinion Oil Seal.
- Install the drive pinion flange. Refer to: Drive Pinion Flange .
