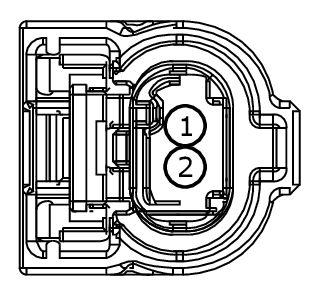

Connector End View C1029 - Evaporative Emission (EVAP) Purge Valve
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
EVAPORATIVE EMISSION (EVAP) PURGE VALVE
COLOR
HARNESS
12C508
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) | |
| 2 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1469 |
Service Part Number: GU2Z-14S411-KA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Side Impact Sensor - Transfer Case Temperature Sensor - Transmission Fluid Temperature Solenoid - Variable Oil Pump Control |
