Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the thermostat housing. For additional information, refer to Thermostat Housing .
- 2.
Remove the cooling fan motor and shroud. For additional information, refer to Cooling Fan Motor and Shroud .
- 3.NOTE: Intake manifold removed for clarity.

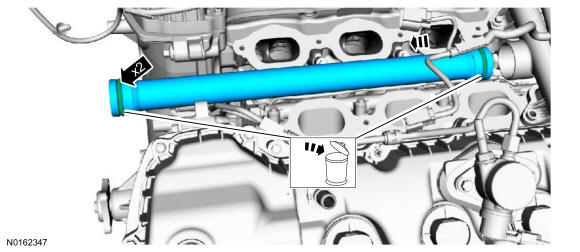

Remove the coolant inlet pipe.
- Remove and discard the O-ring seals.
- 4.

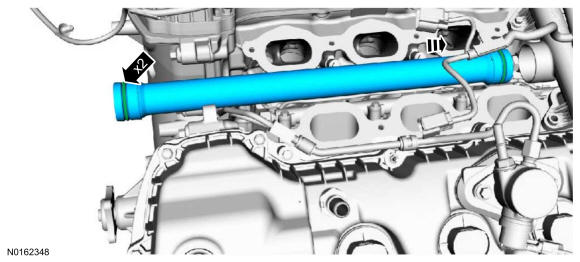

To install, reverse the removal procedure.- Install a new O-ring seal and lubricate them with clean engine coolant.
