Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When servicing the headlamp washer pump, be careful not to damage the headlamp washer pump seal.

NOTE: Do not operate the headlamp washer pump before filling the washer reservoir. Failure to do so may result in premature pump failure.

1.

Remove the battery tray. Refer to Battery, Mounting and Cables .

2.

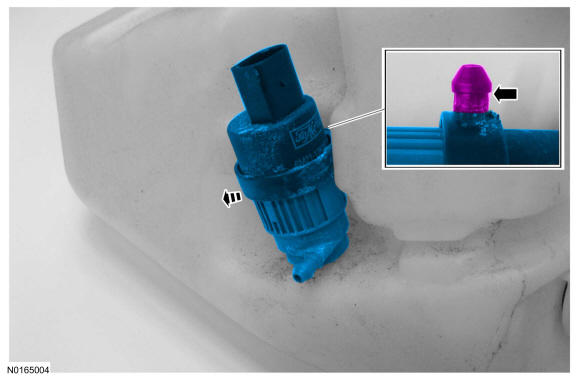

Release the retainer and remove the washer pump.

Courtesy of FORD MOTOR COMPANY
