Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the steering column shrouds. Refer to Steering Column .

2.

Remove the steering column control switch.
1. 1.

  Turn steering wheel 90 degrees left.
1. 2.

  Remove the screw.
1. 3.

  Release the steering column control switch tabs.
1. 4.

  Remove the steering column control switch.

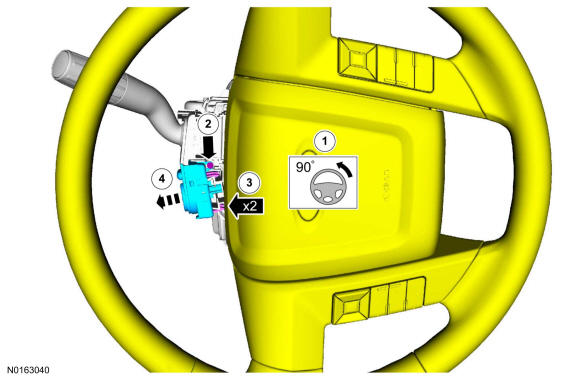

GFD134965

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
