Turn Signal/Stop/Hazard Lamps

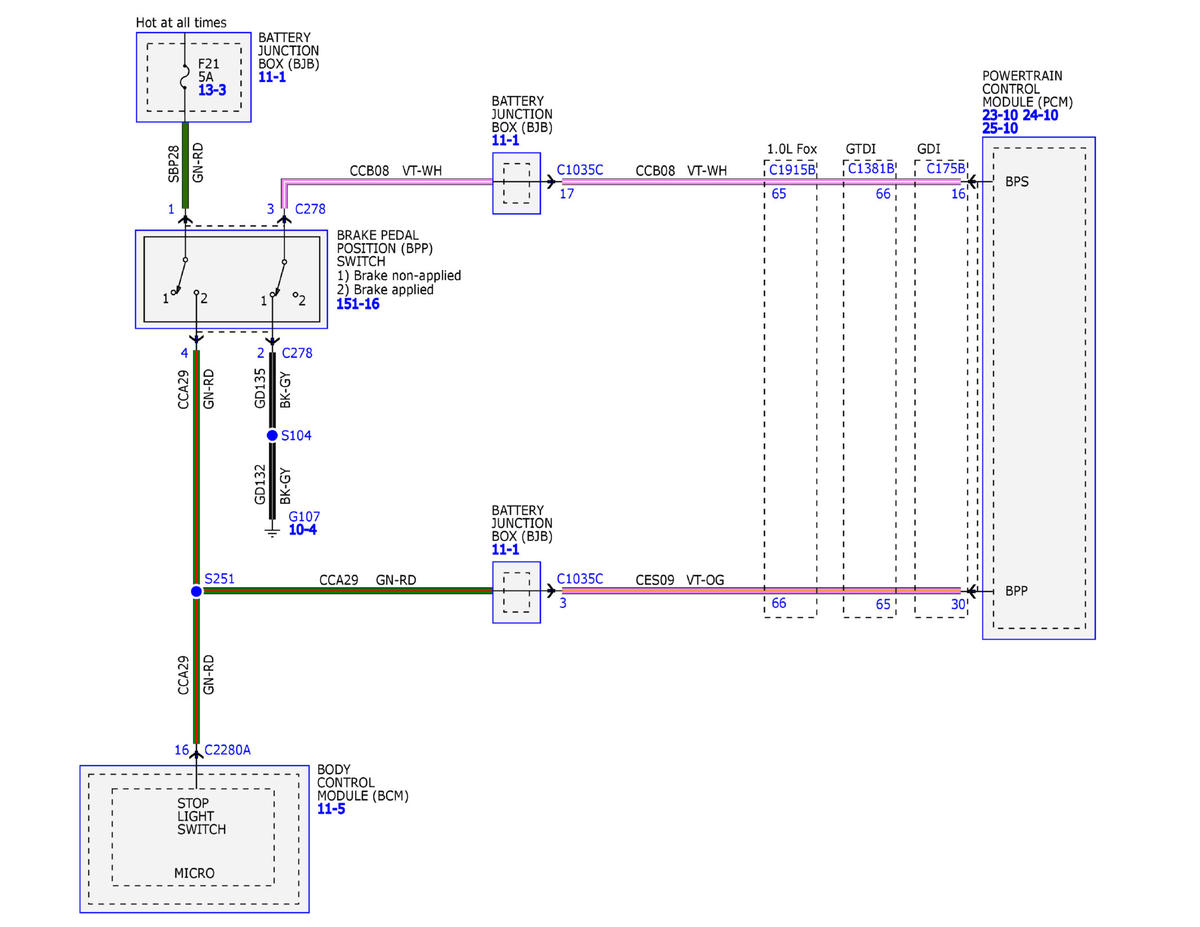

Fig 1: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (1 Of 7)
Courtesy of FORD MOTOR COMPANY

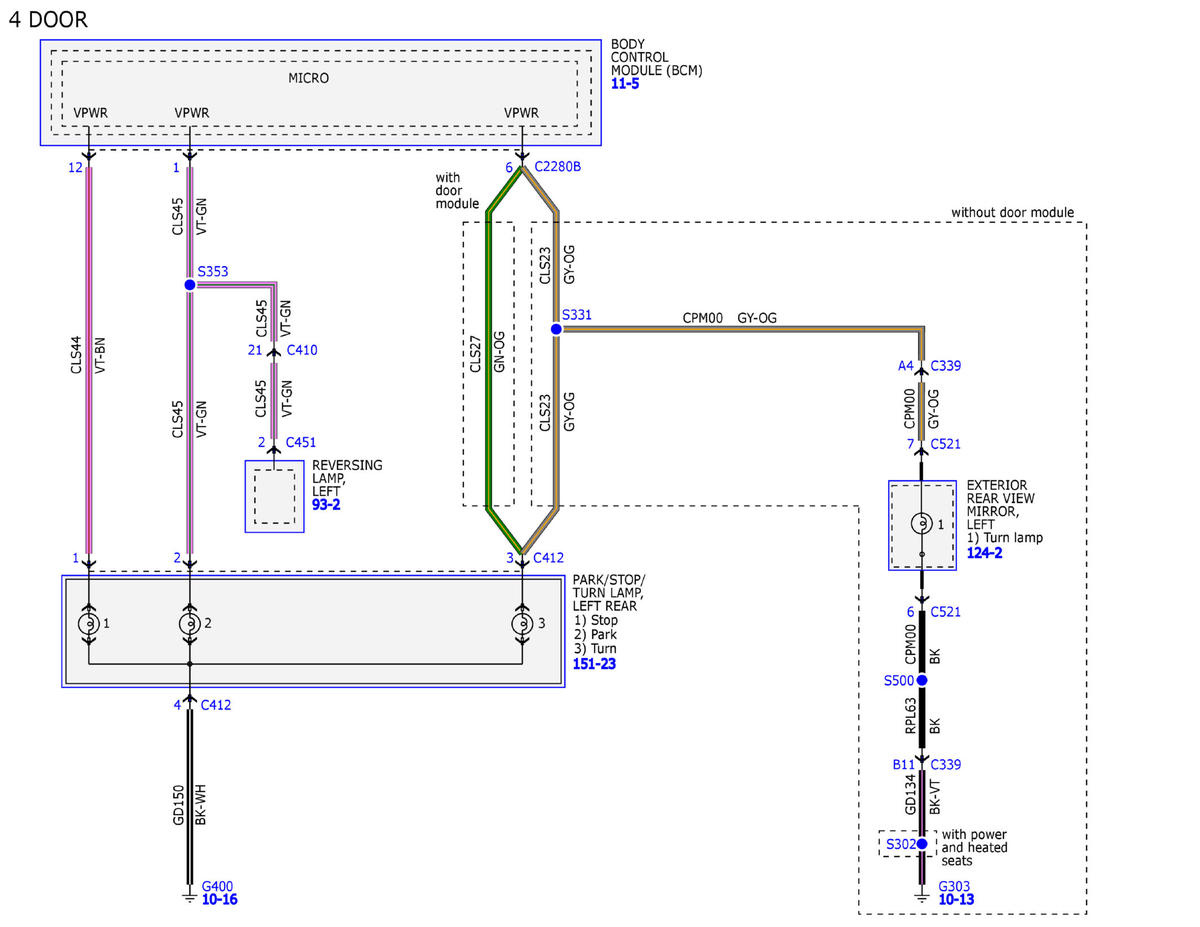

Fig 2: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (2 Of 7)
Courtesy of FORD MOTOR COMPANY

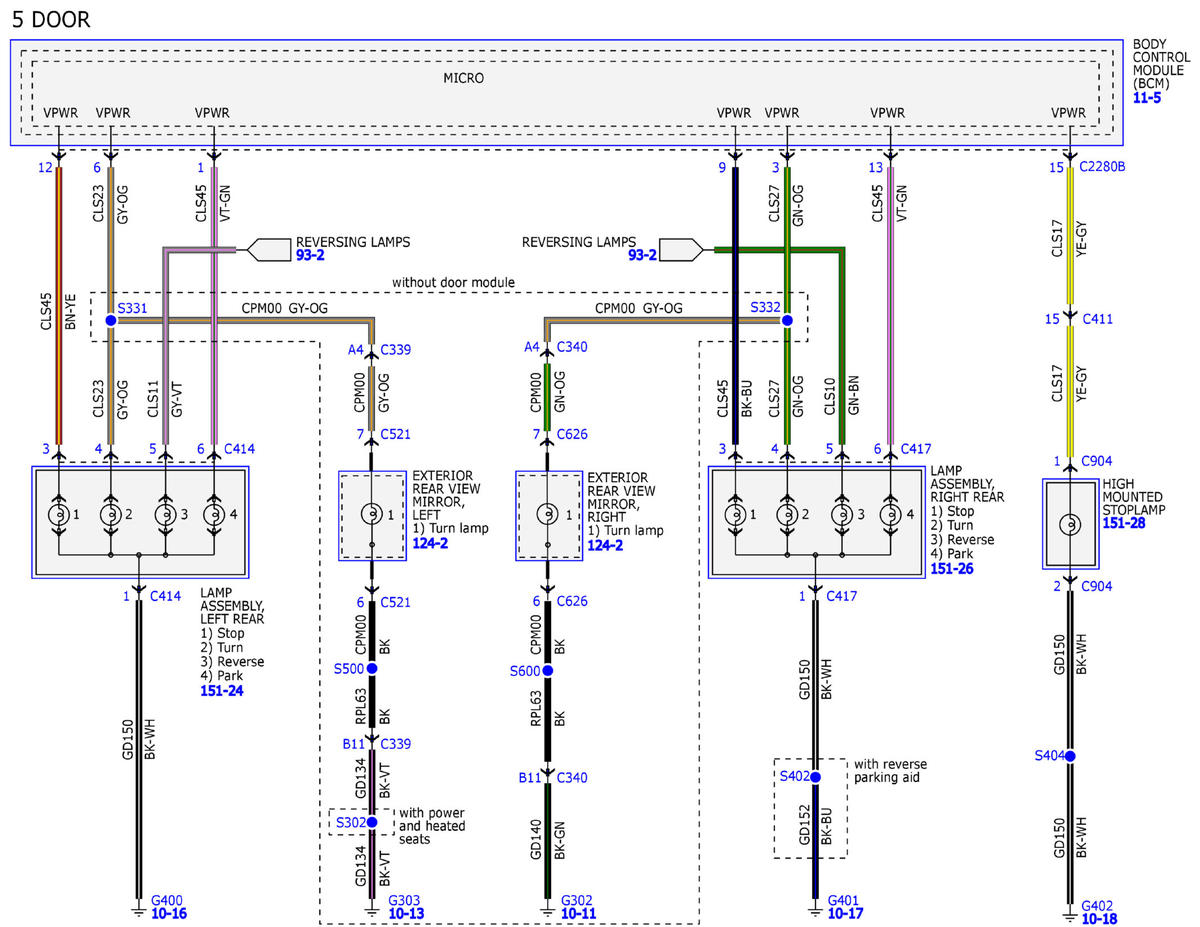

Fig 3: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (3 Of 7)
Courtesy of FORD MOTOR COMPANY

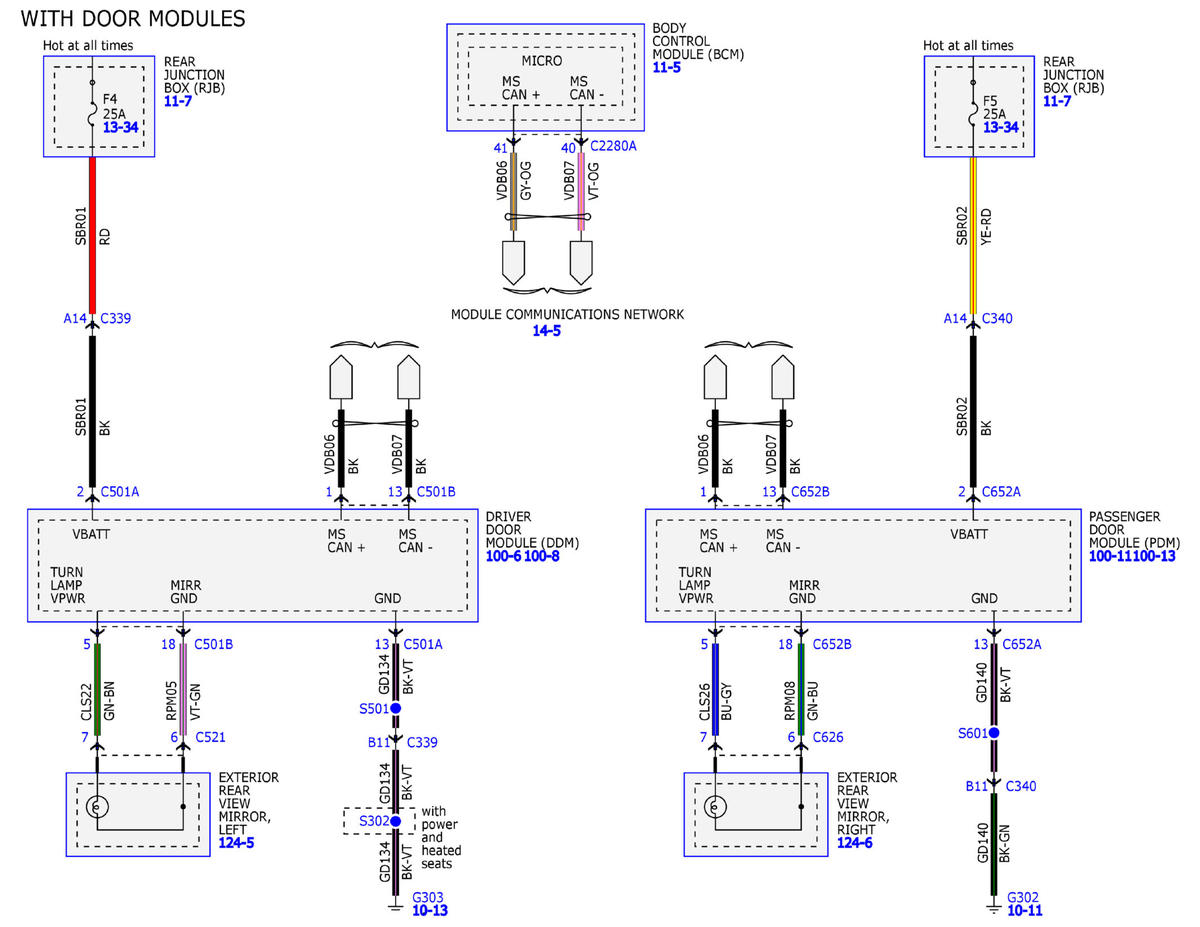

Fig 4: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (4 Of 7)
Courtesy of FORD MOTOR COMPANY

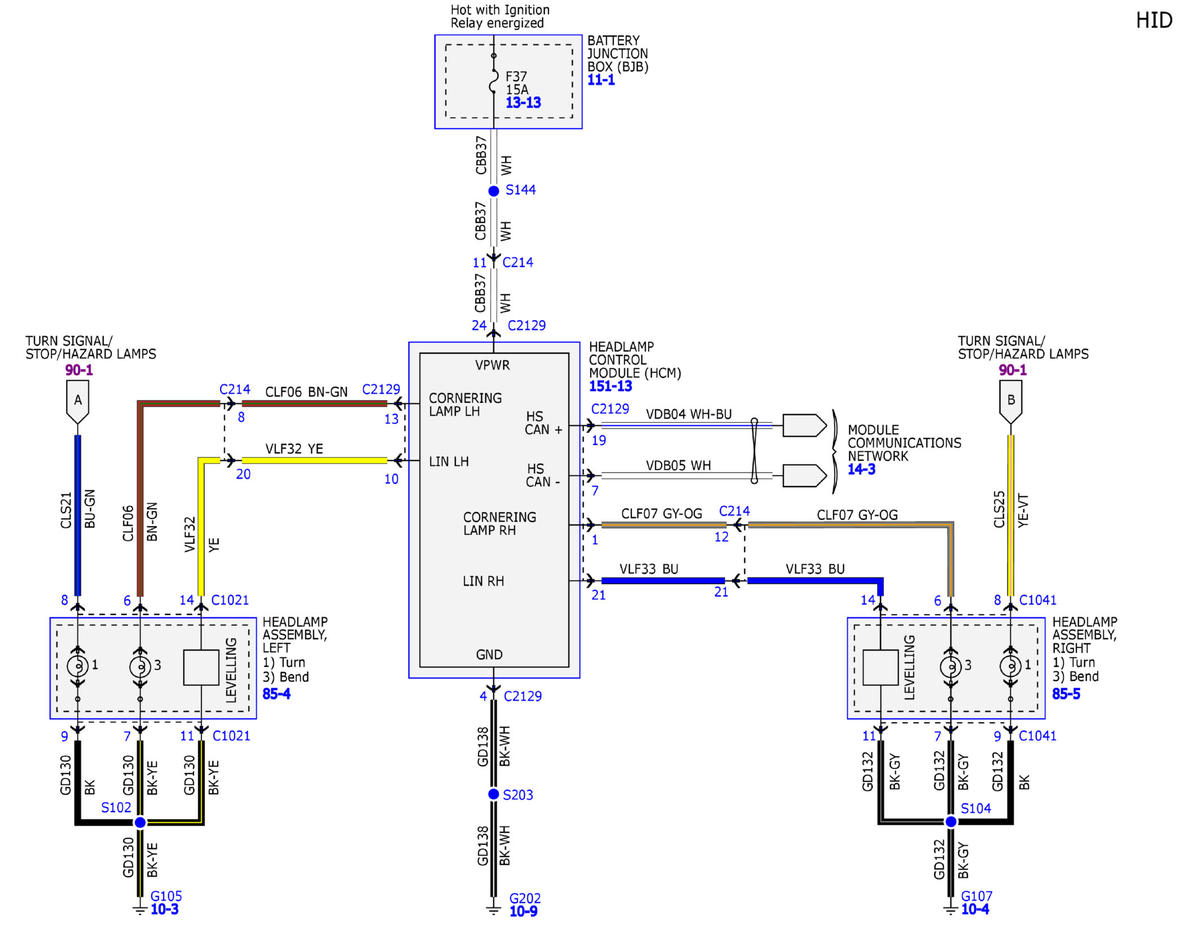

Fig 5: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (5 Of 7)
Courtesy of FORD MOTOR COMPANY

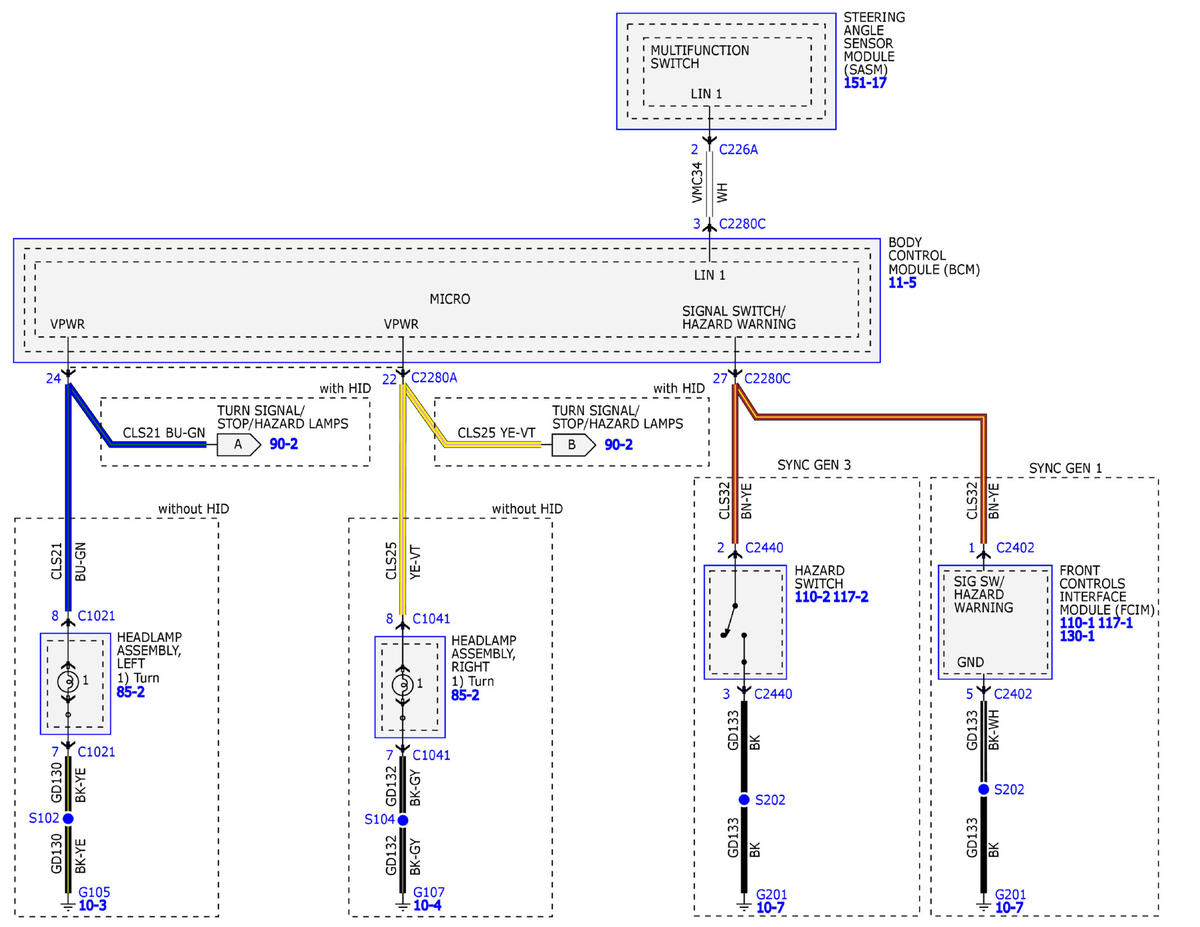

Fig 6: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (6 Of 7)
Courtesy of FORD MOTOR COMPANY

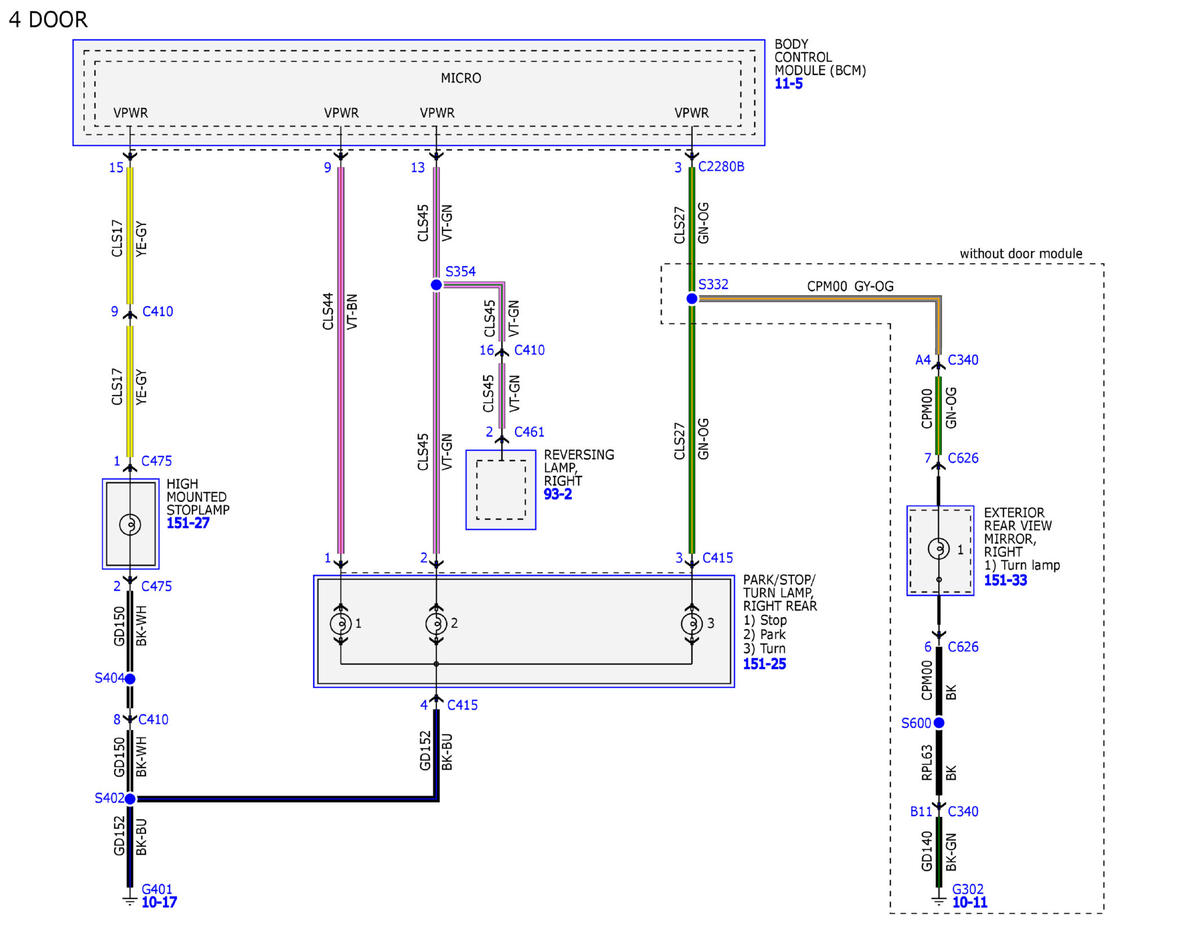

Fig 7: Turn Signal Lamps/Stop Lamps/Hazard Lamps System Wiring Diagrams (7 Of 7)
Courtesy of FORD MOTOR COMPANY
