Transmission Controls - 6F15

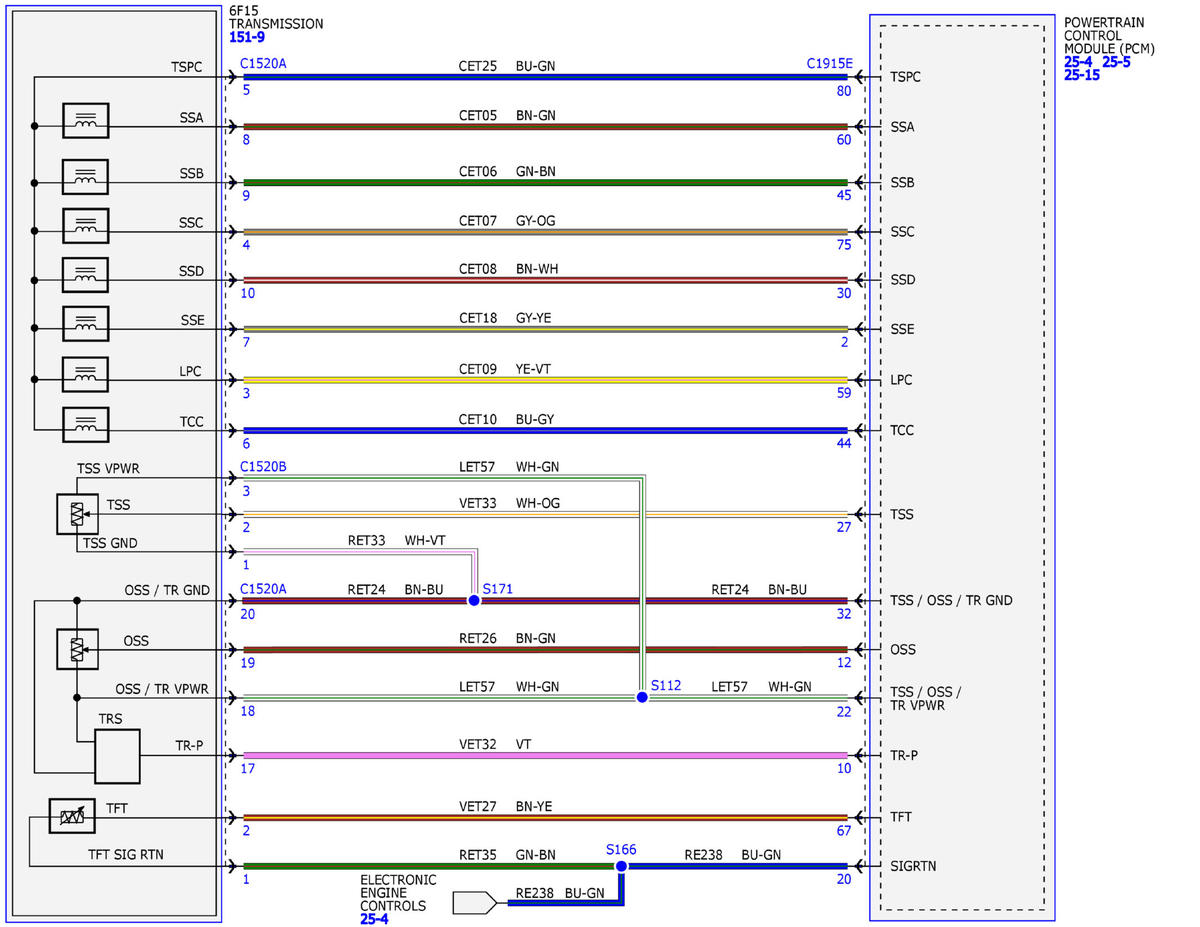

Fig 1: Transmission Controls System Wiring Diagrams (1 Of 3) (6F15)
GFDW100287Courtesy of FORD MOTOR COMPANY

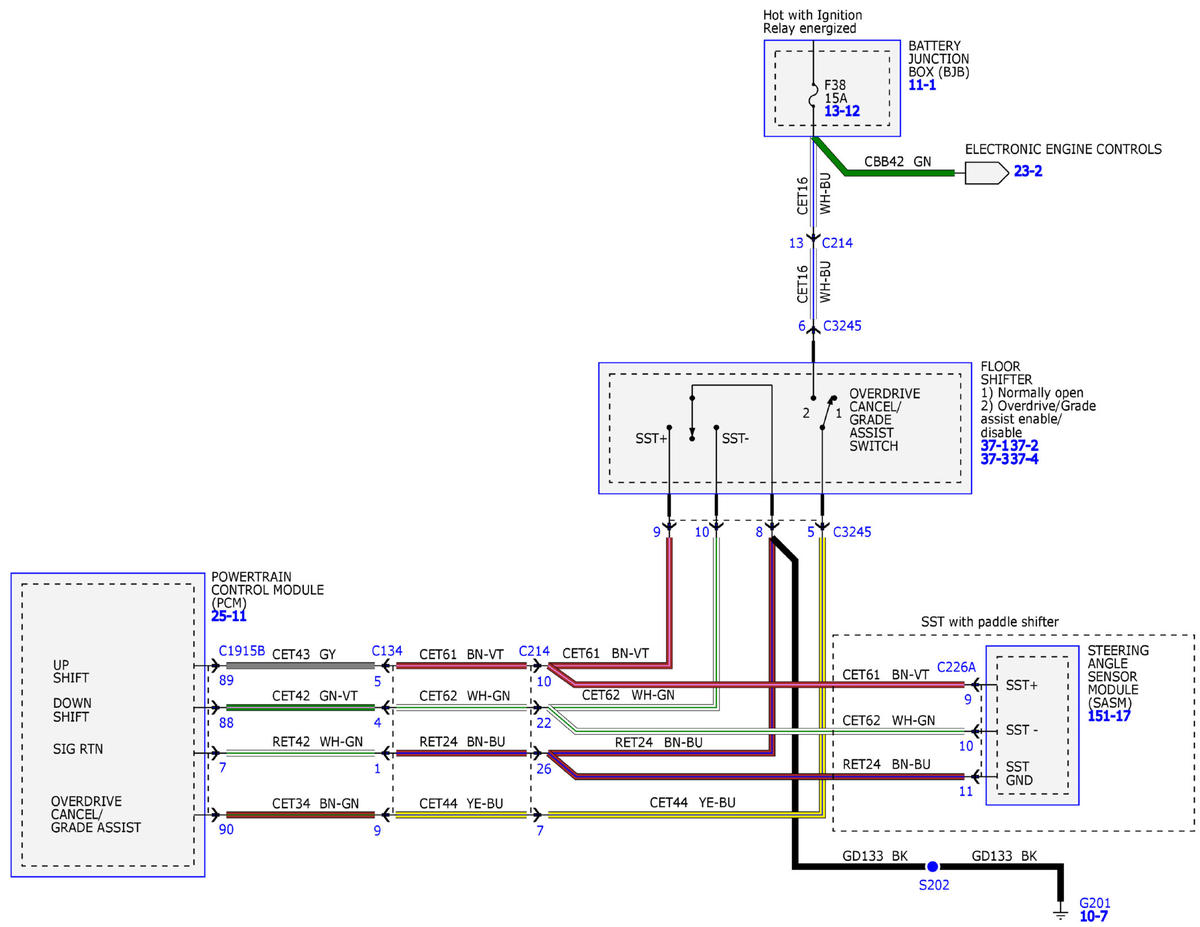

Fig 2: Transmission Controls System Wiring Diagrams (2 Of 3) (6F15)
GFDW100288Courtesy of FORD MOTOR COMPANY

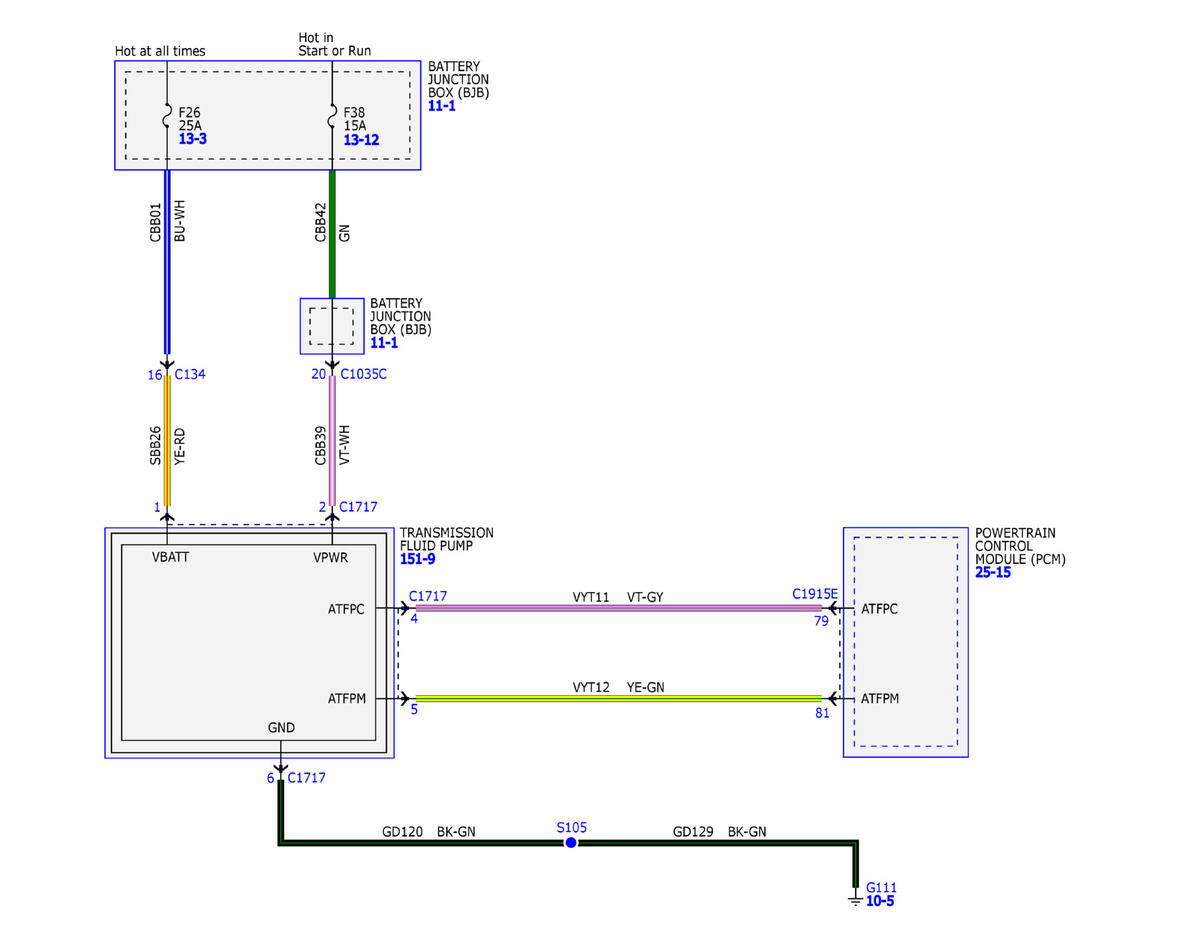

Fig 3: Transmission Controls System Wiring Diagrams (3 Of 3) (6F15)
GFDW100289Courtesy of FORD MOTOR COMPANY
