Shift Interlock
Shift Interlock

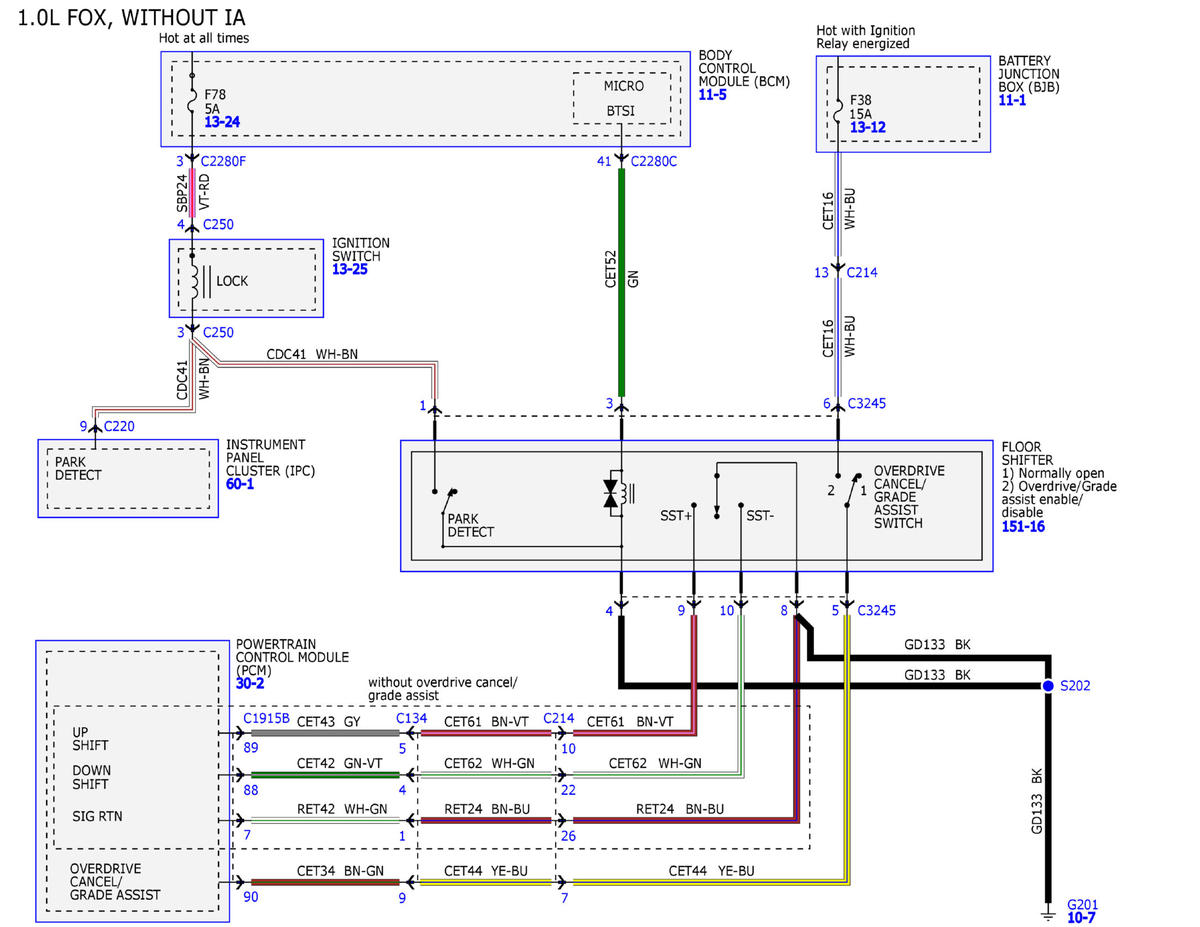

Fig 1: Shift Interlock System Wiring Diagrams (1 Of 4)
Courtesy of FORD MOTOR COMPANY

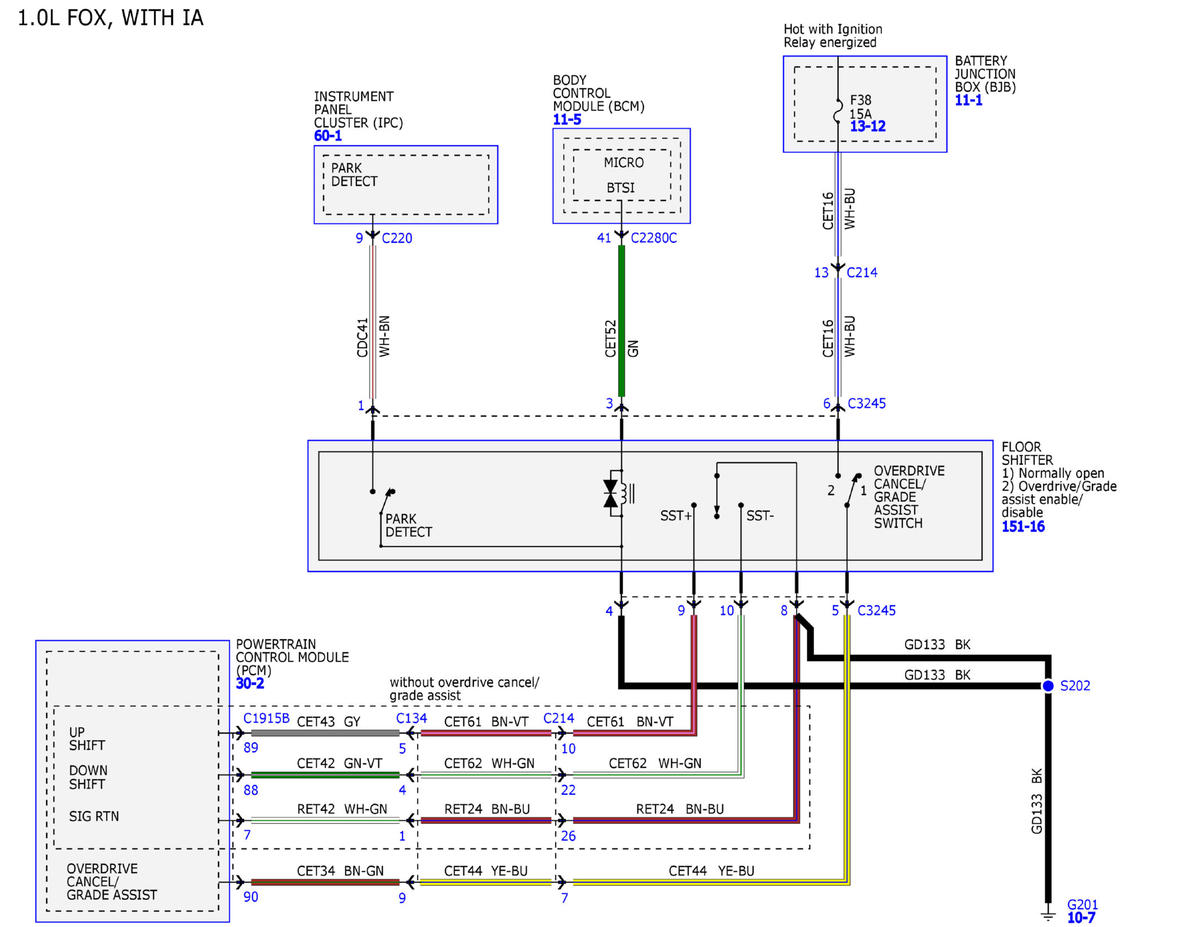

Fig 2: Shift Interlock System Wiring Diagrams (2 Of 4)
Courtesy of FORD MOTOR COMPANY

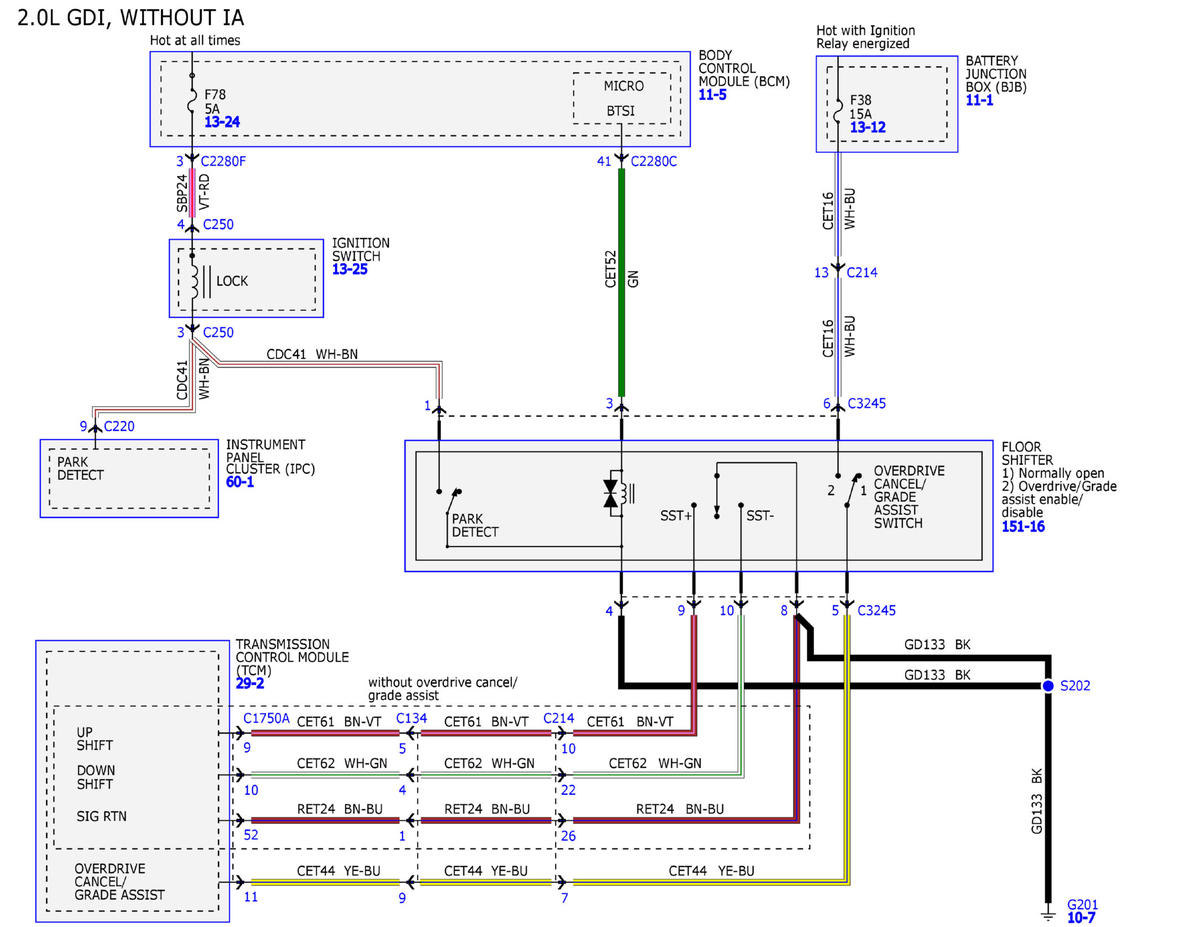

Fig 3: Shift Interlock System Wiring Diagrams (3 Of 4)
Courtesy of FORD MOTOR COMPANY

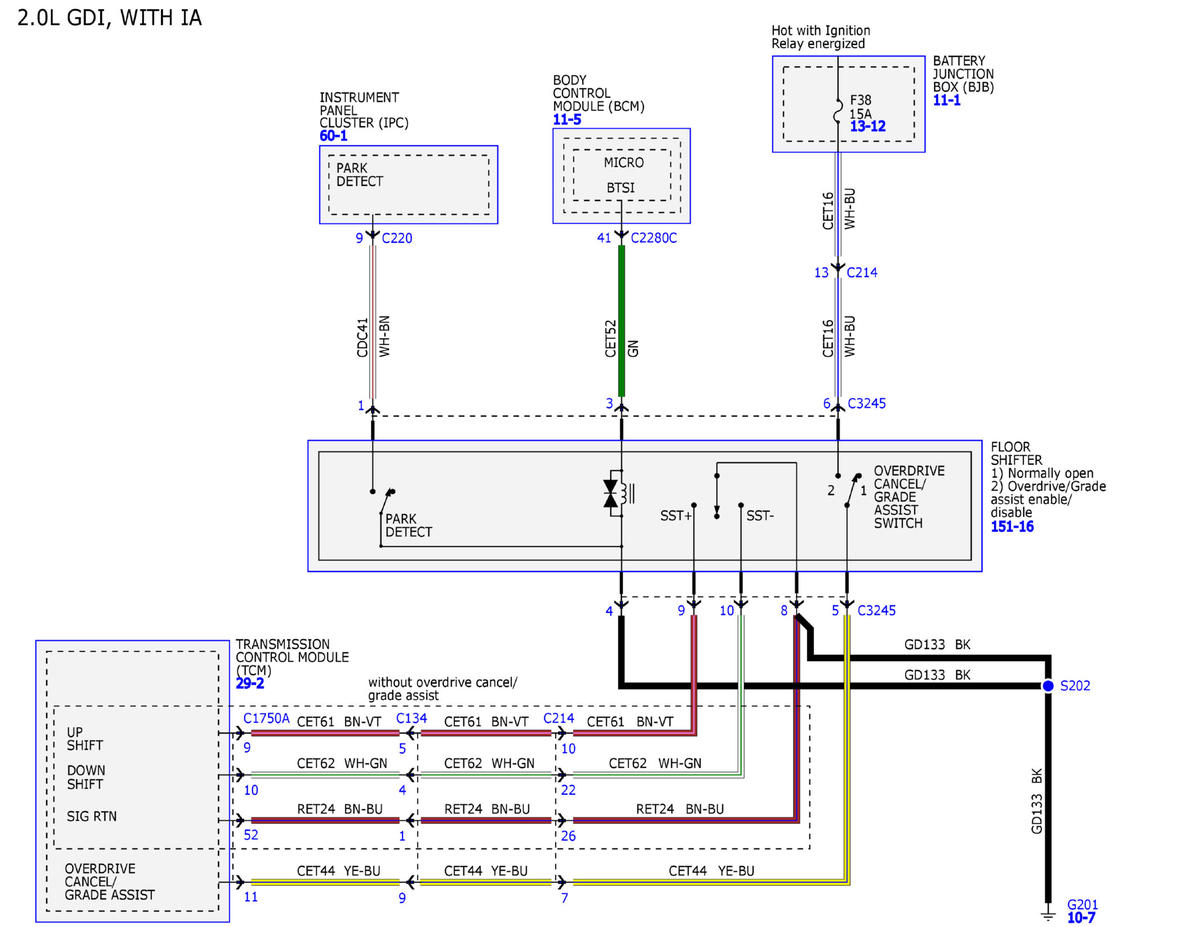

Fig 4: Shift Interlock System Wiring Diagrams (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
