Electronic Engine Controls - 2.0L GTDI

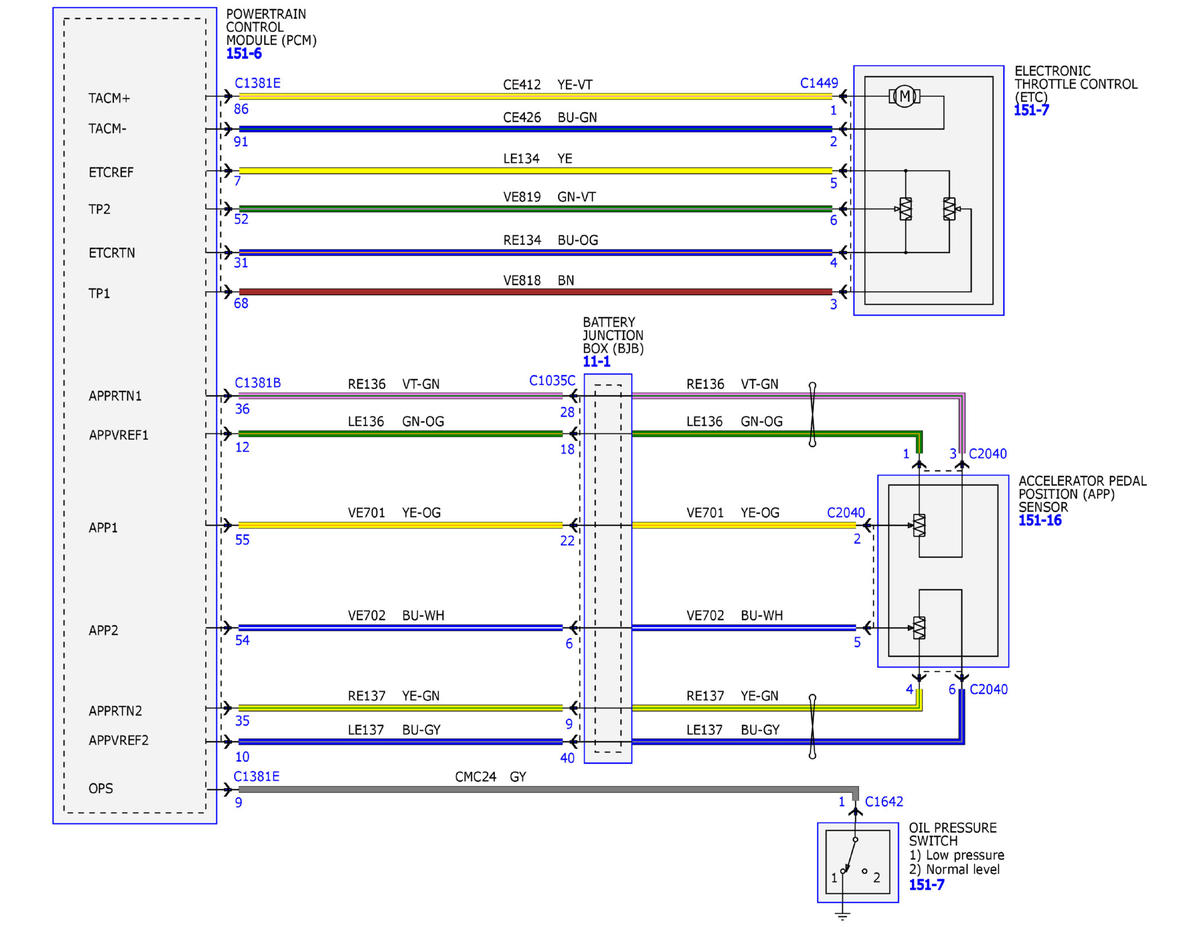

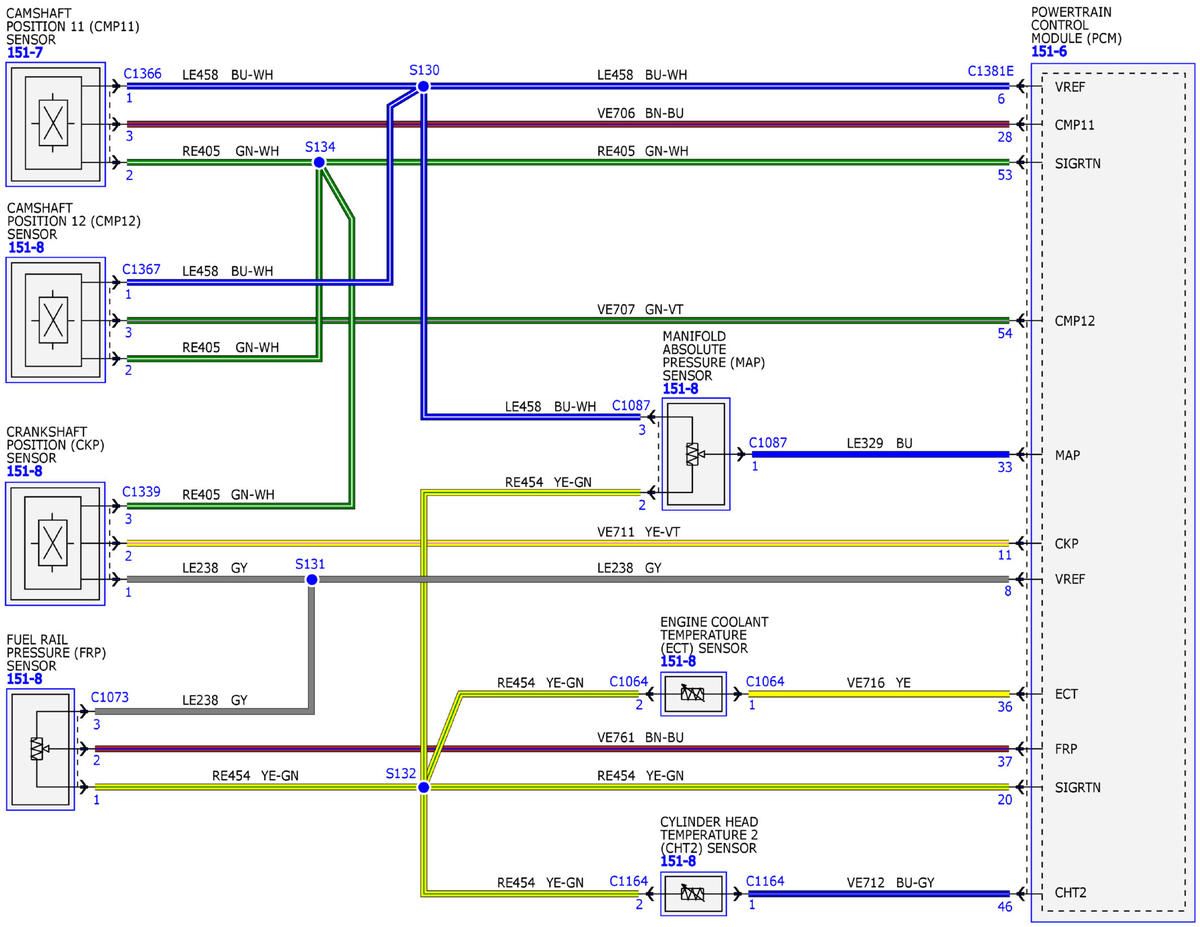

Fig 1: Electronic Engine Controls System Wiring Diagrams (1 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

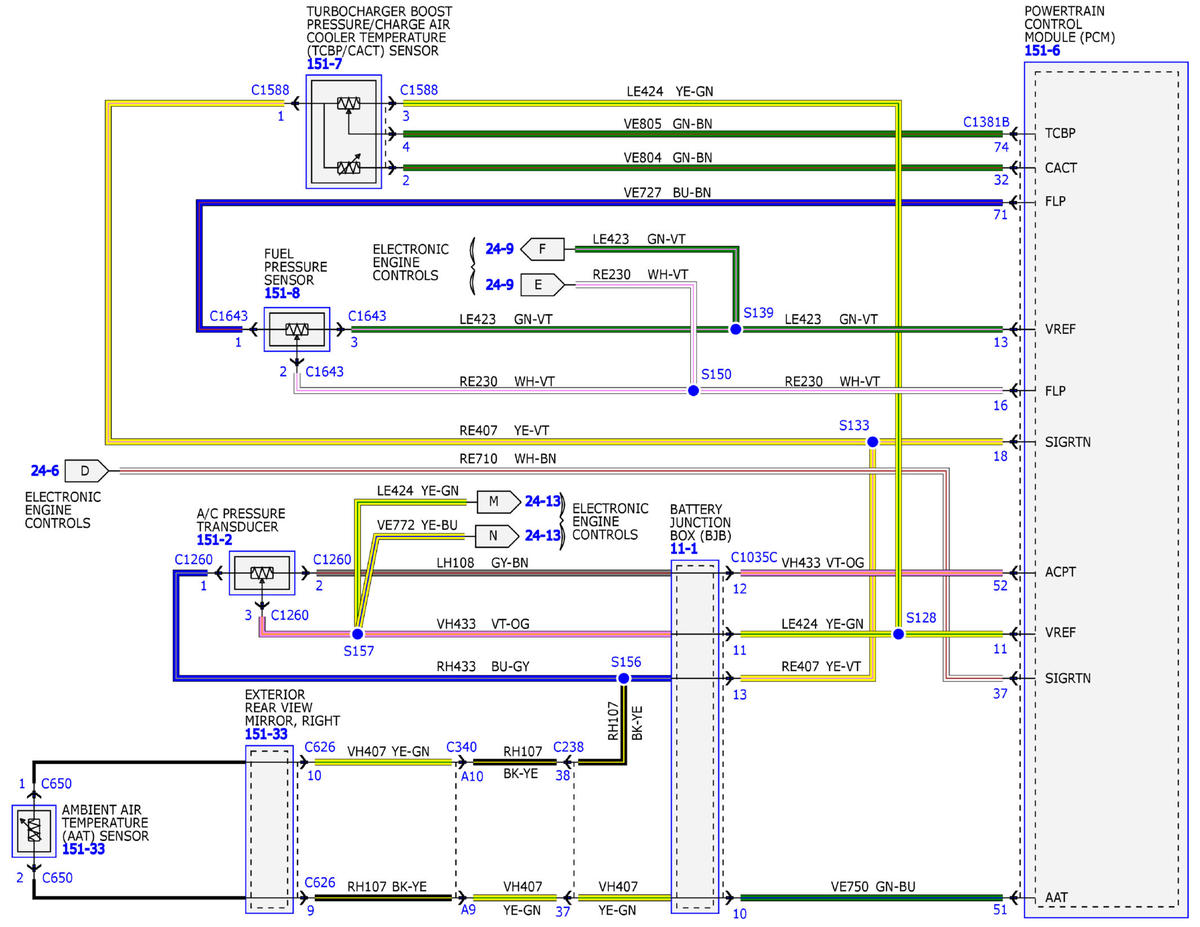

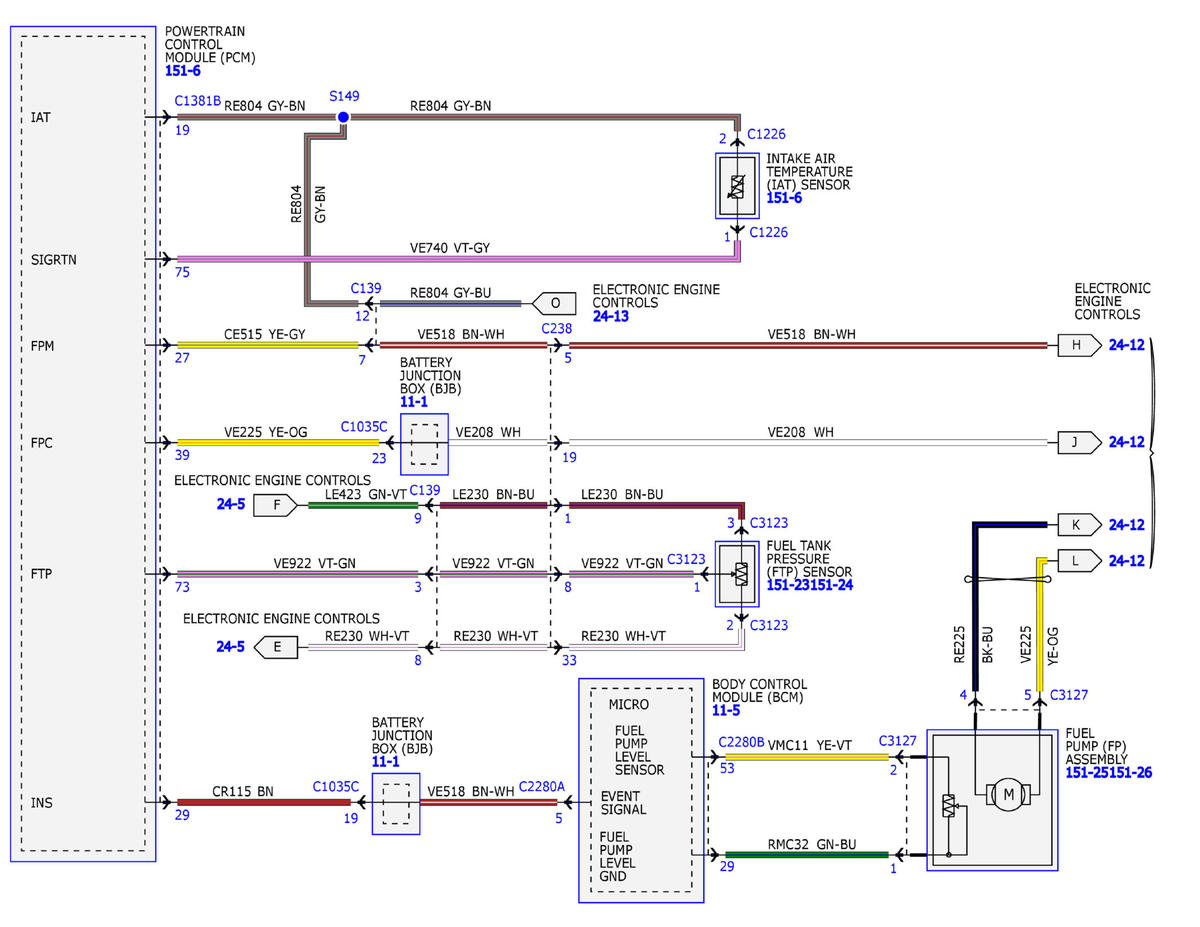

Fig 2: Electronic Engine Controls System Wiring Diagrams (2 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

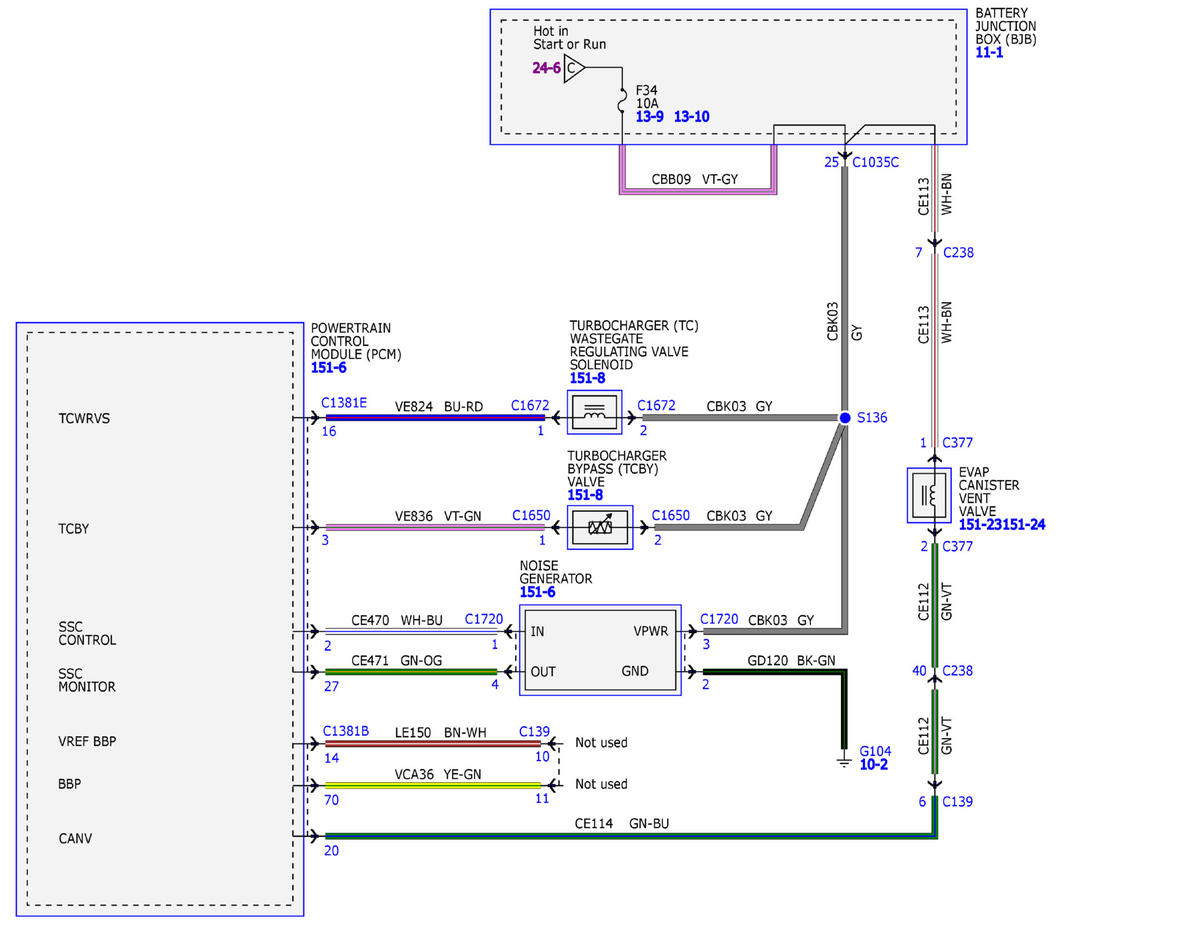

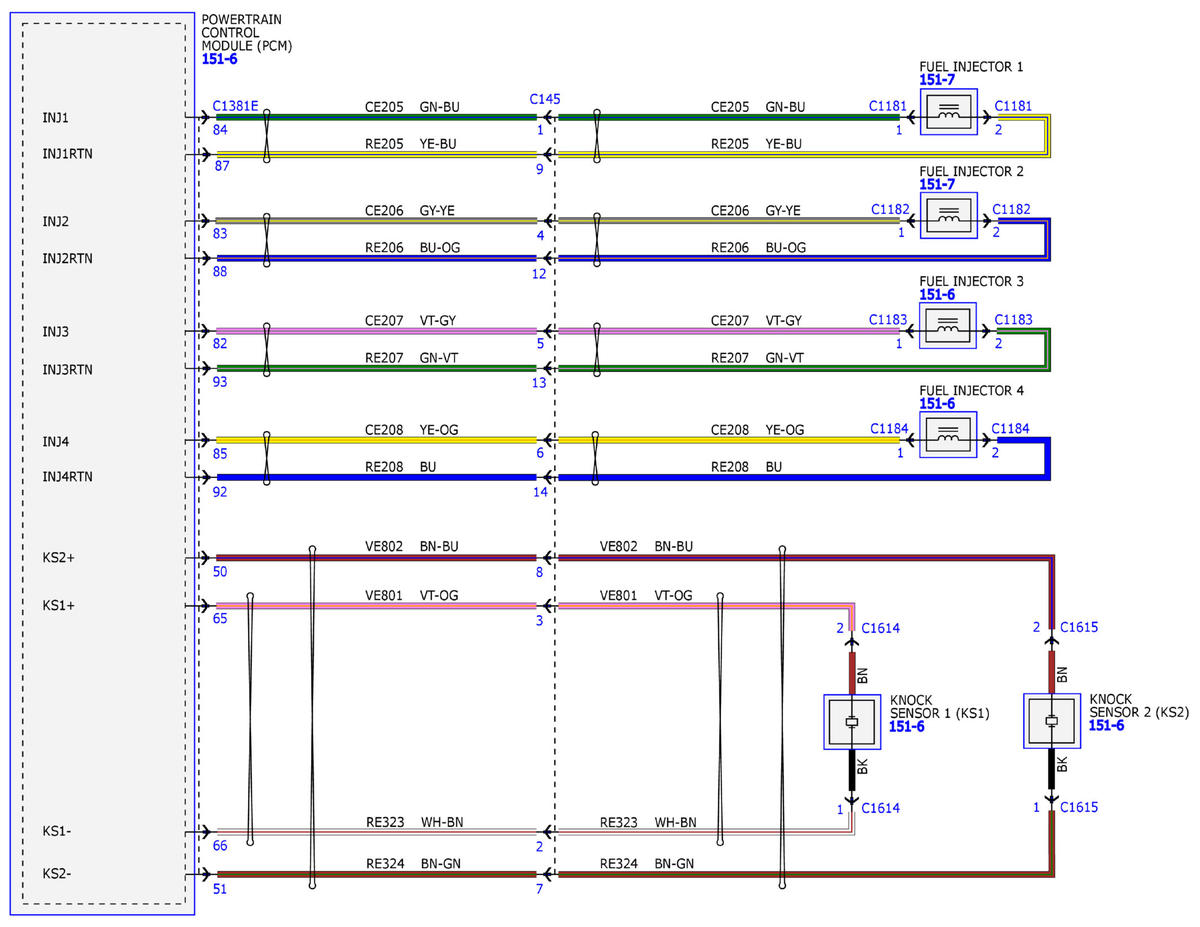

Fig 3: Electronic Engine Controls System Wiring Diagrams (3 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

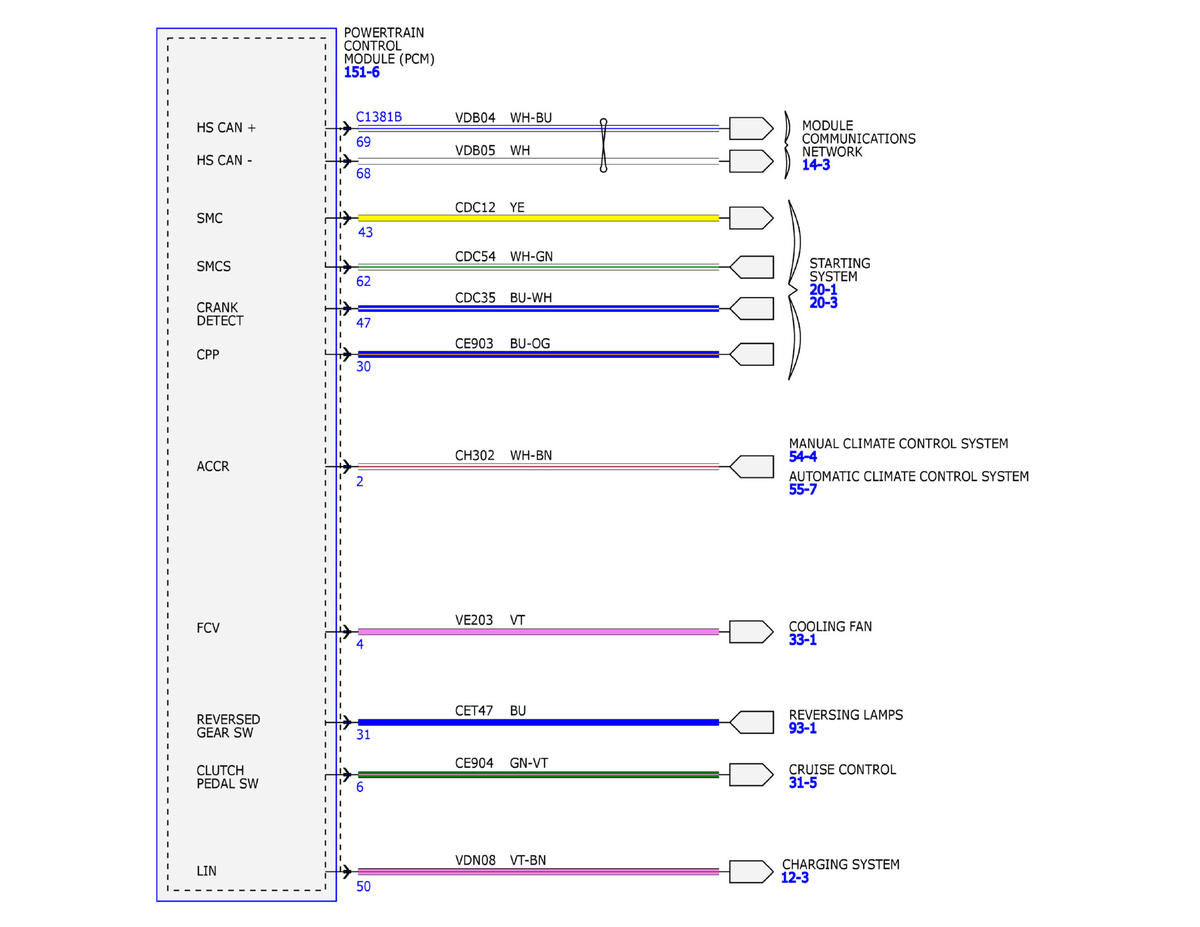

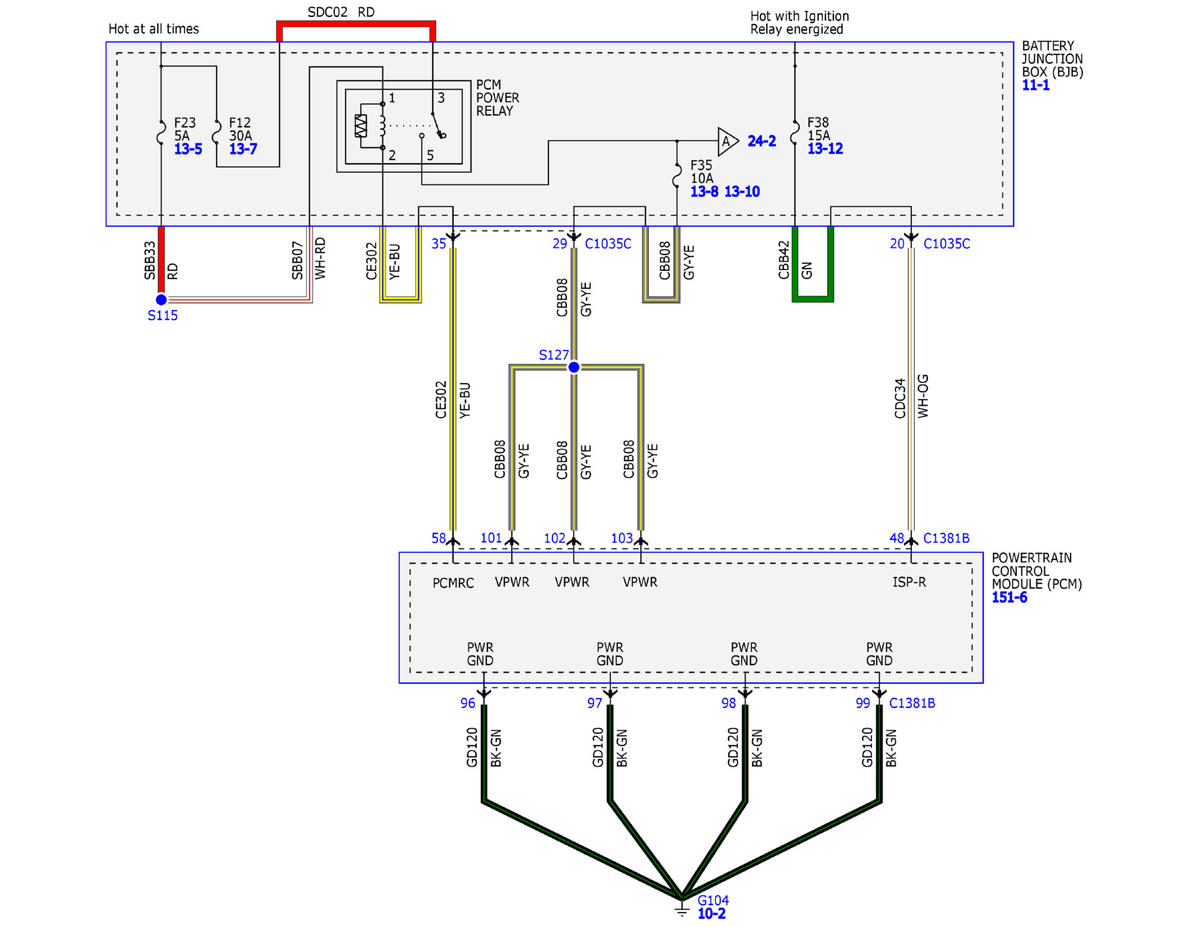

Fig 4: Electronic Engine Controls System Wiring Diagrams (4 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

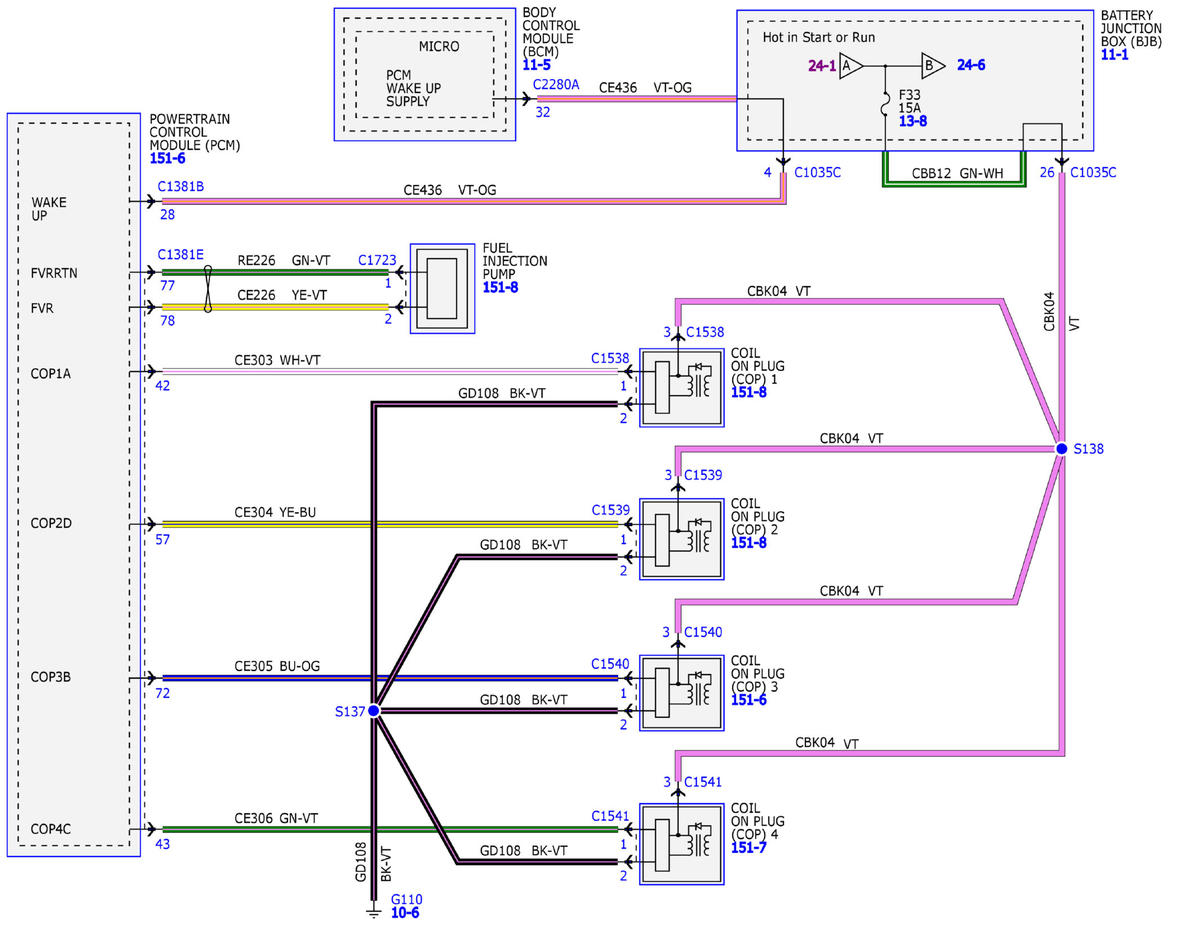

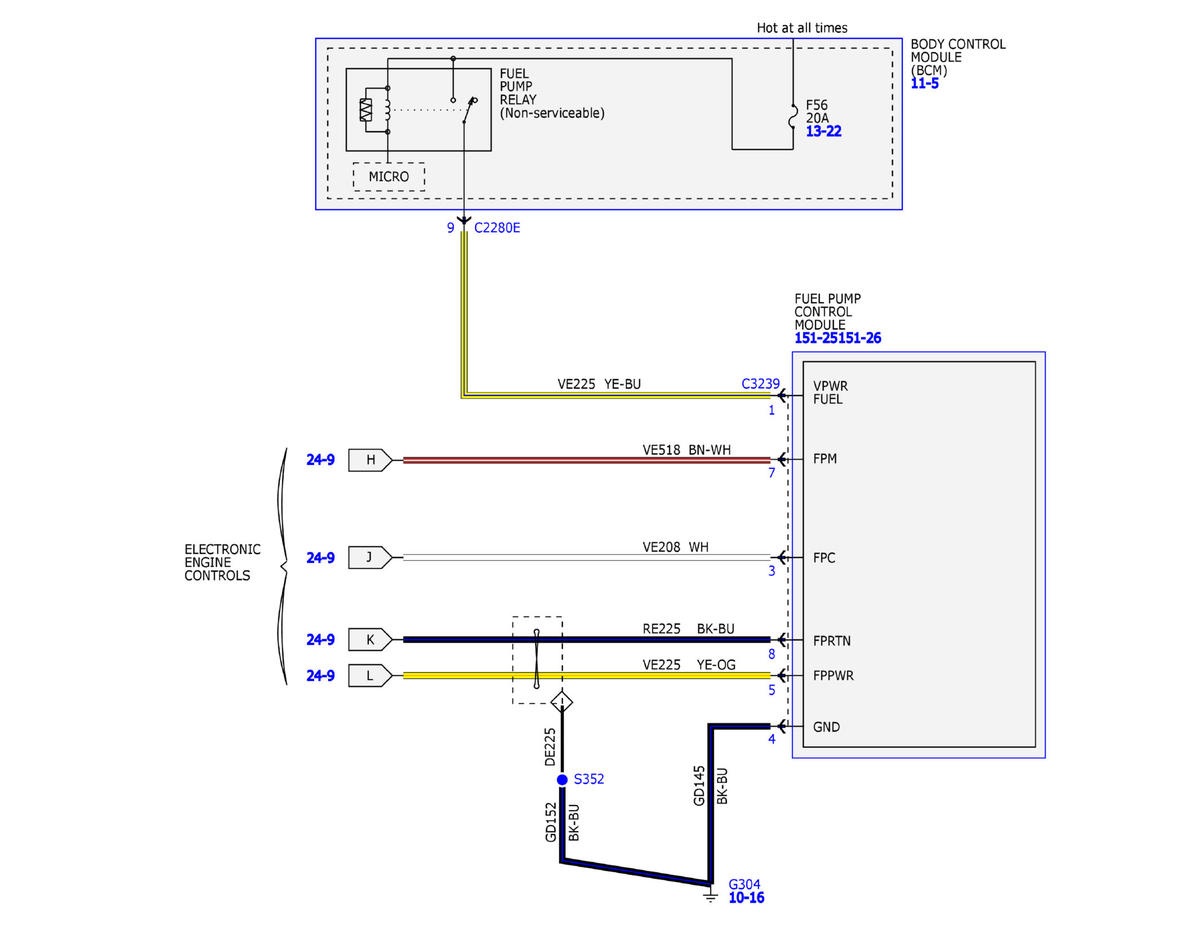

Fig 5: Electronic Engine Controls System Wiring Diagrams (5 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

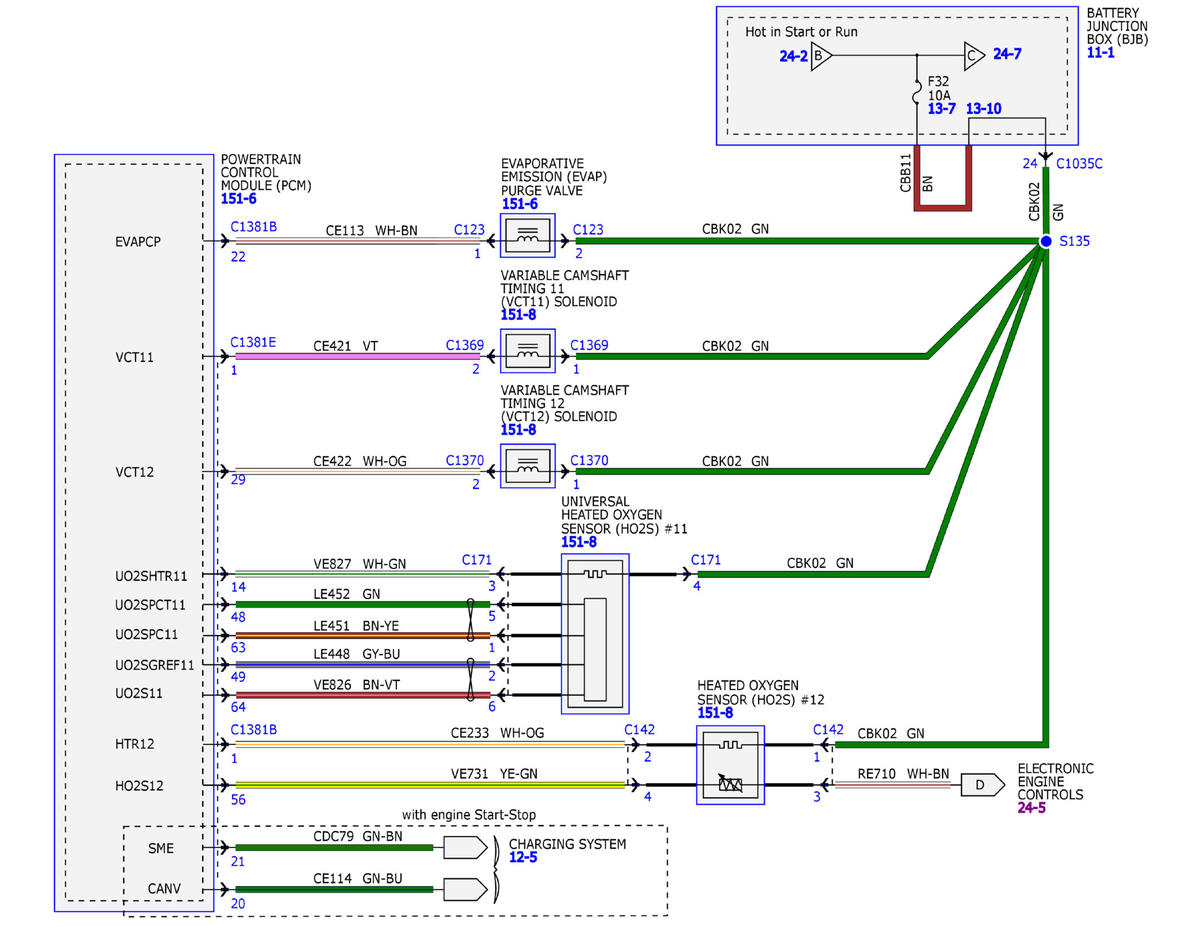

Fig 6: Electronic Engine Controls System Wiring Diagrams (6 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

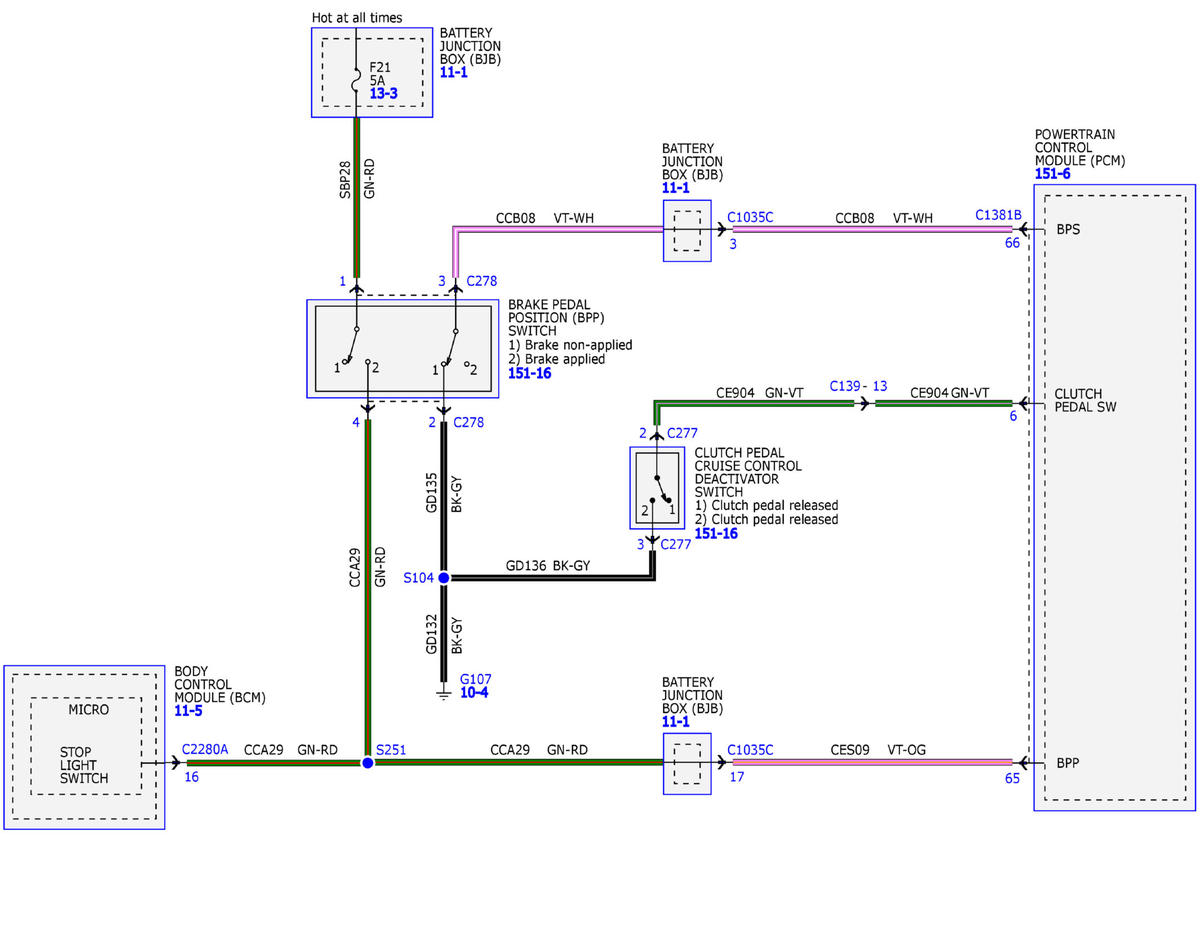

Fig 7: Electronic Engine Controls System Wiring Diagrams (7 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

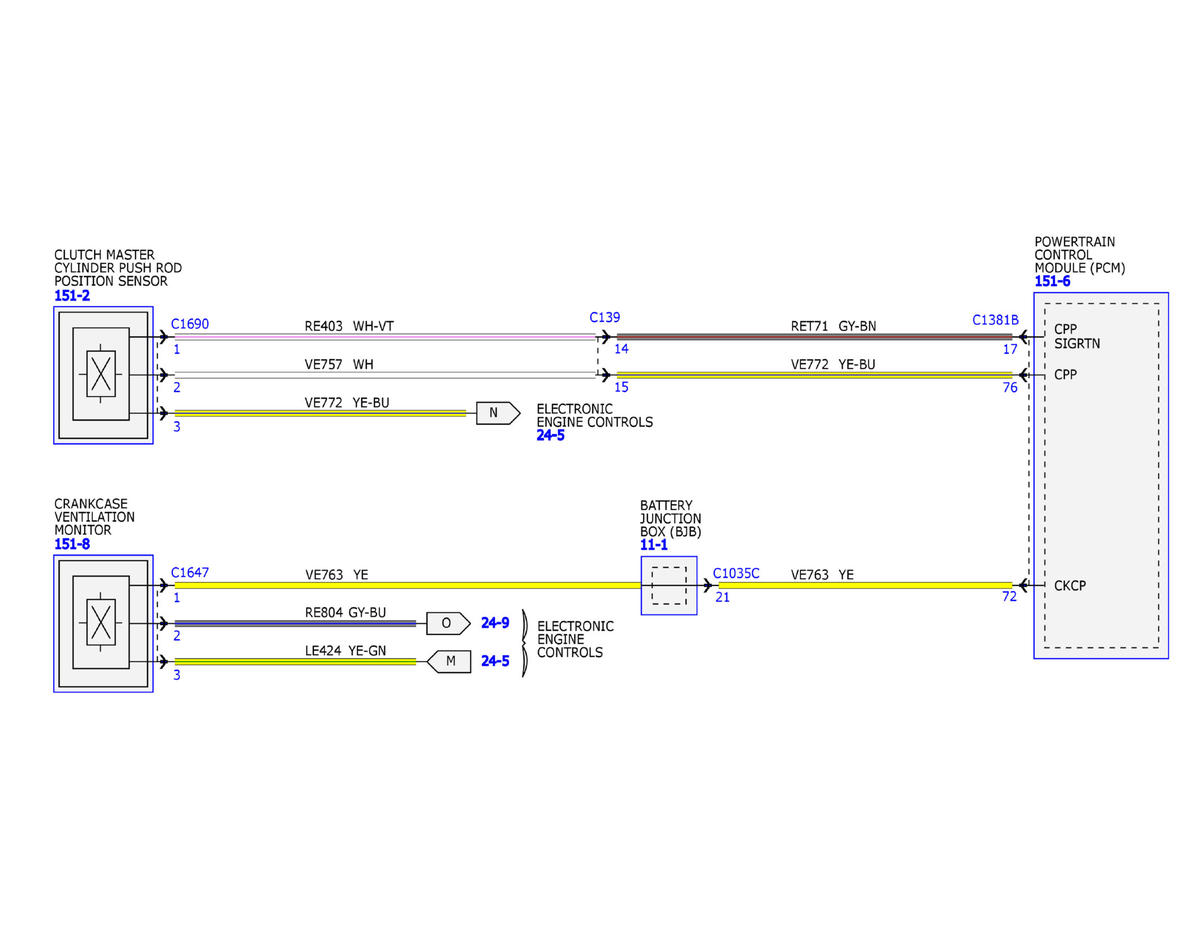

Fig 8: Electronic Engine Controls System Wiring Diagrams (8 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls System Wiring Diagrams (9 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls System Wiring Diagrams (10 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls System Wiring Diagrams (11 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls System Wiring Diagrams (12 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls System Wiring Diagrams (13 Of 13) (2.0L GTDI)

Courtesy of FORD MOTOR COMPANY
