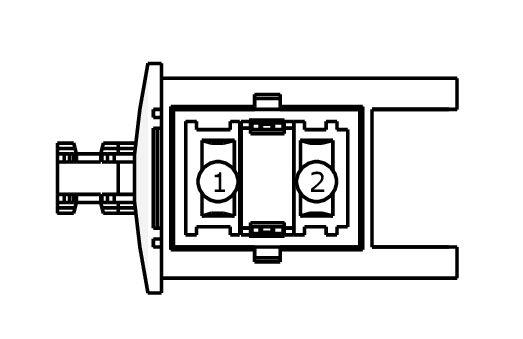

Connector End View (C2280G) - BODY CONTROL MODULE (BCM)
Connector: C2280G
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
SBB18 (YE) |
10 |
FUSE OUTPUT OR CIRCUIT BREAKER |
| 2 |
SBB17 (RD) |
10 |
FUSE OUTPUT OR CIRCUIT BREAKER |
