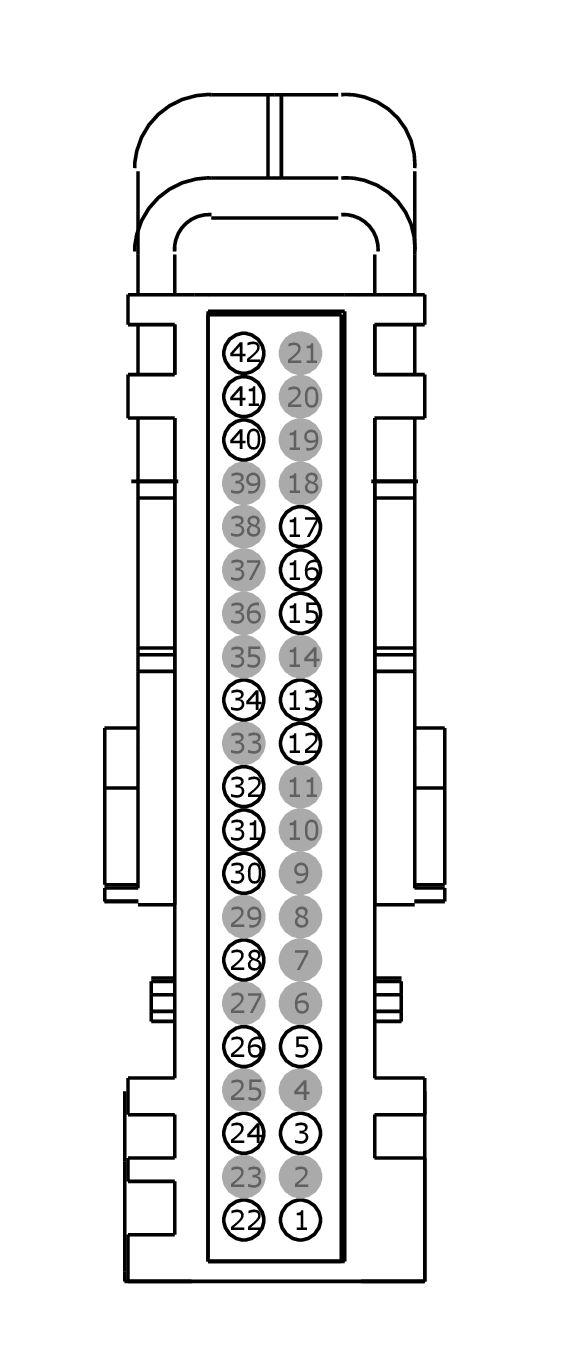

Connector End View (C2280A) - BODY CONTROL MODULE (BCM)
Connector: C2280A
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLS13 (YE-BU) | 20 | CTRL MOD. - SIDE MARKER FRONT LEFT | |
| 2 | * | * | Not Used | |
| 3 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 4 | * | * | Not Used | |
| 5 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | CE903 (BU-OG) | 22 | SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) | |
| 13 | CMC20 (VT) | 22 | SWITCH - LOW LEVEL WASHER FLUID | |
| 14 | * | * | Not Used | |
| 15 | CPL25 (BU-OG) | 20 | SWITCH - HOOD # AJAR | |
| 16 | CCA29 (GN-RD) | 20 | CTRL MOD. - POWERTRAIN # BRAKE PEDAL SENSOR (BPP) | |
| 17 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | CLS25 (YE-VT) | 18 | CTRL MOD. - TURN LAMP RIGHT FRONT | |
| 23 | * | * | Not Used | |
| 24 | CLS21 (BU-GN) | 18 | CTRL MOD. - TURN LAMP LEFT FRONT | |
| 25 | * | * | Not Used | |
| 26 | CLS07 (BN-YE) | 20 | CTRL MOD. - PARK FRONT RIGHT | |
| 27 | * | * | Not Used | |
| 28 | CH123 (VT-GN) | 20 | CTRL MOD. - BLOWER MOTOR RELAY | |
| 29 | * | * | Not Used | |
| 30 | CRD22 (GY-YE) | 20 | CTRL MOD. - RELAY FRONT WINDOW DEFROST | |
| 31 | CRH04 (VT-GN) | 18 | CTRL MOD. - RELAY HORN | |
| 31 | CRH04 (VT-GN) | 20 | CTRL MOD. - RELAY HORN | GTDI |
| 32 | CE436 (VT-OG) | 20 | CTRL MOD. -WAKE UP PCM | |
| 33 | * | * | Not Used | |
| 34 | CMC28 (GY-VT) | 20 | CTRL MOD. - RELAY DELAYED ACCESSORY RELAY | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | * | * | Not Used | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 41 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 42 | CDC56 (GY-VT) | 20 | LIN 8 (WMM/ BMS) |
