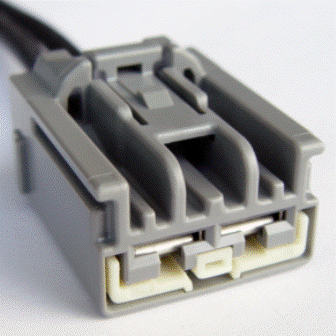

Connector End View (C2004) - BLOWER MOTOR
Connector: C2004
Description
BLOWER MOTOR
Color
GY
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB28 (GY-VT) | 10 | FUSE OUTPUT OR CIRCUIT BREAKER | EMTC |
| 1 | * (*) | * | BLOWER MOTOR DRIVER | DATC |
| 2 | * (*) | * | BLOWER MOTOR RETURN | DATC |
| 2 | CBB28 (WH-VT) | 10 | FUSE OUTPUT OR CIRCUIT BREAKER | EMTC |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1486 |
Service Part Number: 3U2Z-14S411-PB Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses Inverter - DC to AC Module - Heated Seat Module - Lighting Control Module - Seat Memory Module - Variable Speed Blower Controller Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Relay - Blower Motor Relay - Trailer Tow Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) Terminal - Rear Window Defroster Grid Trailer Tow - Vehicle Side |
| Pigtail Kit Part Number WPT-236 |
Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
