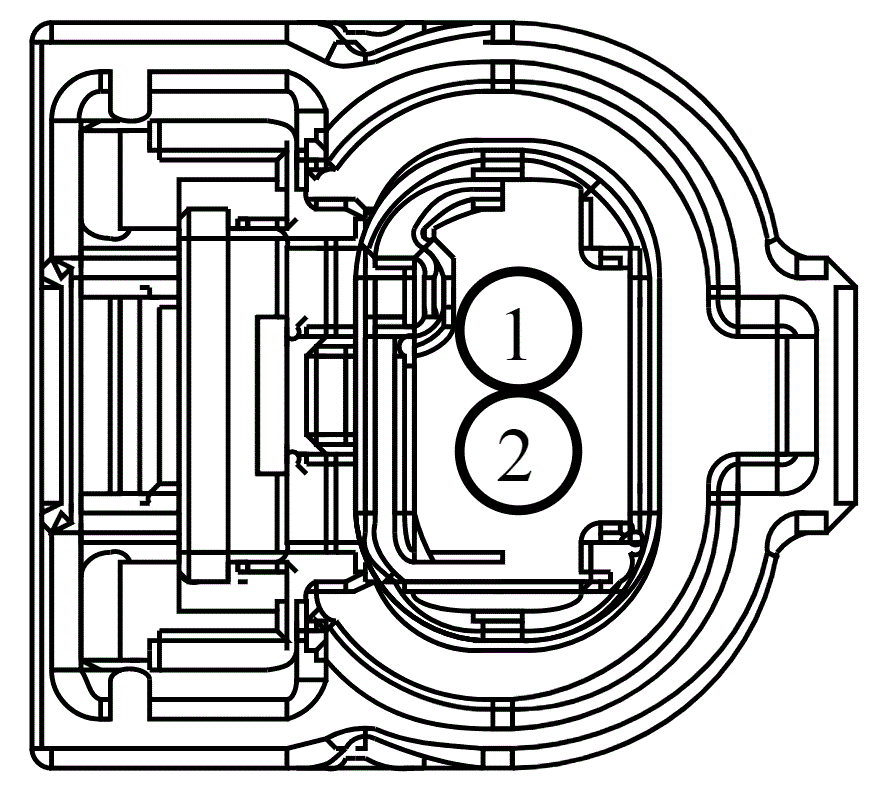

Connector End View (C1831) - TRANSFER CASE FLUID TEMPERATURE SENSOR

Connector: C1831

Description

TRANSFER CASE FLUID TEMPERATURE SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCF36 (YE-GN)	20	SENSOR - TRANSFER CASE TEMPERATURE (ECT) +
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)

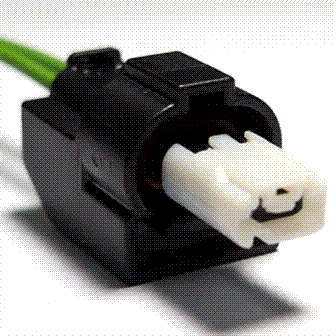

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Side Impact

Sensor - Transfer Case Temperature

Sensor - Transmission Fluid Temperature

Solenoid - Variable Oil Pump Control
