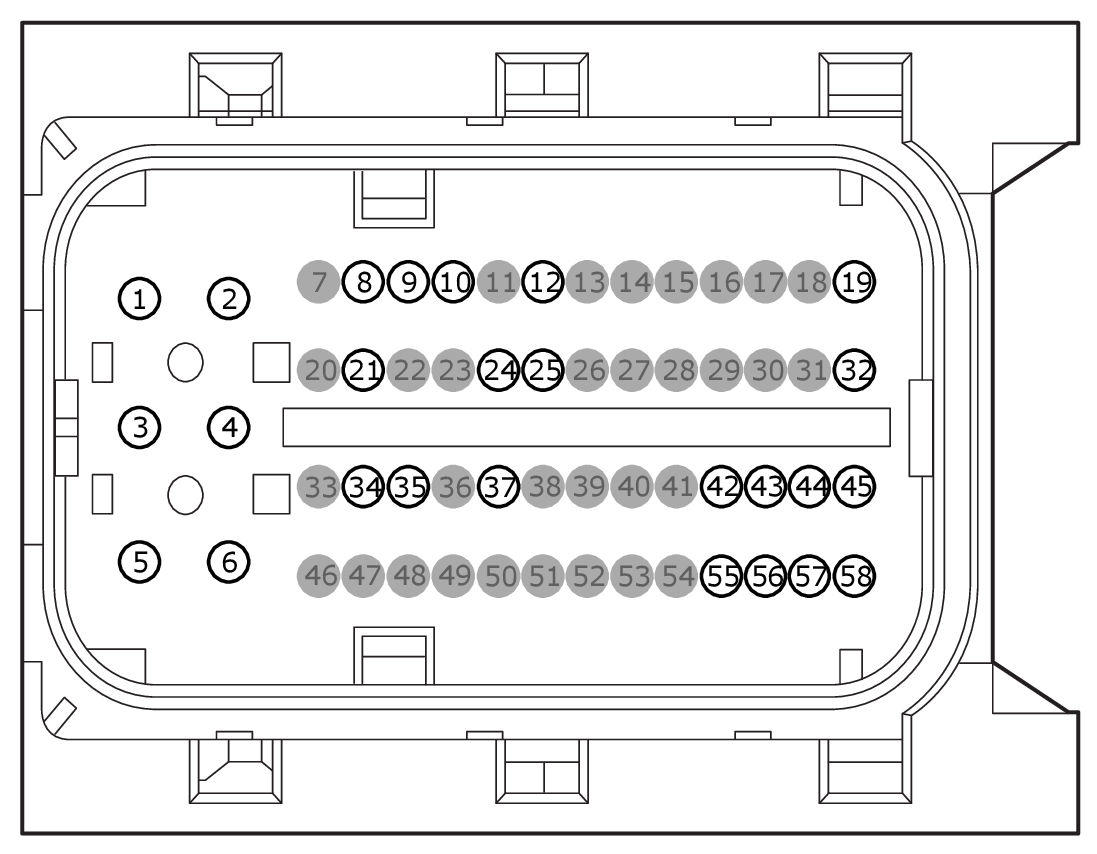

Connector End View (C1750B) - TRANSMISSION CONTROL MODULE (TCM)
Connector: C1750B
Description
TRANSMISSION CONTROL MODULE (TCM)
Color
BK
Harness
7G276
Base Part #
7C369
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (WH-BU) | 14 | PHASE W CLUTCH 2 | |
| 2 | * (WH-GY) | 14 | PHASE U CLUTCH 2 | |
| 3 | * (WH-GN) | 14 | PHASE V CLUTCH 2 | |
| 4 | * (WH-BK) | 14 | PHASE W CLUTCH 1 | |
| 5 | * (WH-PK) | 14 | PHASE V CLUTCH 1 | |
| 6 | * (WH) | 14 | PHASE U CLUTCH 1 | |
| 7 | * | * | Not Used | |
| 8 | * (WH-BU) | 22 | ISS2 INPUT SPEED | |
| 9 | * (YE-OG) | 22 | OSS INPUT SPEED | |
| 10 | * (PK-GN) | 22 | ISS1 INPUT SPEED DIR | |
| 11 | * | * | Not Used | |
| 12 | * (BU) | 22 | ISS2 SPEED SENSOR SUPPLY | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * (PK) | 22 | C1 HALL EFFECT 2 | |
| 20 | * | * | Not Used | |
| 21 | * (GN-BN) | 22 | ISS1 SPEED SENSOR SUPPLY | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * (GN) | 22 | TRS INPUT | |
| 25 | * (GN) | 22 | TRS INPUT | |
| 26 | * | * | Not Used | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * (PK or WH-BN) | 22 | C1 HALL EFFECT 1 | |
| 33 | * | * | Not Used | |
| 34 | * (WH-GN) | 22 | 5V SUPPLY TRS | |
| 35 | * (BK) | 20 | GROUND TRS | |
| 36 | * | * | Not Used | |
| 37 | * (BN-GN) | 22 | OSS SPEED SENSOR SUPPLY | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | * (WH-GY) | 22 | C2 HALL EFFECT 2 | |
| 43 | * (WH-BU) | 22 | C2 HALL EFFECT 1 | |
| 44 | * (YE-WH) | 22 | C2 HALL EFFECT 3 | |
| 45 | * (BN-BU) | 22 | C1 HALL EFFECT 3 | |
| 46 | * | * | Not Used | |
| 47 | * | * | Not Used | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | * | * | Not Used | |
| 51 | * | * | Not Used | |
| 52 | * | * | Not Used | |
| 53 | * | * | Not Used | |
| 54 | * | * | Not Used | |
| 55 | * (WH-PK) | 20 | C2 5V SUPPLY | |
| 56 | * (BK-WH) | 20 | GROUND CLUTCH 2 | |
| 57 | * (BK-WH) | 20 | GROUND CLUTCH 1 | |
| 58 | * (WH-PK) | 20 | C1 5V SUPPLY |
