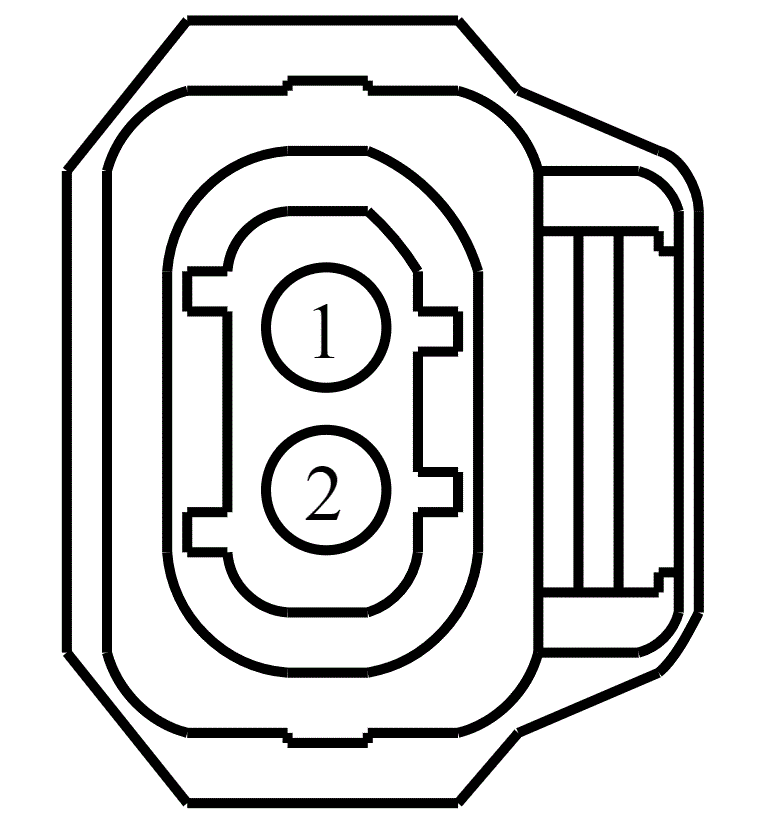

Connector End View (C1723) - FUEL INJECTION PUMP
Connector: C1723
Description
FUEL INJECTION PUMP
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE226 (GN-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVRRTN) | |
| 2 | CE226 (YE-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVR) |
