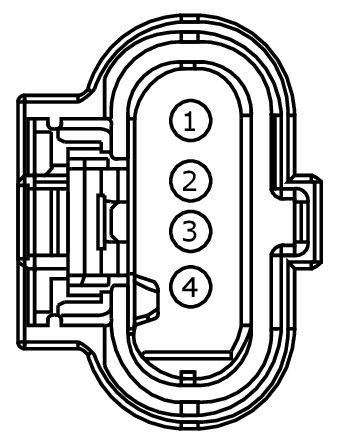

Connector End View (C1720) - NOISE GENERATOR
Connector: C1720
Description
NOISE GENERATOR
Color
Harness
12C508
Base Part #
part# N/A

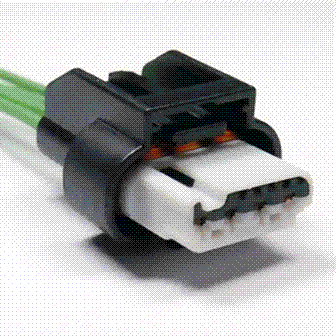

Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE470 (WH-BU) | 18 | CTRL MOD. - POWERTRAIN # SOUND SYMPOSER CONTROL (SSC) | |
| 2 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 3 | CBK03 (GY) | 18 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 4 | CE471 (GN-OG) | 18 | CTRL MOD. - POWERTRAIN # SOUND SYMPOSER MONITOR (SSM) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1537 |
Service Part Number: JU2Z-14S411-ACA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Differential Oil Temperature Module - Particulate Matter Bank Sensor Module - Reductant Quality Noise Generator Sensor - Fuel Rail Pressure and Temperature Sensor - Manifold Pressure/Intake Temperature Sensor - Turbo Intake Pressure/Temperature Valve - Active Exhaust Solenoid |
