Connector End View (C1673) - FUEL INJECTION PUMP
Connector: C1673
Description
FUEL INJECTION PUMP
Color
none
Harness
12A690
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE231 (BN-YE) | 18 | CTRL MOD. - POWERTRAIN # FUEL TANK SOLENOID VALVE (FSV) | |
| 2 | CBB12 (GN-WH) | 18 | FUSE - 33 OR CIRCUIT BREAKER |

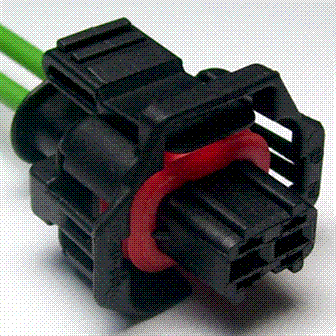

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1302 |
Service Part Number: CU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Pump - Fuel Injection Solenoid - Fuel Volume Regulator Control |
