Connector End View (C1654) - CAMSHAFT POSITION 12 (CMP12) SENSOR

Connector: C1654

Description

CAMSHAFT POSITION 12 (CMP12) SENSOR

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE707 (GY-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)
2	RE144 (BN)	18	SENSOR - CAMSHAFT POSITION BANK 2 EX
3	LE144 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 -

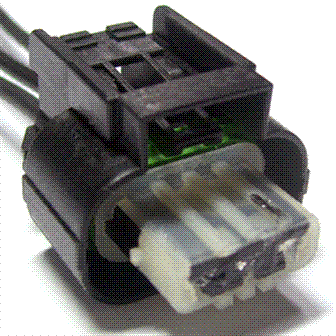

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1066

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-GA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Fuel Rail Pressure
