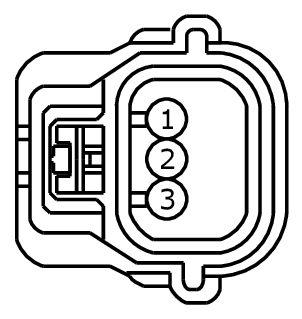

Connector End View (C1608) - ACTIVE PARK ASSIST SENSOR, RIGHT
Connector: C1608
Description
ACTIVE PARK ASSIST SENSOR, RIGHT
Color
BK
Harness
15K867
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LMP06 (VT-GY) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT | |
| 2 | VMP21 (WH-BN) | 20 | CTRL MOD. - ACTIVE PARK ASSIST # SENSOR RIGHT | |
| 3 | RMP06 (YE-OG) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1394 |
Service Part Number: AU2Z-14S411-AFB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) |
| Pigtail Kit Part Number WPT-1095 |
Service Part Number: AU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) |
