Differential Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

  1. Refer to: Jacking and Lifting - Overview .

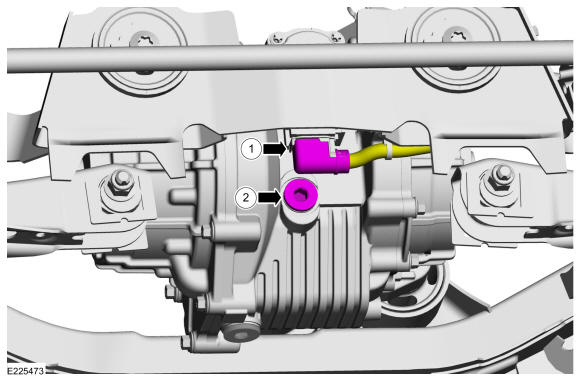

    GFD264350Courtesy of FORD MOTOR COMPANY
  2. Refer to: Specifications  .

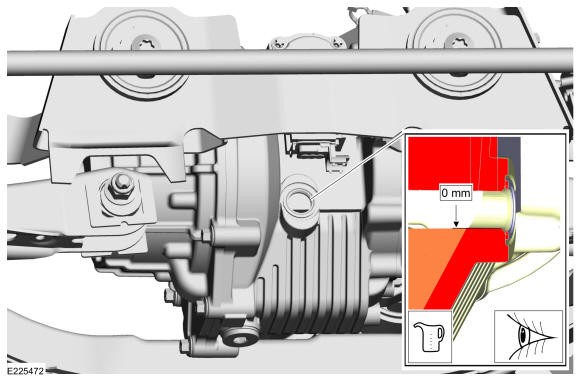

    GFD264348Courtesy of FORD MOTOR COMPANY
  3. Torque

    :1: 26 lb.ft (35 Nm)

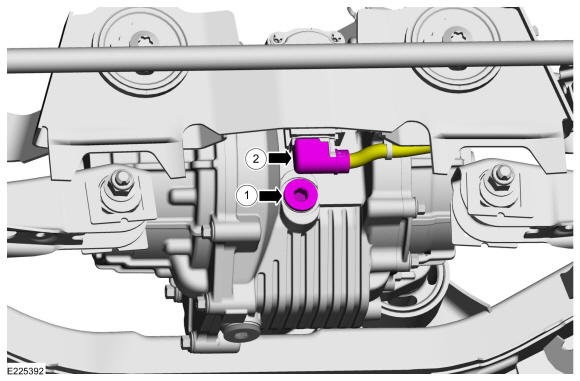

GFD264349Courtesy of FORD MOTOR COMPANY
