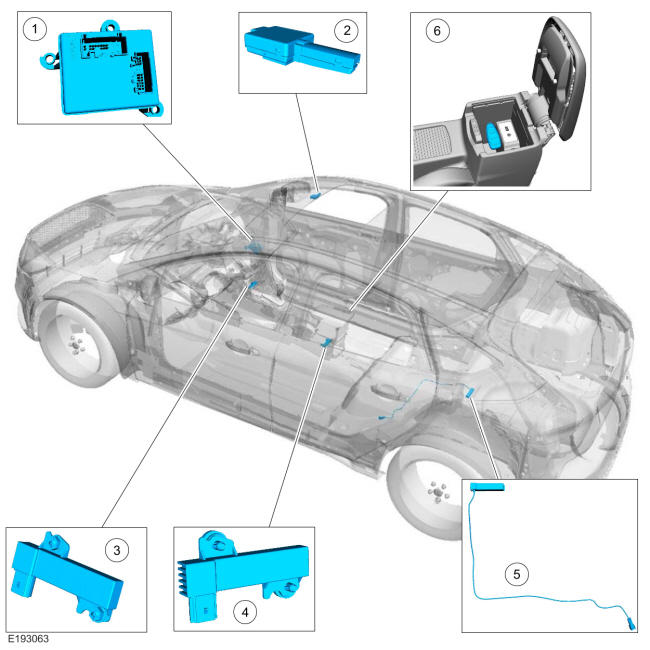

Passive Anti-Theft System (PATS) - Component Location
NOTE:
5-door shown, 4-door similar.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RFA module |
| 2 |
Radio Frequency (RF) receiver |
| 3 |
Front PATS antenna |
| 4 |
Center PATS antenna |
| 5 |
Rear PATS antenna |
| 6 |
Passive key backup starting location |
