Front Fog Lamp Adjustment - RS
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Headlamp Beam Setter |
|---|
Adjustment
-
-
NOTE: Make sure that the tire pressures are to specification and that the vehicle is unladen, maximum amount of petrol is 5 litre.
- Alternative the adjustment can be carried out at prescribed tire pressure, a completely filled fuel tank and one person or 75kg on the driver seat.
-
-
- Place the vehicle on a level surface.
- Ensure that the adjustment is made with the suspension set up.
-
NOTE: Always follow the manufacturer's instructions when handling the equipment.
Switch on the front fog lamps.
- Set the measuring screen of the beam setting equipment to the correct front fog lamp adjustment setting. Use the General Equipment: Headlamp Beam Setter

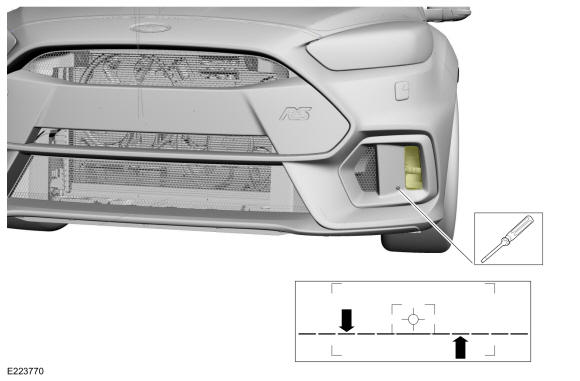

- Adjust the front fog lamps so that the cut-off line touches the horizontal line.
