Active Park Assist Switch: Removal

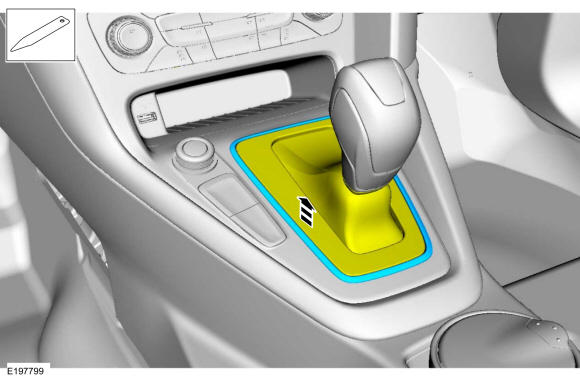

  1. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the selector lever trim ring. Use the General Equipment: Interior Trim Remover

    GFD269599Courtesy of FORD MOTOR COMPANY

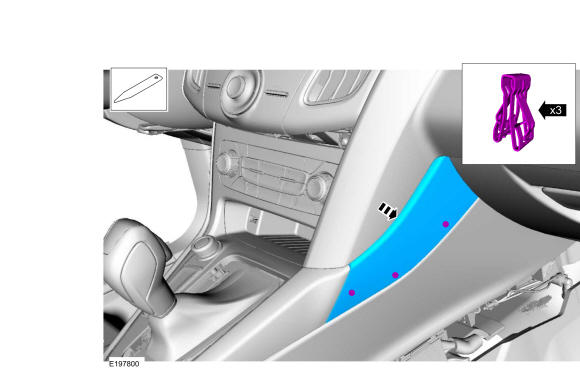

  2. Remove the RH finish panel. Use the General Equipment: Interior Trim Remover
    GFD269600Courtesy of FORD MOTOR COMPANY

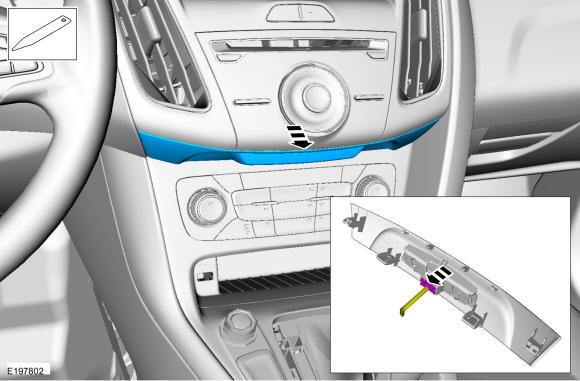

  3. Remove the instrument panel center finish panel. Use the General Equipment: Interior Trim Remover
    GFD269601Courtesy of FORD MOTOR COMPANY

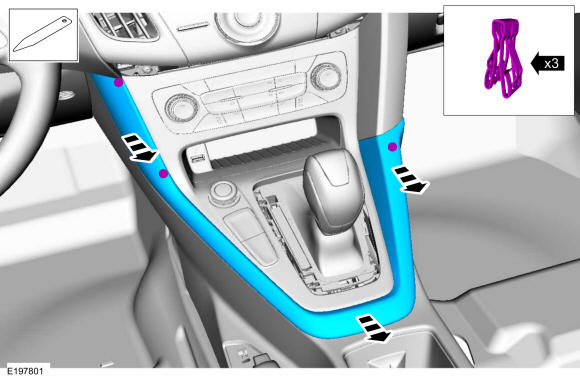

  4. Release the clips and remove the floor console upper finish panel. Use the General Equipment: Interior Trim Remover
    GFD269602Courtesy of FORD MOTOR COMPANY

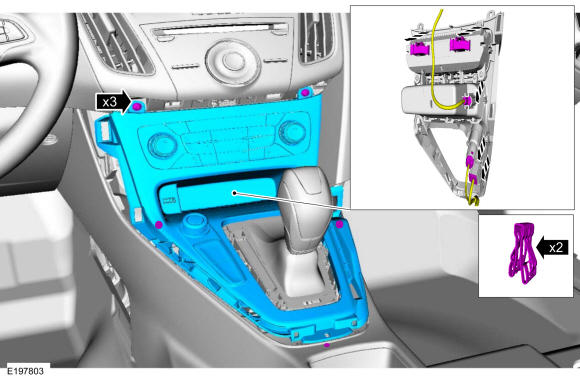

  5. Remove the screws, release the clips and remove the floor console upper trim panel.

    • Disconnect the electrical connectors.

      Torque

      : 18 lb.in (2 Nm)

    GFD269603Courtesy of FORD MOTOR COMPANY

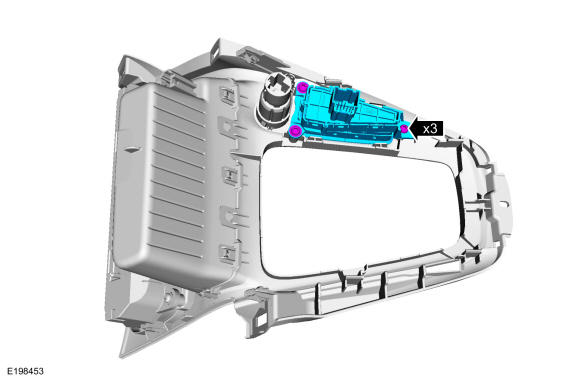

  6. Remove the screws and the active park assist switch.
GFD269604Courtesy of FORD MOTOR COMPANY
