Rear Toe Adjustment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Adjustment

1. Using alignment equipment and the manufacturer's instructions, measure the rear toe. Use the General Equipment: Wheel Alignment System
   NOTE: The cam nut and cam bolt area must be free of foreign material to make sure of correct clamping.
   NOTE: Clean the general area of the joint to prevent foreign material from entering the joint. Clean the area using only mild liquids.
   NOTE: Jounce the vehicle to make sure that the suspension is in its normal, at-rest position.

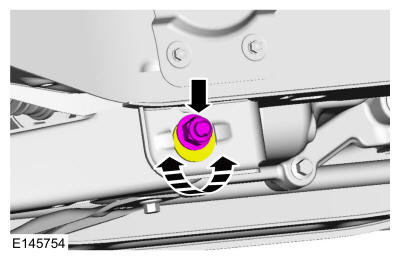

2. On both sides. Loosen the lower arm cam nut and adjust the rear toe setting by rotating the lower arm bolt and eccentric washer.

   Courtesy of FORD MOTOR COMPANY

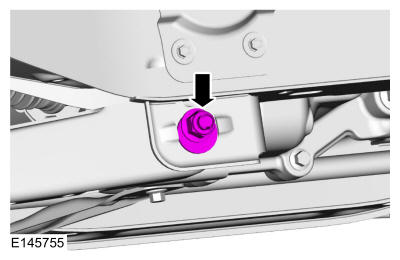

3. On both sides. Tighten the rear lower arm adjustment cam nut.

   Torque: 66 lb.ft (90 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Recheck the toe settings and adjust as necessary.
