Upper Arm: Installation

1. Position the correct spacer.
2. Verify the spacer is placed properly. Use the General Equipment: Vehicle/Axle Stands
Courtesy of FORD MOTOR COMPANY

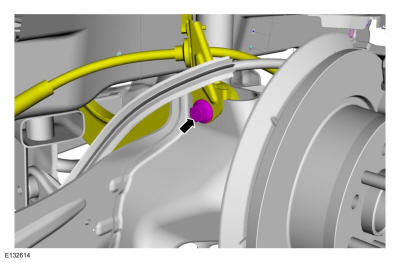

Install the upper arm and install the new upper arm-to-rear subframe bolt.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

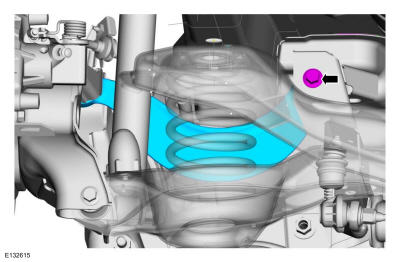

Position the upper arm and the brake hose bracket and install the new upper arm-to-trailing arm bolt.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Position the rear shock absorber and install the new rear shock absorber lower bolt.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Install the spring. Refer to: Spring .
