Trailing Arm: Installation

NOTE: Fabricate a spacer.

NOTE: Focus, Focus-BEV and Focus-ST require different length spacers.
1. Focus, Focus-BEV. Measure the length as per the specifications.
2. Focus-ST. Measure the length as per the specifications.
Courtesy of FORD MOTOR COMPANY

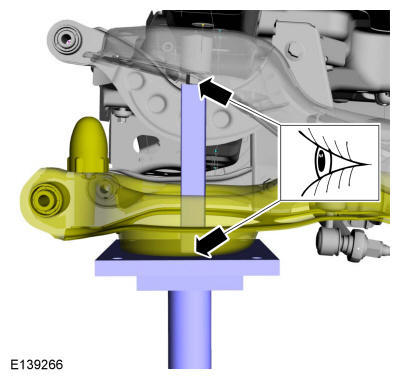

Support the rear suspension and position the correct spacer. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

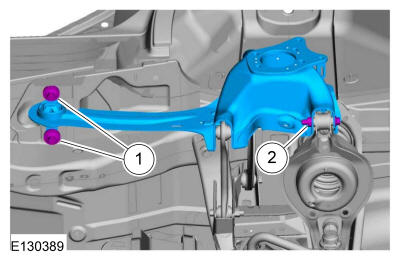

1. Install the trailing arm and tighten the new front bolts.
  Torque: 129 lb.ft (175 Nm)
2. NOTE: Finger tight at this stage.

  Install the new trailing arm-to-lower arm bolt and nut.
Courtesy of FORD MOTOR COMPANY

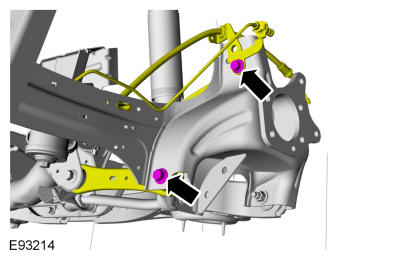

Position the front lower arm and brake hoses and bracket and tighten the bolts.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

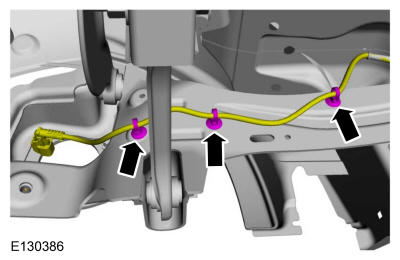

Position the wiring harness and install the pin type retainers.

Courtesy of FORD MOTOR COMPANY

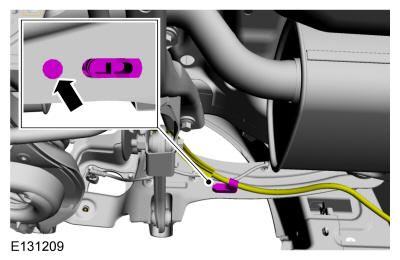

Position the parking brake cable and install the bolt.
Torque: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY

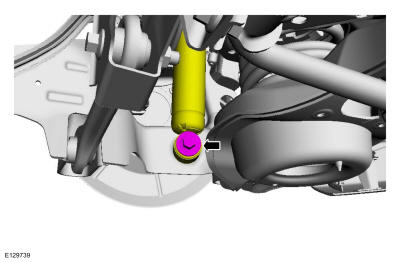

Position the rear shock absorber and install the new rear shock absorber lower bolt.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

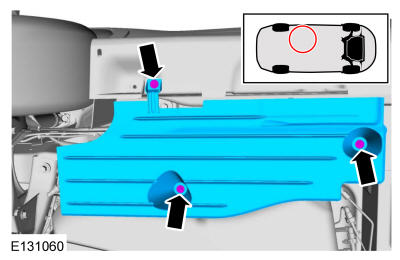

Install the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY
Install the wheel bearing and wheel hub. Refer to: Wheel Bearing and Wheel Hub .
Install the spring. Refer to: Spring .
