Rear Shock Absorber: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: WARNING: Service of the high voltage system on this vehicle is restricted to qualified personnel. The required qualifications vary by region. Always observe local laws and legislative directives regarding electric vehicle service. Failure to follow this instruction may result in serious personal injury or death.
- Refer to: Health and Safety Precautions .
- Refer to: Jacking and Lifting - Overview .

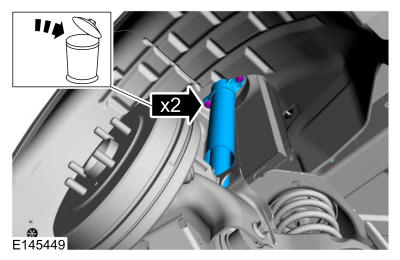

- Discard the specified component. Follow local disposal regulations. Use the General Equipment: Vehicle/Axle Stands
Torque: 85 lb.ft (115 Nm)
- Discard the specified component. Follow local disposal regulations.
Torque: 18 lb.ft (25 Nm)
