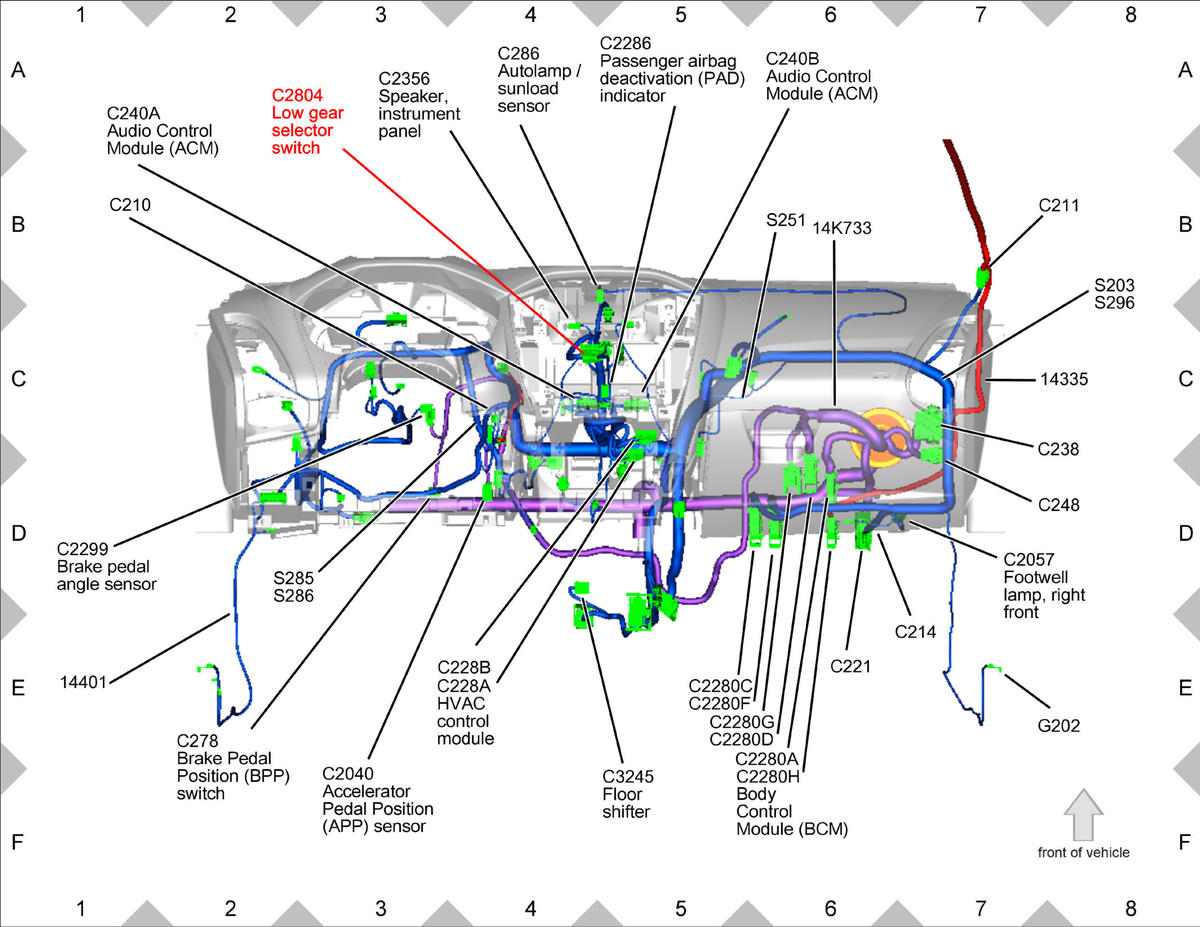

Home >> Ford >> 2018 >> Focus Electric >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Electric Vehicle) >> Component Location Charts By Connectors >> C2804 Behind Dash Panel Center Top
