Home >> Ford >> 2018 >> Focus Electric >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Electric Vehicle) >> Component Location Charts By Connectors >> C2803 Instrument Panel LH Side Bottom

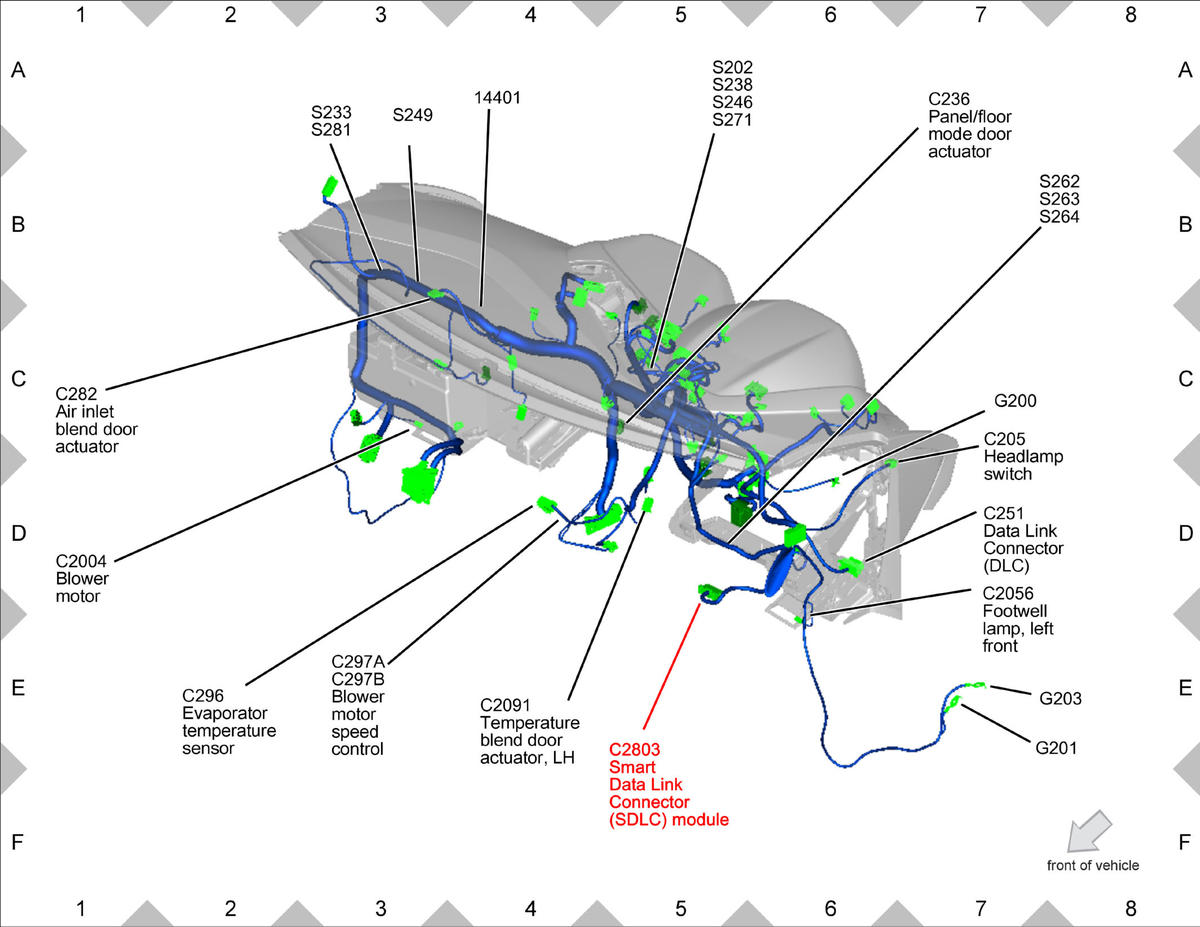

C2803 Instrument Panel LH Side Bottom

GFDWR41761

Courtesy of FORD MOTOR COMPANY
