Azimuth System Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations to OEM COLOR CODING

Check

NOTE: Car shown, trucks are similar.

Turn the ignition ON, engine OFF.

Courtesy of FORD MOTOR COMPANY
Set the parking brake on.
For automatic transmission place the selector lever in DRIVE (D). For manual transmission place the gearshift lever in FIRST GEAR.

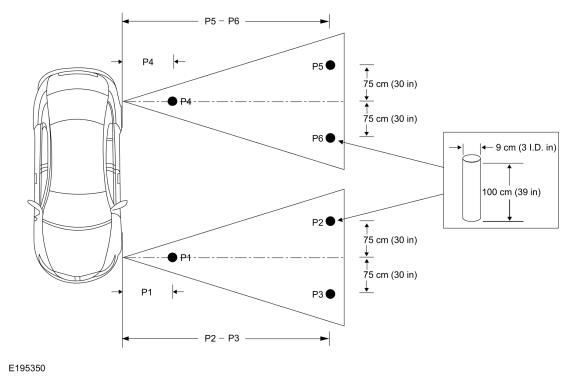

Place the test objects in position shown in the diagram. Refer to SPECIFICATIONS .
Monitor the suspect active park assist sensor Parameter Identifications (PIDs) to verify the PAM detects the objects when placed within the specified locations and record the distances.
Confirm the recorded distances are within the specification ranges.
If the active park assist system does not detect the objects, refer to DIAGNOSIS AND TESTING .
