Front Parking Aid Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: This procedure can be used for all locations of the component.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

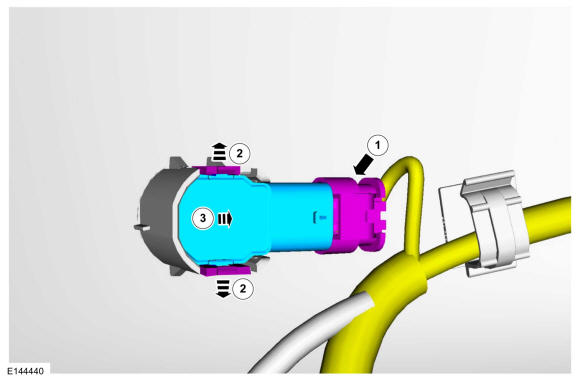

  2. Remove the front parking aid sensor.

    1. Disconnect the parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the parking aid sensor from the bracket.

GFD269579Courtesy of FORD MOTOR COMPANY
