Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

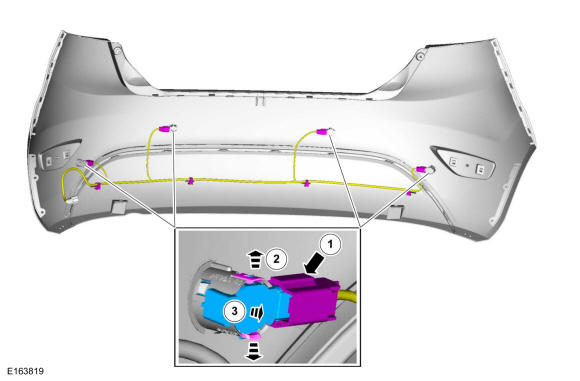

4-Door
Remove the rear parking aid sensor.
1. Disconnect the rear parking aid sensor electrical connector.
2. Release the tabs.
3. Remove the rear parking aid sensor from the bracket.
Courtesy of FORD MOTOR COMPANY

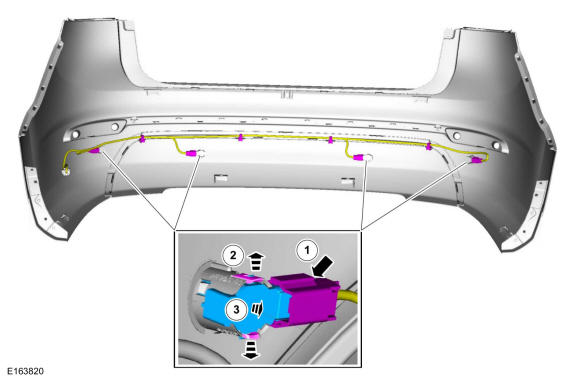

5-Door
Remove the rear parking aid sensor.
1. Disconnect the rear parking aid sensor electrical connector.
2. Release the tabs.
3. Remove the rear parking aid sensor from the bracket.

Courtesy of FORD MOTOR COMPANY
