Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure to install a new Fuel Pump Module O-ring seal.

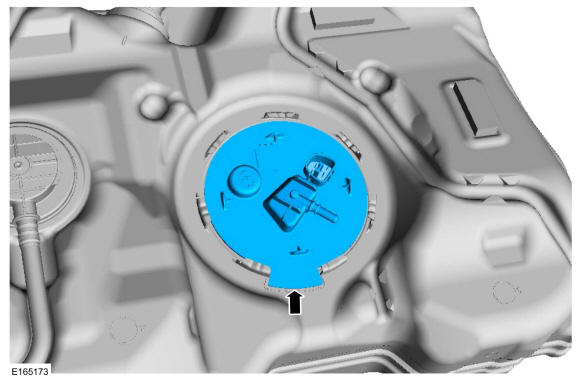

NOTE: Make sure the Fuel Pump (FP) module is installed in its original position before tightening the Fuel Pump (FP) module lock ring.

To install, reverse the removal procedure.

Courtesy of FORD MOTOR COMPANY
