Fuel Level Sender: Removal

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

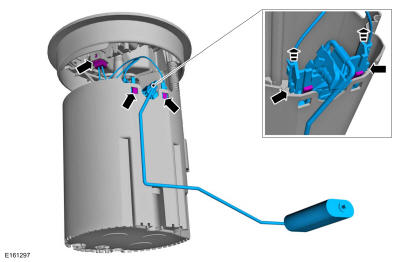

  2. Disconnect the fuel level sender electrical connector, release the retainer tab and remove the fuel level sender.
GFD302124Courtesy of FORD MOTOR COMPANY
