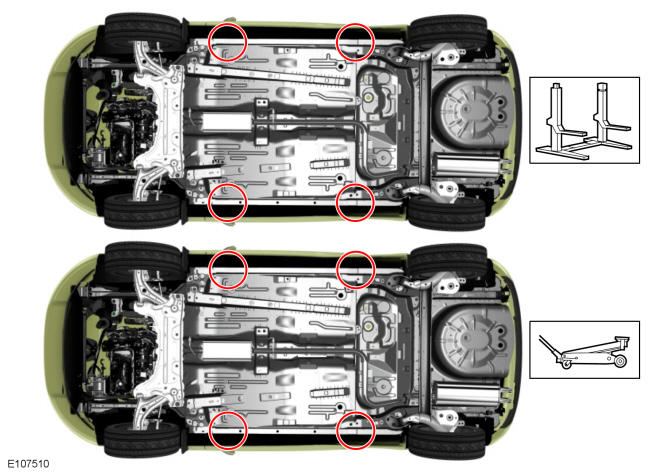

Jacking and Lifting Points
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Jacking and lifting points are the same for 4-door sedan and 5-door hatchback.
WARNING:
Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
NOTE:
The jack provided with the vehicle is intended to be used in an emergency for changing a deflated tire. To avoid damage to the vehicle, never use the jack to hoist the vehicle for any other purpose.
NOTE:
Do not attempt to use jack pressure on either the front bumper or the rear bumper on any vehicle. Damage to bumper covers will occur.
NOTE:
Place blocks underneath the lifting points if a two-column hoist is used.
NOTE:
Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
NOTE:
To prevent possible damage to the underbody, do not drive the vehicle onto the drive-on lift without first checking for possible interference.
NOTE:
When raising a vehicle on a two-column hoist, use care when positioning the vehicle so that the hoisting forks do not interfere with suspension components, mounting brackets or stabilizer mounting brackets, if equipped. In addition, use care in hoist positioning to avoid possible damage to the axle or rear cover.
