OEM Wiring Diagram Symbols (Electric Vehicle): Symbols

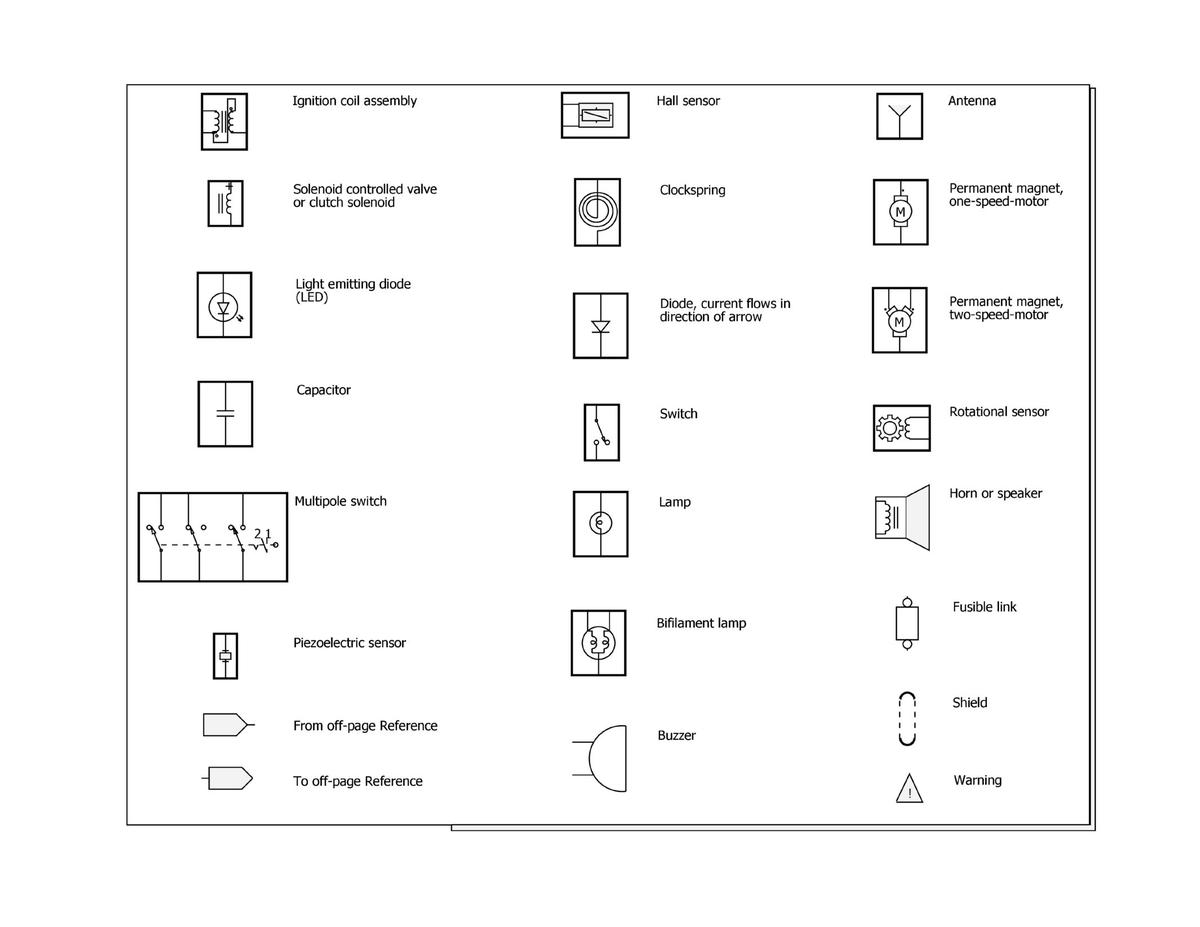

GFDWR42412Courtesy of FORD MOTOR COMPANY

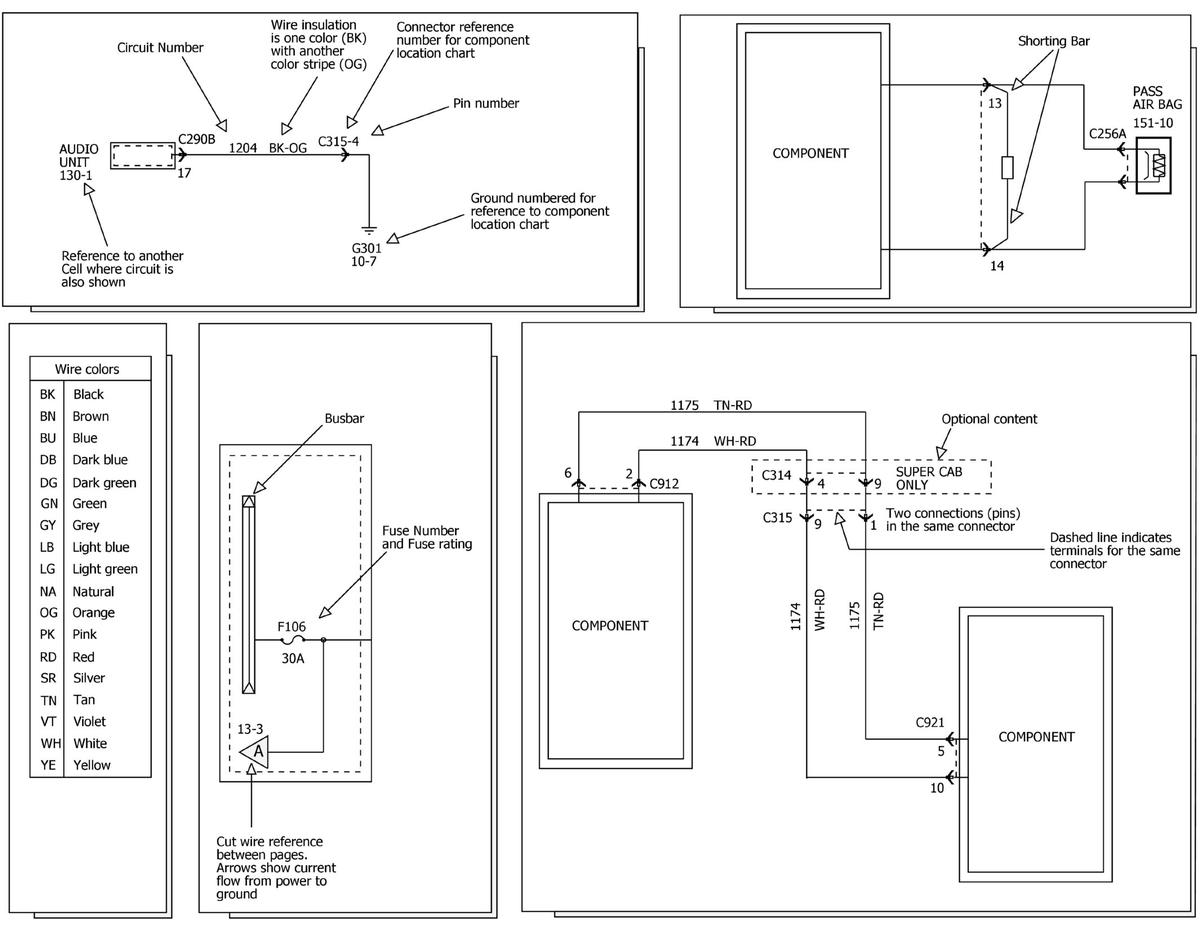

GFDWR42413Courtesy of FORD MOTOR COMPANY

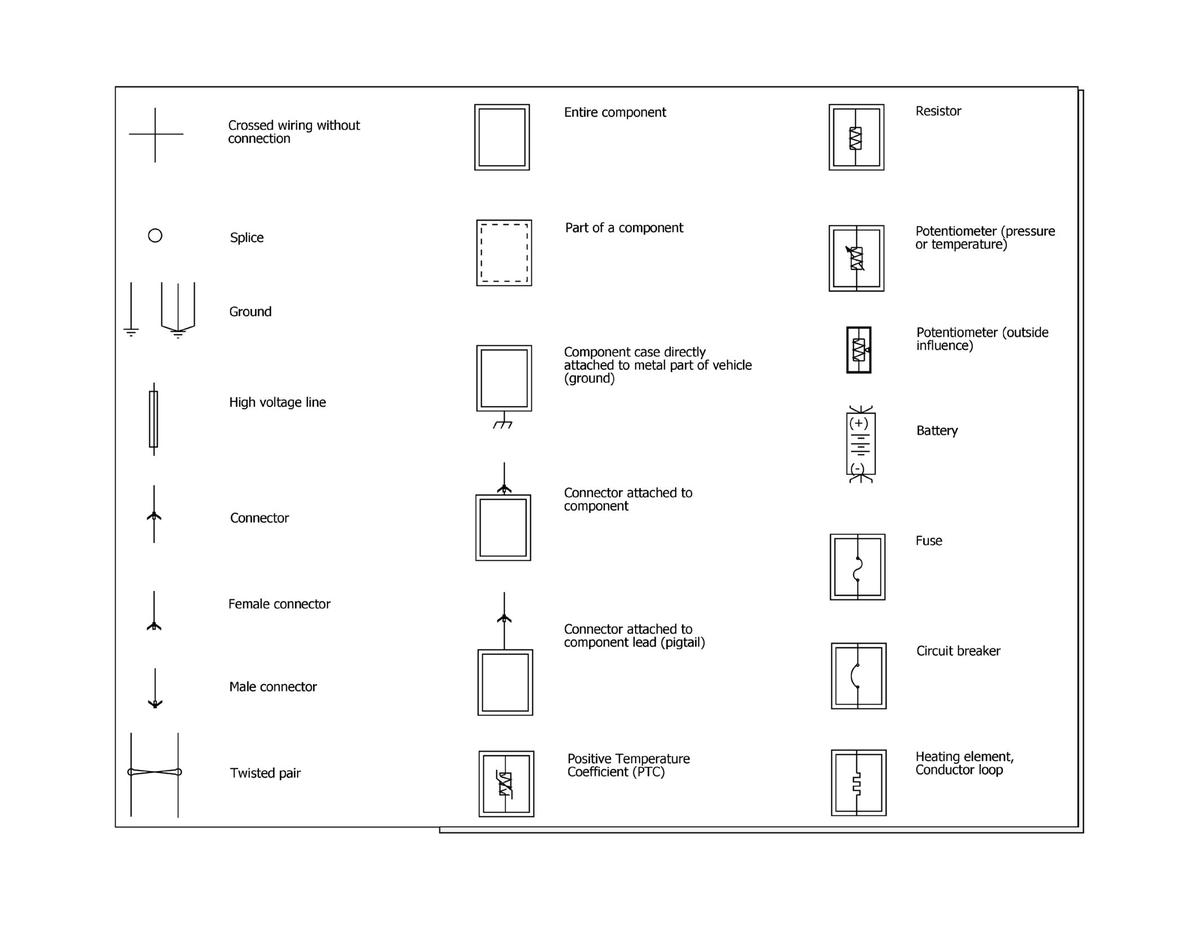

GFDWR42414Courtesy of FORD MOTOR COMPANY

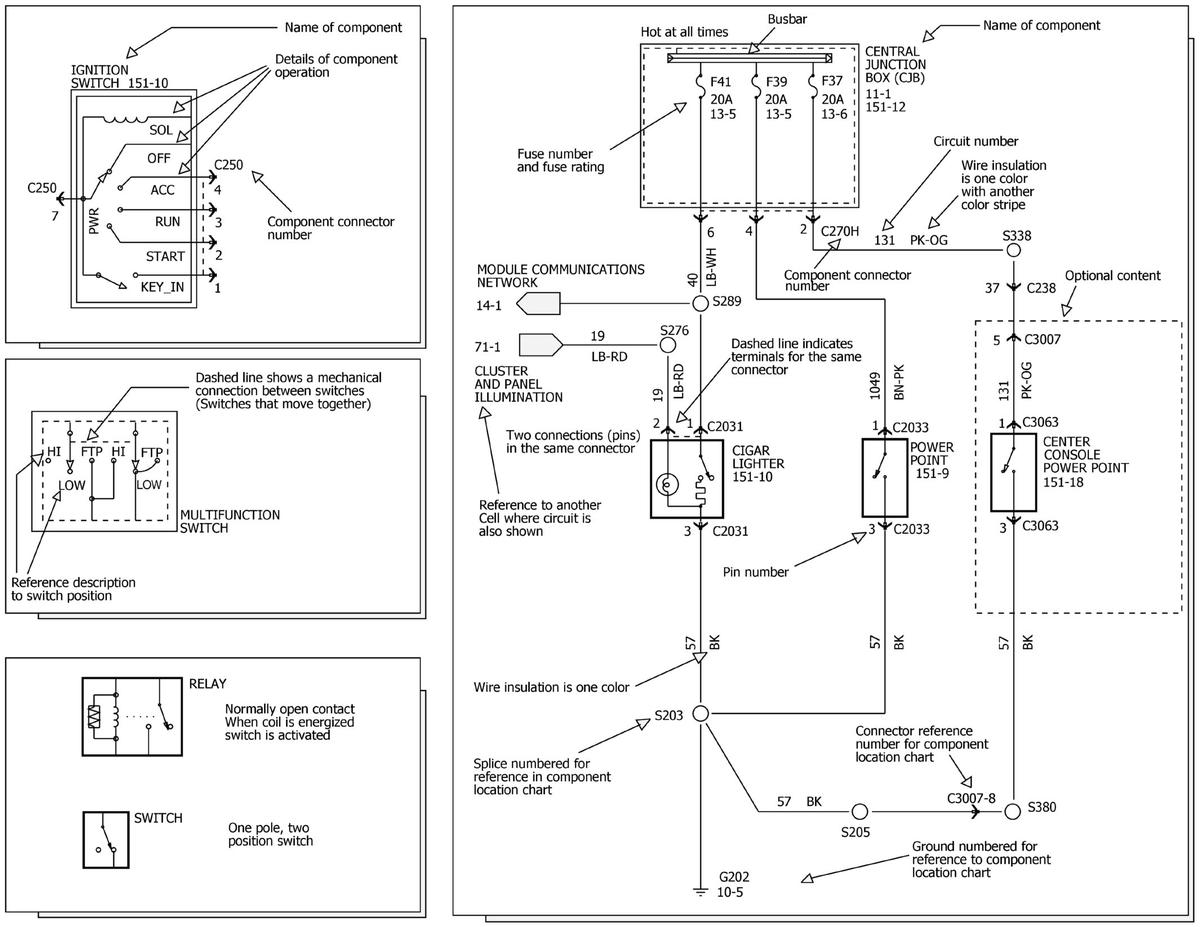

GFDWR42415Courtesy of FORD MOTOR COMPANY

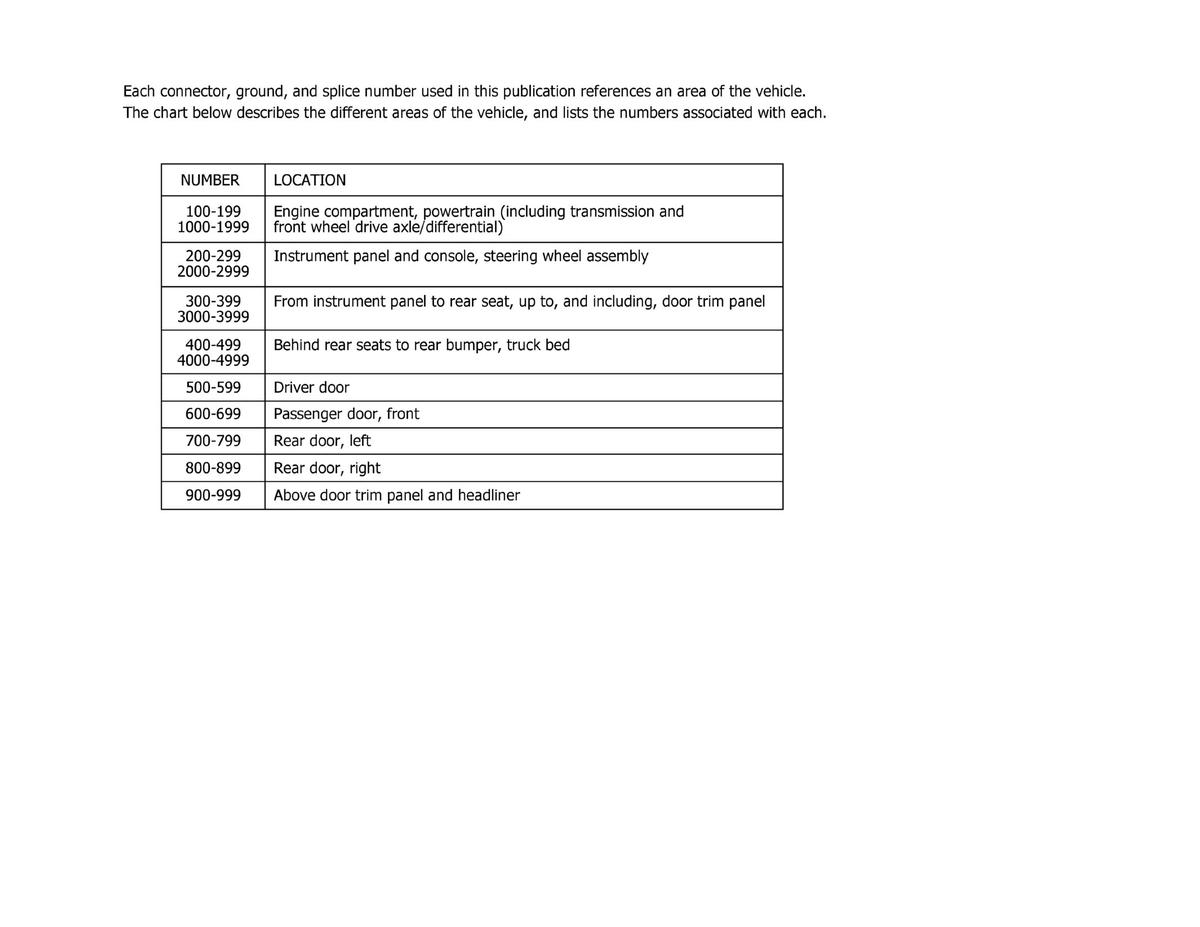

GFDWR42416Courtesy of FORD MOTOR COMPANY
