OEM Component Harness Location Charts By Components (Electric Vehicle)
>>
Component Location Charts By Components
>>

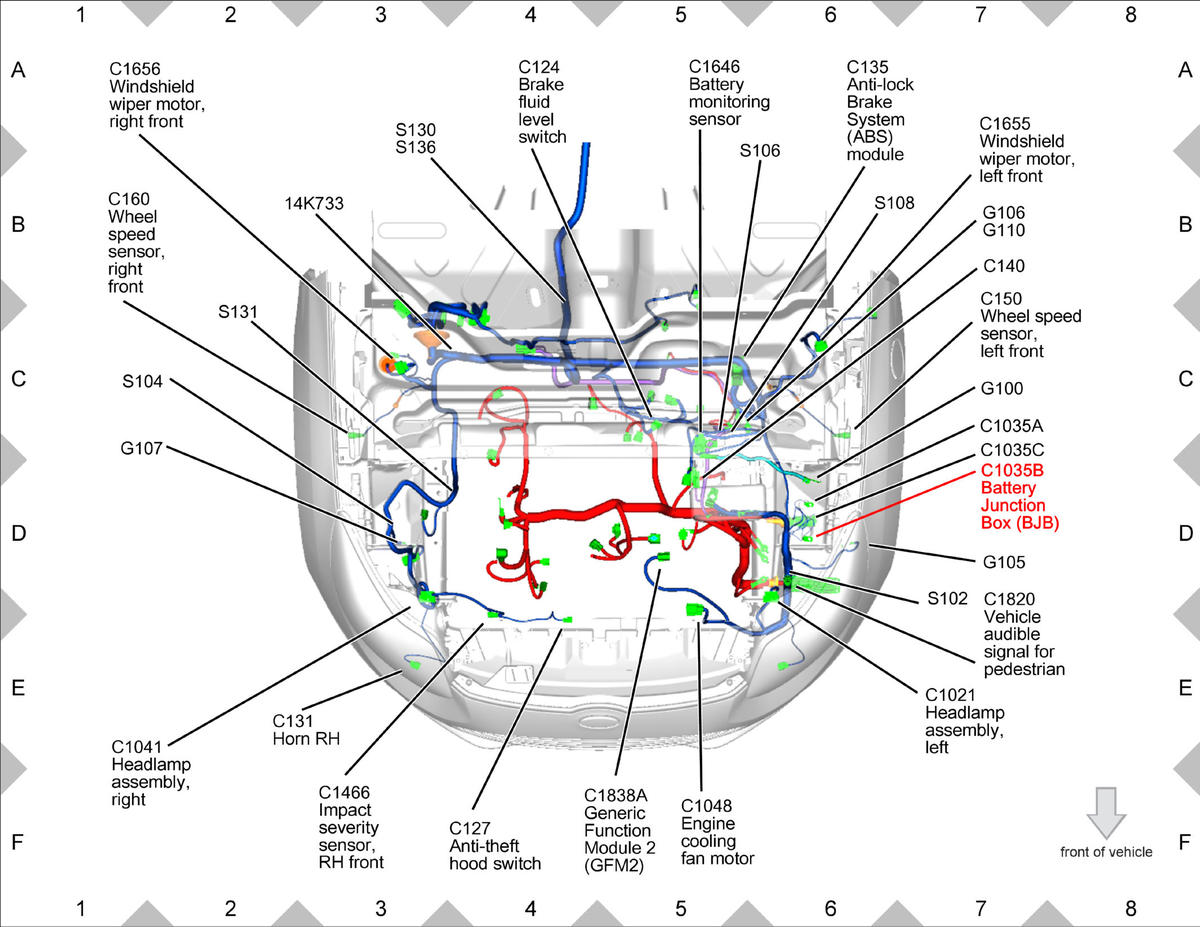

High Current Battery Junction Box (BJB) Engine Compartment LH Side
High Current Battery Junction Box (BJB) Engine Compartment LH Side
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
