Parking Brake Cable: Removal

NOTE: Removal steps in this procedure may contain installation instructions.

Apply the parking brake and remove the parking brake control lever boot.

Courtesy of FORD MOTOR COMPANY
Release the parking brake and loosen the parking brake cable adjustment nut.

Courtesy of FORD MOTOR COMPANY
Remove the high voltage lower battery. Refer to: High Voltage Lower Battery .

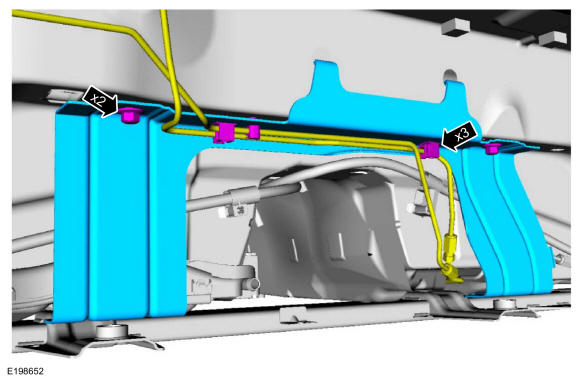

Detach the brake tubes from the routing clips, remove the bolts and the high voltage lower battery bracket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

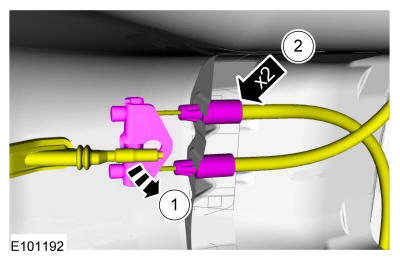

Detach the front parking brake cable from the equalizer and detach the rear parking brake cables from the body.

Courtesy of FORD MOTOR COMPANY

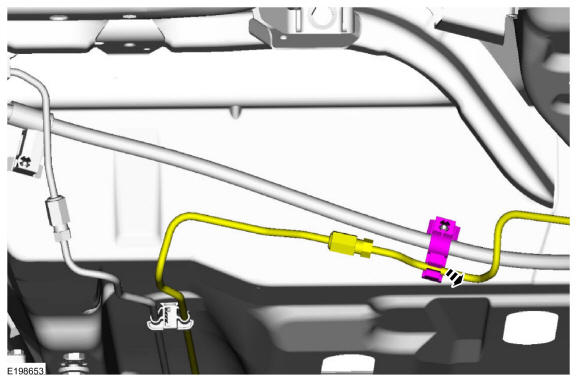

Detach the brake tube from the routing clip.

Courtesy of FORD MOTOR COMPANY
Detach the parking brake cables from the brake calipers on both sides.
1. Rotate the brake caliper lever.
2. Detach the parking brake caliper from the brake caliper lever.
3. Detach the parking brake cable from the brake caliper bracket.
Courtesy of FORD MOTOR COMPANY

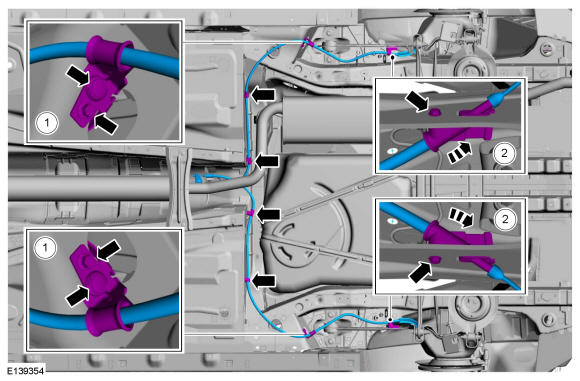

1. Remove the bolts and detach the parking brake cable brackets from the body on both sides.
  Torque: 97 lb.in (11 Nm)
2. Remove the bolts and detach the parking brake cable brackets from the suspension arms on both sides.
  Torque: 17 lb.in (1.9 Nm)
- Detach the remaining parking brake cable brackets and remove the parking brake cables.
