Brake Vacuum Pump: Removal
NOTE:
Removal steps in this procedure may contain installation details.

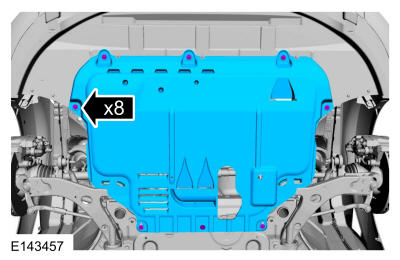

- Refer to: Jacking and Lifting - Overview
.

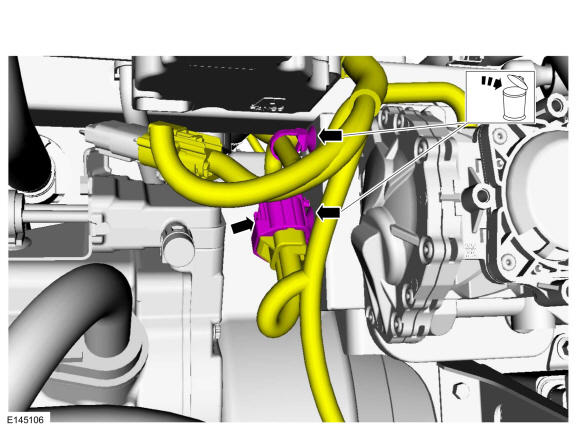

- Discard the specified component. Follow local disposal regulations.

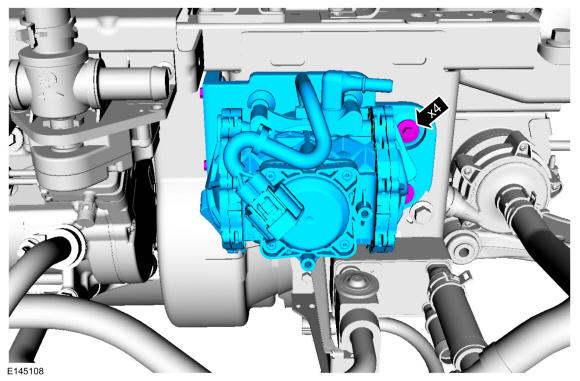

- Torque: 89 lb.in (10 Nm)

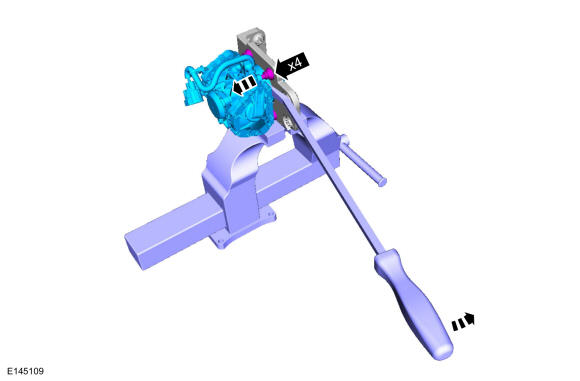

- Use the General Equipment: Vise
