Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Tray .

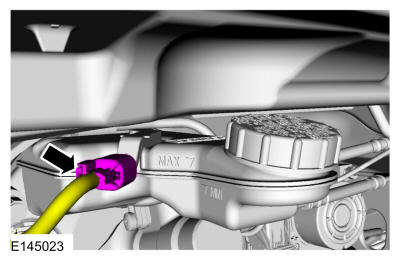

    GFD357709Courtesy of FORD MOTOR COMPANY
  2. Torque: 18 lb.ft (25 Nm)

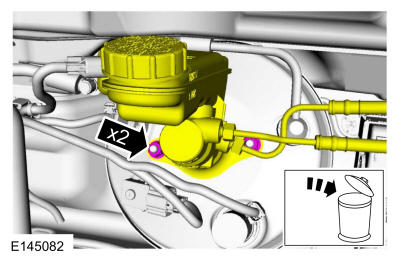

    GFD357715Courtesy of FORD MOTOR COMPANY

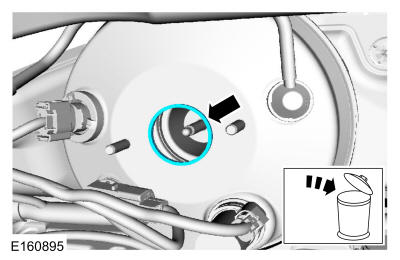

    GFD357712Courtesy of FORD MOTOR COMPANY

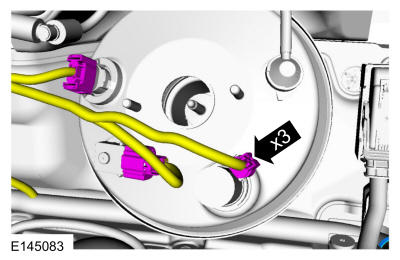

    GFD357716Courtesy of FORD MOTOR COMPANY
  3. Refer to: Stoplamp Switch .
  4. Torque: 18 lb.ft (25 Nm)

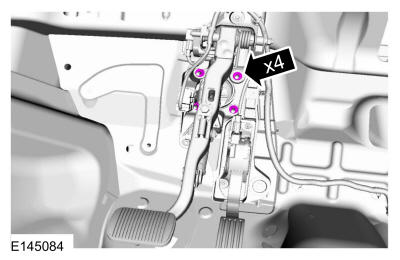

GFD357717Courtesy of FORD MOTOR COMPANY

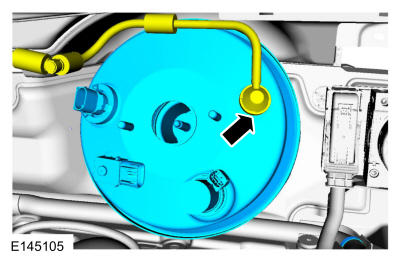

GFD357718Courtesy of FORD MOTOR COMPANY
