Brake Booster: Installation

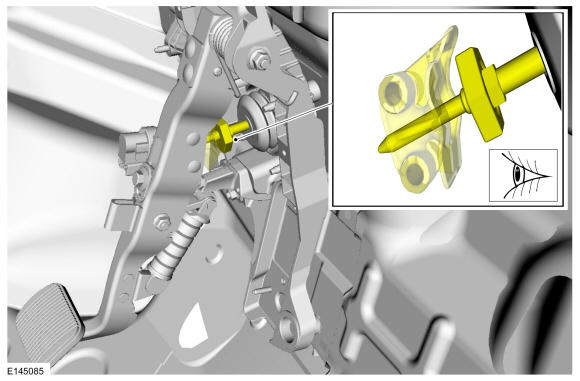

  1. NOTE: Make sure the brake booster rod is positioned correctly into the clevis block.

    To install, reverse the removal procedure.

  2. Visual Check.
GFD357708Courtesy of FORD MOTOR COMPANY
