Brake Pedal and Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Accelerator Pedal Position (APP) Sensor .
  2. Refer to: Stoplamp Switch .

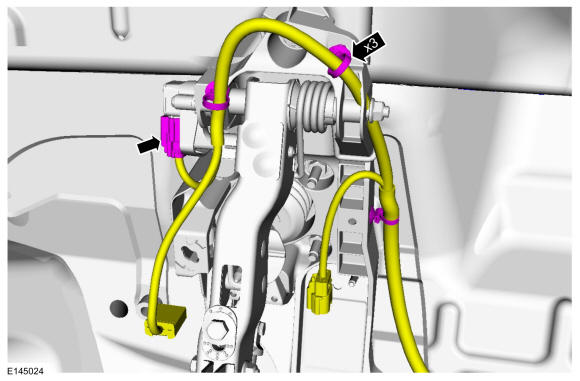

  3. GFD357706Courtesy of FORD MOTOR COMPANY

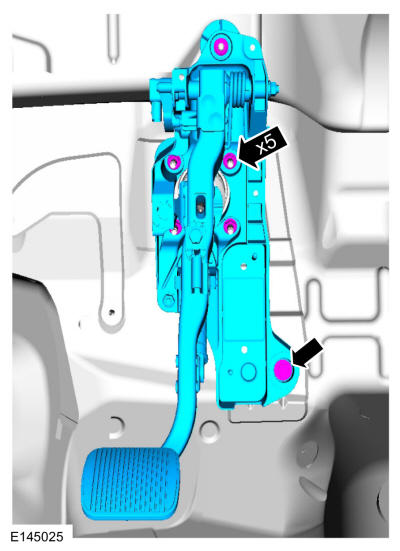

  4. Torque: 18 lb.ft (25 Nm)
GFD357707Courtesy of FORD MOTOR COMPANY
