Brake Master Cylinder: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Health and Safety Precautions .
  2. GFD357709Courtesy of FORD MOTOR COMPANY
  3. Torque: 18 lb.ft (25 Nm)

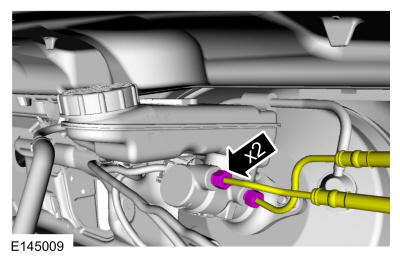

    GFD357710Courtesy of FORD MOTOR COMPANY
  4. Torque: 18 lb.ft (25 Nm)

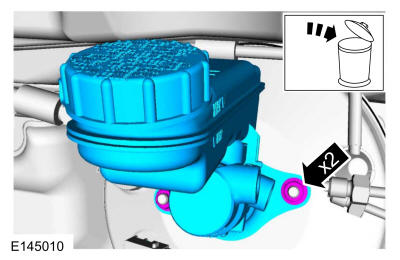

    GFD357711Courtesy of FORD MOTOR COMPANY
  5. Torque: 18 lb.ft (25 Nm)
GFD357712Courtesy of FORD MOTOR COMPANY
