Front Bumper: Installation

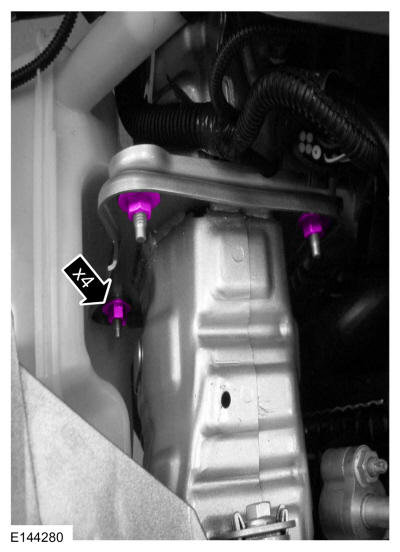

With the help of an assistant, position the front bumper on the vehicle, center the bumper plate on the mounting studs and install the retaining nuts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

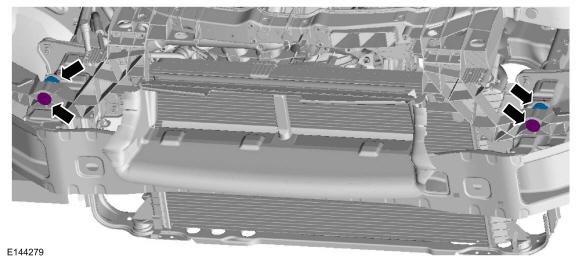

Install the grille reinforcement panel lower bolts and adjusters.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

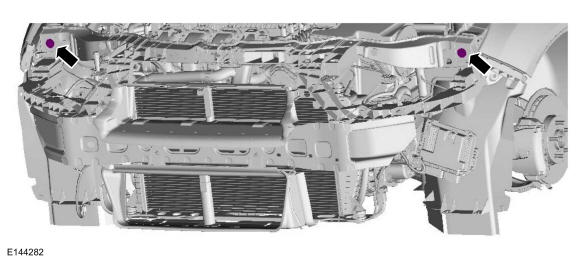

Install the grille reinforcement panel upper bolts.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

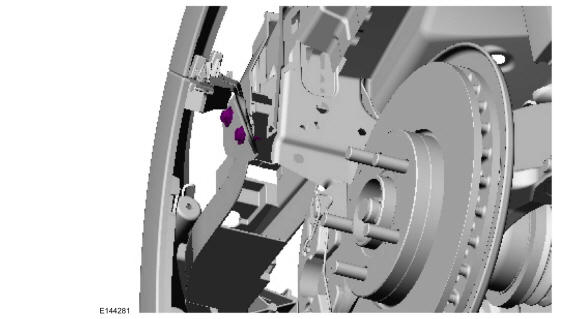

Install the forward fender bolts.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

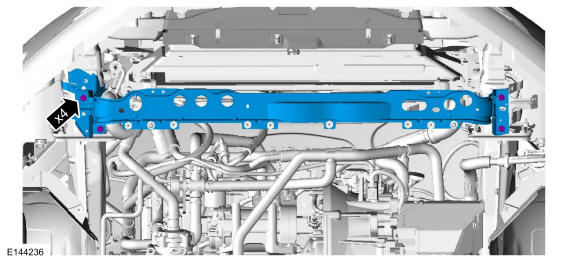

Install the lower radiator support.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

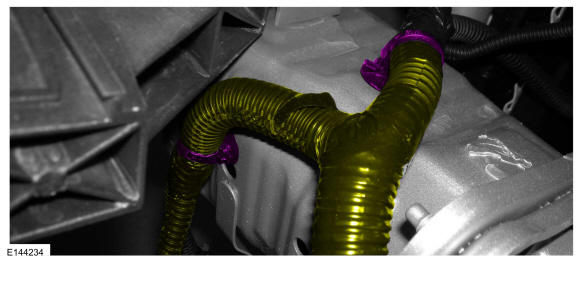

Install the horn wiring harness.

Courtesy of FORD MOTOR COMPANY

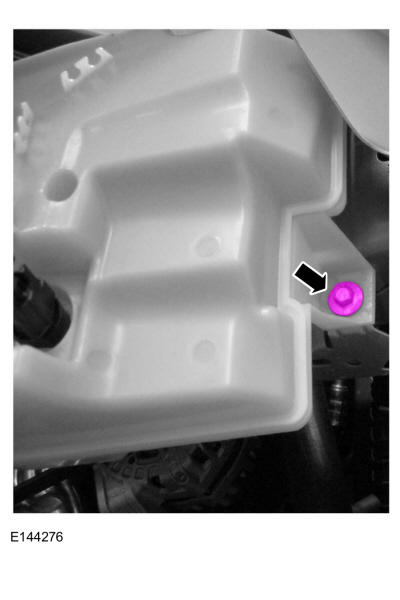

Install the forward washer reservoir bolt.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

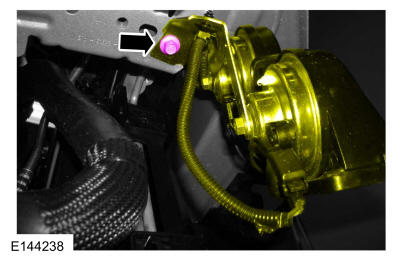

Install the horn assembly.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

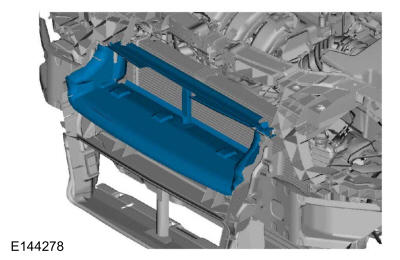

Install the upper radiator air deflector.

Courtesy of FORD MOTOR COMPANY

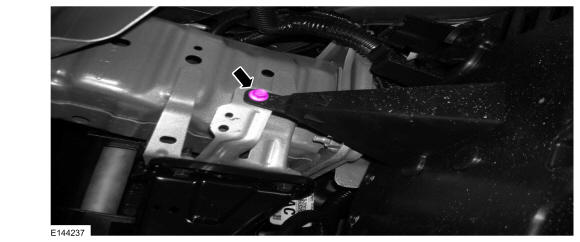

Install the forward PCM case bolt.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

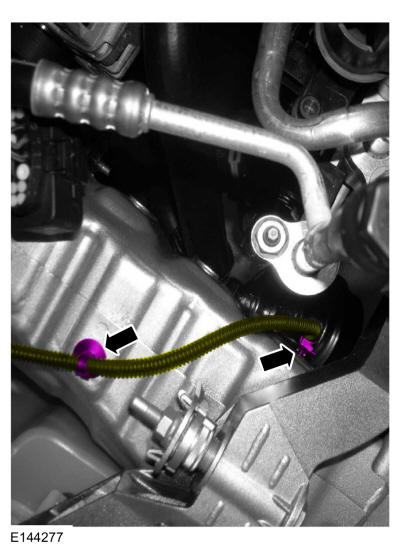

Install the LH lighting wire harness.

Courtesy of FORD MOTOR COMPANY
Install the front bumper cover. Refer to: Front Bumper Cover .
