Front Bumper Cover: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

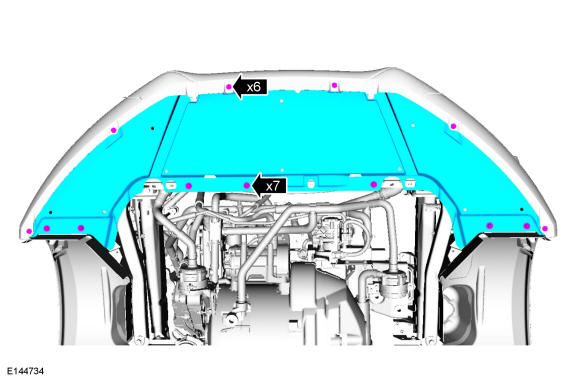

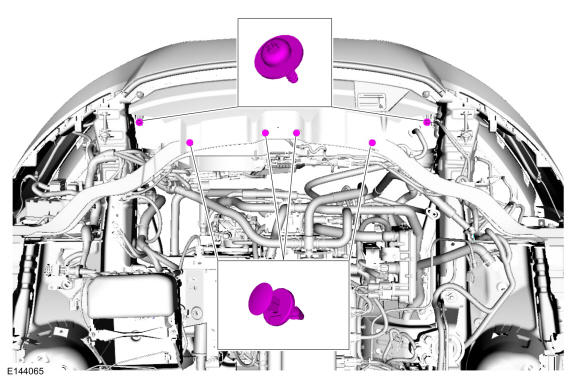

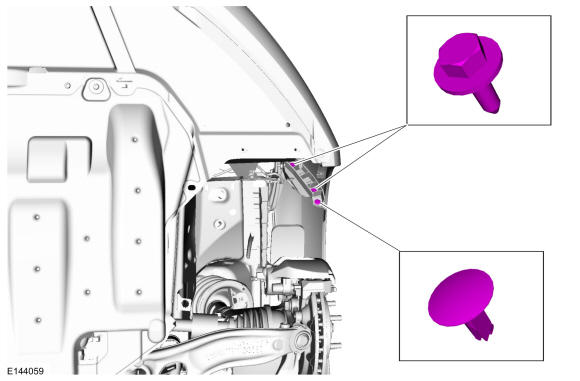

NOTE: Separate the lower radiator air deflectors from the front bumper cover.
On both sides.
Torque
: 27 lb.in (3 Nm)
- Remove the headlamp assemblies. Refer to: Headlamp Assembly .

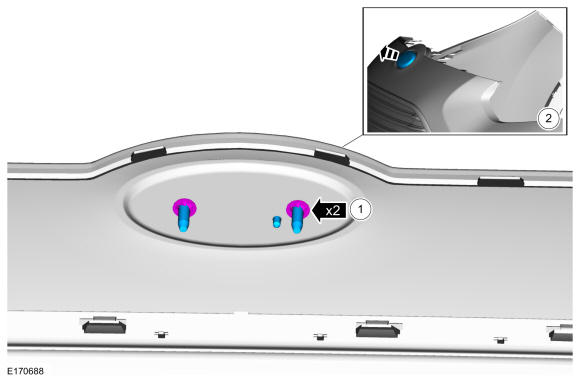

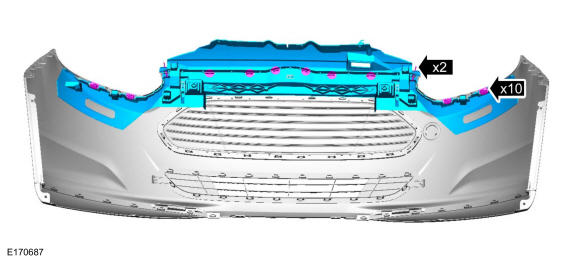

- Torque 35 lb.in (4 Nm)

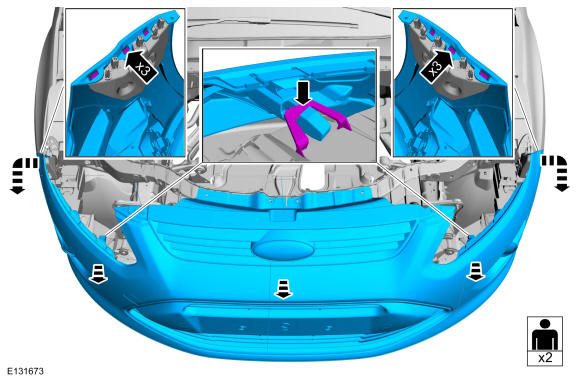

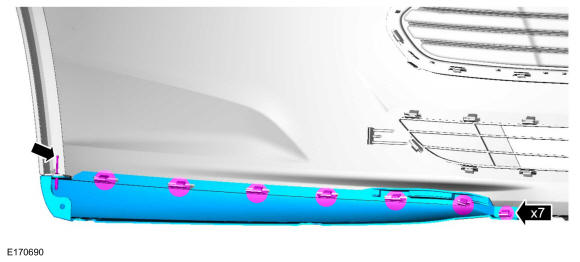

- On each side.

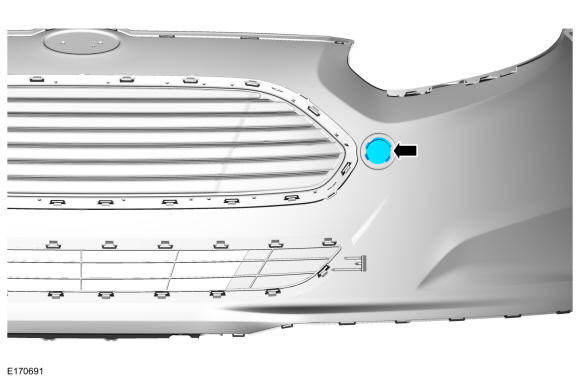

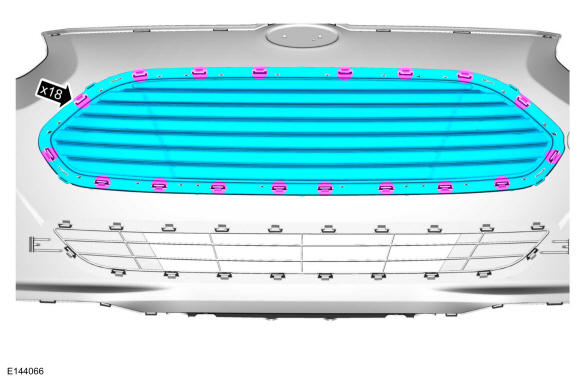

- If required.

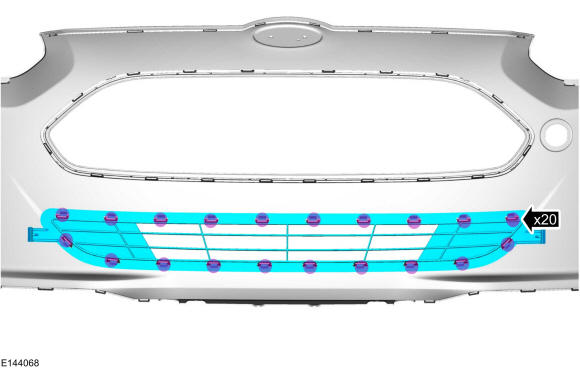

- If required.
